[DAIWA] Genuine Spare Parts for 22 CALDIA SW 10000-H Product code: 00065054 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5337

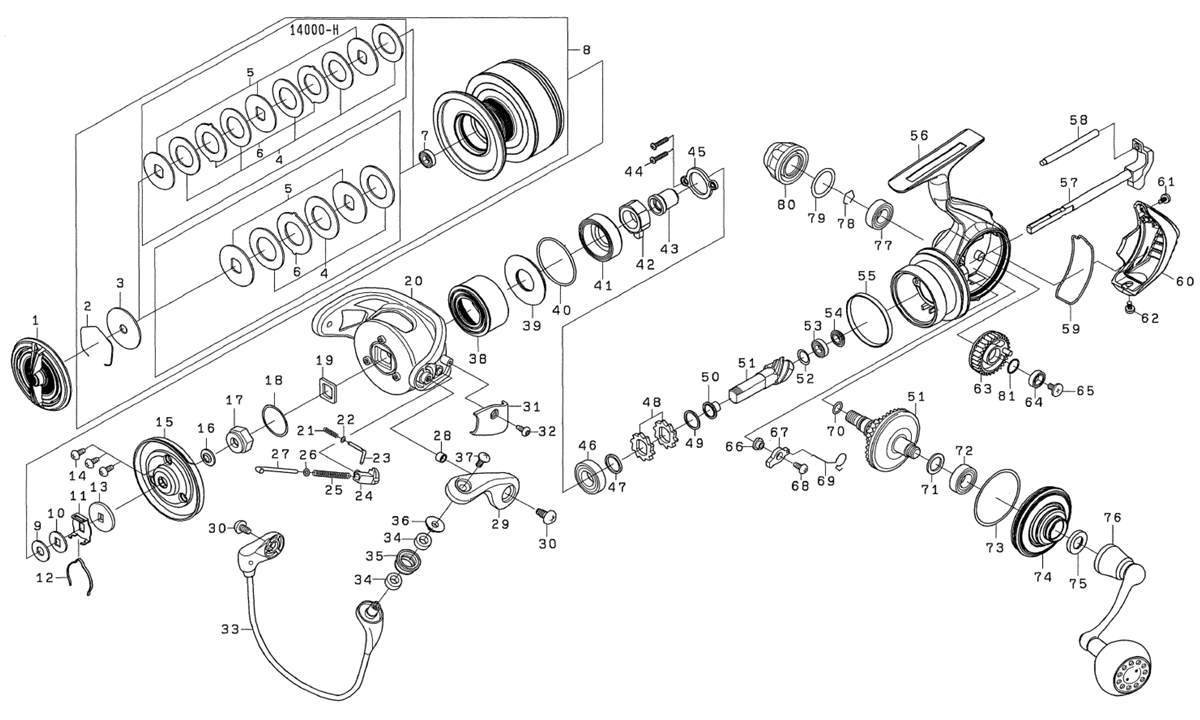

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	139832	24.20
2	DRAG RING	185063	2.20
3	DRAG DISK W (A)	142186	2.20
4	DRAG W SET (3 piece)	144223	29.70
5	DRAG DISK W (B)	142155	2.20
6	DRAG GRIP W	143073	2.20
7	SPOOL BALL BEARING	10E286	8.80
8	SPOOL (2-7)	128E82	127.60
9	SPOOL W (A)	190351	1.10
10	SPOOL W (B)	190040	1.10
11	CLICK HOLDER	116710	3.30
12	CLICKLEAF SP	181065	2.20
13	CLICK HOLDER W	190352	1.10
14	ROTOR COVER SC	10A652	2.20
15	ROTOR COVER	162264	6.60
16	ROTOR NUT PACKING	185264	2.20
17	ROTOR NUT	140419	6.60
18	ROTOR NUT O-RING	10J100	1.10
19	ROTOR NUT PLATE *Discontinued	160988	2.20
20	ROTOR *Cannot be ordered	188B54	36.30
21	ROTOR BRAKE SP	133867	2.20
22	ROTOR BRAKE W	190773	1.10
23	ROTOR BRAKE SHAFT	122140	3.30
24	ARM LEVER SP HOLDER	110114	2.20
25	ARM LEVER SP	133981	2.20
26	ARM LEVER SHAFT W	190153	1.10
27	ARM LEVER SHAFT	122167	2.20
28	ARM LEVER SC COLOR	110021	2.20
29	ARM LEVER	101473	12.10
30	ARM LEVER SC	10A521	2.20
31	ARM LEVER SP COVER	108A95	3.30
32	COVER SC	10A652	2.20
33	VEIL	164954	96.80
34	ROLLER COLLAR (A)	110028	6.60
35	LINE ROLLER	179156	8.80
36	ROLLER COLLAR (B)	110160	2.20
37	ROLLER SC	187060	2.20
38	MUG SHIELD CAP *Cannot be ordered	108B01	7.70
39	MAG SHIELD PLATE *Cannot be ordered	114156	23.10
40	MAG SHIELD PLATE O RING	10J195	1.10
41	MAG SHIELD PLATE COLOR	110B86	2.20
42	ONE WAY CLUTCH *Cannot be ordered	114116	26.40
43	CLUTCH RING *Cannot be ordered	110B88	18.70
44	PINION BEARING PLATE SC	10A147	2.20
45	PINION BEARING PLATE	182272	2.20
46	PINION BALL BEARING (A)	10E299	8.80
47	PINION BEARING (A) W	190851	1.10
48	RATCHET	180075	2.20
49	RATCHET W	190851	1.10
50	PINION COLOR (A)	110B85	2.20
51	PINION + DRIVE GEAR SET *Cannot be ordered	138C77	67.10
52	PINION BEARING (B) SP/W	190749	1.10
53	PINION BALL BEARING (B)	10E361	15.40
54	PINION COLOR (B)	110164	2.20
55	BRAKE RING	10J105	1.10
56	BODY *Cannot be ordered	166B93	56.10
57	MAIN SHAFT *Cannot be ordered	171616	18.70
58	OSCILLATING POST	155542	2.20
59	REAR CAP PACKING	185281	3.30
60	REAR CAP	116871	6.60
61	REAR CAP SC (A)	10AB62	2.20
62	REAR CAP SC (B)	10AB63	2.20
63	OSCILLATING GEAR	106152	7.70
64	OSCILLATING GEAR BALL BEARING	10E348	8.80
65	OSCILLATING GEAR SC	10A922	2.20
66	STOPPER COLLAR	110823	2.20
67	STOPPER	127268	3.30
68	STOPPER SC	158006	2.20
69	STOPPER LEAF SP	133982	2.20
70	DRIVE GEAR O-RING	10J156	1.10
71	DRIVE W	190928	1.10
72	DRIVE BALL BEARING (A)	10E263	8.80
73	ENGINE PLATE O-RING	10J182	1.10
74	ENGINE PLATE *Cannot be ordered	168C37	36.30
75	HANDLE PACKING	185275	2.20
76	HANDLE	1H2C54	115.50
77	DRIVE BALL BEARING (B)	10E263	8.80
78	DRIVE BEARING RING	185213	2.20
79	HANDLE CAP O-RING	10J127	1.10
80	HANDLE CAP	116851	17.60
81	OSCILLATING GEAR BEARING W	190041	1.10
200	HANDLE KNOB W	190455	1.10
201	HANDLE KNOB COLOR	10E081	4.40
202	HANDLE KNOB	1H1843	42.90
203	HANDLE KNOB SC	187049	2.20
204	HANDLE KNOB CAP COLOR	116877	11.00
205	HANDLE KNOB CAP (WITH O-RING)	116569	17.60
206	HANDLE KNOB CAP O-RING	10J083	1.10
