[DAIWA] Genuine Spare Parts for 22 CALDIA SW 5000D-CXH Product code: 00065050 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5337

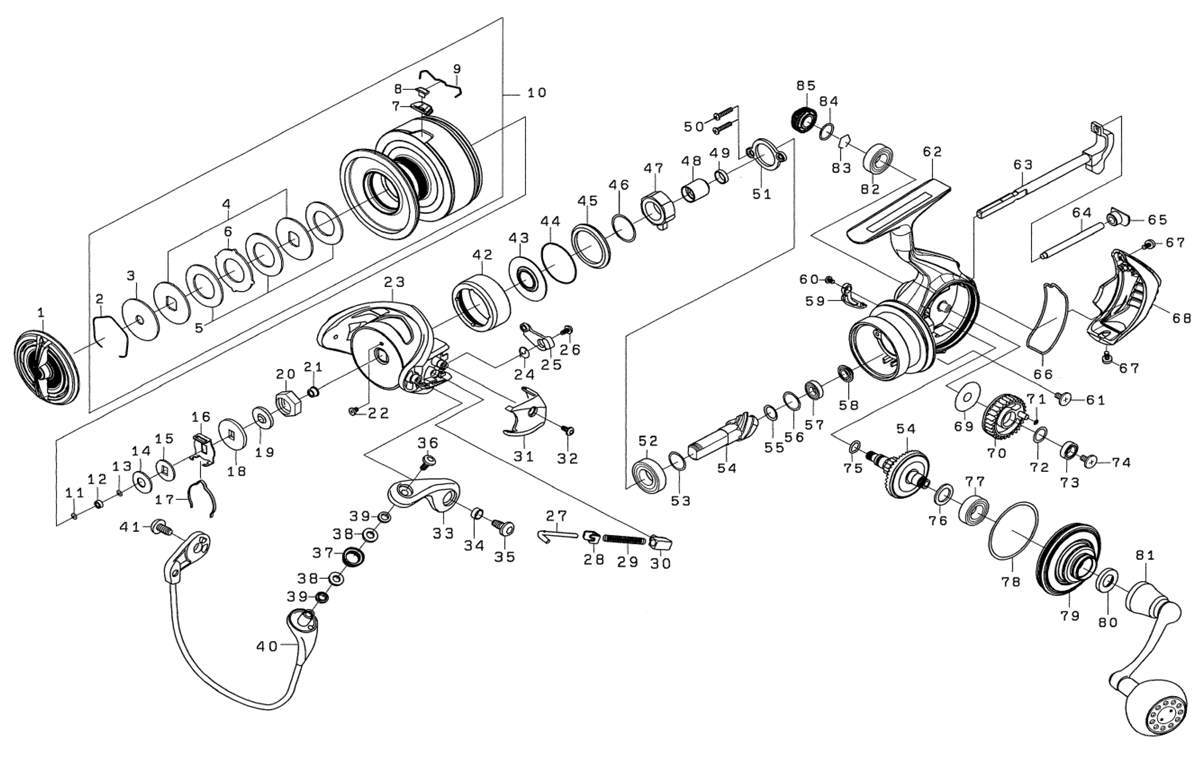

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	139830	24.20
2	DRAG RING	185228	2.20
3	DRAG DISK W (A)	142188	2.20
4	DRAG DISK W (B)	142165	2.20
5	DRAG W SET (3 piece)	144269	29.70
6	DRAG GRIP W	190A37	2.20
7	LINE STOPPER PLATE	160A56	2.20
8	LINE STOPPER	177080	2.20
9	LINE STOPPER SP	133996	2.20
10	SPOOL (2-9)	128E87	115.50
11	SPOOL BALL BEARING W (A)	190B96	1.10
12	SPOOL BALL BEARING	10E295	8.80
13	SPOOL BALL BEARING W (B)	190589	1.10
14	SPOOL W (A)	190602	1.10
15	SPOOL W (B)	190367	1.10
16	CLICK HOLDER	116819	2.20
17	CLICKLEAF SP	133857	2.20
18	CLICK HOLDER W	190A93	1.10
19	ROTOR NUT PACKING	185203	3.30
20	ROTOR NUT	140421	6.60
21	ROTOR NUT COLLAR	110C06	4.40
22	ROTOR NUT SC	10A748	2.20
23	ROTOR *Cannot be ordered	188B52	36.30
24	KICK LEVER SP	133861	2.20
25	KICK LEVER	111150	4.40
26	KICK LEVER SC	10A870	2.20
27	ARM LEVER SHAFT	122137	2.20
28	ARM LEVER SHAFT PLATE	160716	3.30
29	ARM LEVER SP	133944	2.20
30	ARM LEVER SP HOLDER	110300	2.20
31	ARM LEVER SP COVER	108095	3.30
32	COVER SC	10A871	2.20
33	ARM LEVER	101471	12.10
34	ARM LEVER SC COLOR	110012	2.20
35	ARM LEVER SC	10A872	2.20
36	ROLLER SC	187082	2.20
37	LINE ROLLER	179134	7.70
38	ROLLER COLLAR (B)	191061	2.20
39	ROLLER COLLAR (A)	110017	2.20
40	VEIL	164843	35.20
41	VEIL HOLDER SC	10A872	2.20
42	MUG SHIELD CAP *Cannot be ordered	108A97	15.40
43	MAG SHIELD PLATE *Cannot be ordered	114144	23.10
44	MAG SHIELD PLATE O RING	10J181	1.10
45	MAG SHIELD PLATE COLOR	110B16	2.20
46	ONE-WAY CLUTCH W	190A44	1.10
47	ONE WAY CLUTCH *Cannot be ordered	114149	26.40
48	CLUTCH RING *Cannot be ordered	110A59	7.70
49	CLUTCH RING COLLAR	110A45	2.20
50	PINION BEARING PLATE SC	10A051	2.20
51	PINION BEARING PLATE	182284	2.20
52	PINION BALL BEARING (A)	10E323	8.80
53	PINION BEARING (A) W	190137	1.10
54	PINION + DRIVE GEAR SET *Cannot be ordered	138C76	58.30
55	PINION BEARING (B) SP/W	190A79	1.10
56	PINION BEARING (B) W	193014	1.10
57	PINION BALL BEARING (B)	10E356	15.40
58	PINION COLOR *Cannot be ordered	110A43	3.30
59	VEIL KICK COLLAR	110038	2.20
60	VEIL KICK COLOR SC (A)	10AB59	2.20
61	VEIL KICK COLOR SC (B)	10AB60	2.20
62	BODY *Cannot be ordered	166B91	48.40
63	MAIN SHAFT *Cannot be ordered	171618	18.70
64	OSCILLATING POST	155307	2.20
65	OSCILLATING POST COLOR	110B83	2.20
66	REAR CAP PACKING	185279	3.30
67	REAR CAP SC	10AB61	2.20
68	REAR CAP	116873	6.60
69	OSCILLATING GEAR W	190958	1.10
70	OSCILLATING GEAR *Cannot be ordered	106176	9.90
71	OSCILLATING GEAR O-RING	10J062	1.10
72	OSCILLATING GEAR BEARING W	190854	1.10
73	OSCILLATING GEAR BALL BEARING	10E295	8.80
74	OSCILLATING GEAR SC	10A876	2.20
75	DRIVE GEAR O-RING	10J071	1.10
76	DRIVE W	190510	1.10
77	DRIVE BALL BEARING (A)	10E210	8.80
78	ENGINE PLATE O-RING	10J167	1.10
79	ENGINE PLATE *Cannot be ordered	168C38	36.30
80	HANDLE PACKING	185181	2.20
81	HANDLE	1H2C46	103.40
82	DRIVE BALL BEARING (B)	10E381	8.80
83	DRIVE BEARING RING	185116	2.20
84	HANDLE CAP O-RING	185077	2.20
85	HANDLE CAP	151217	4.40
200	HANDLE KNOB W	190196	1.10
201	HANDLE KNOB COLOR	110411	2.20
202	HANDLE KNOB	1H1479	29.70
203	HANDLE KNOB SC	10A333	2.20
204	HANDLE KNOB CAP (WITH O-RING)	116876	17.60
205	HANDLE KNOB CAP O-RING	10J083	1.10
