[DAIWA] Genuine Spare Parts for 18 FREAMS LT2500S-DH Product code: 00057050 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

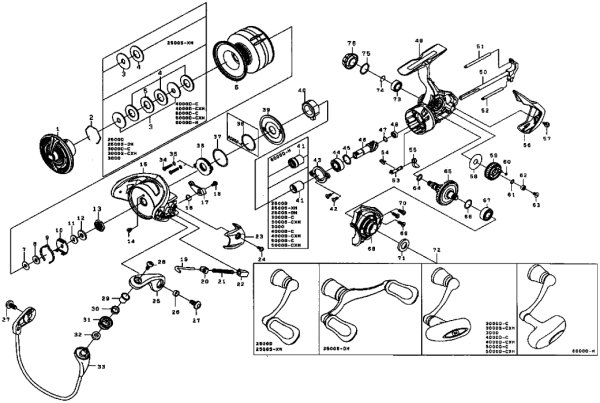

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	139761	12.10
2	DRAG RING	185237	2.20
3	DRAG DISC W	142165	2.20
4	DRAG W SET (3 piece)	144225	19.80
5	DRAG GRIP W	143091	2.20
6	SPOOL (2-6)	128B98	56.10
7	SPOOL W (A)	190602	1.10
8	SPOOL W (B)	190A49	1.10
9	CLICKLEAF SP	133A50	2.20
10	CLICK HOLDER	116819	2.20
11	CLICK HOLDER W	190A50	1.10
12	ROTOR NUT PACKING	185203	3.30
13	ROTOR NUT	140333	3.30
14	ROTOR NUT SC	10A748	2.20
15	ROTOR *Cannot be ordered	188A50	16.50
16	KICK LEVER SP	133861	2.20
17	KICK LEVER	111177	3.30
18	KICK LEVER SC	10A870	2.20
19	ARM LEVER SHAFT	122635	2.20
20	ARM LEVER SHAFT PLATE	160716	3.30
21	ARM LEVER SP	133999	2.20
22	ARM LEVER SP HOLDER	110056	2.20
23	ARM LEVER SP COVER	108A32	3.30
24	COVER SC	10AA13	2.20
25	ARM LEVER	101428	6.60
26	ARM LEVER SC COLOR	110055	2.20
27	ARM LEVER SC	10AA14	2.20
28	ROLLER SC	152124	2.20
29	ROLLER COLLAR (A)	191030	2.20
30	ROLLER COLLAR (B)	191029	2.20
31	LINE ROLLER	179144	7.70
32	ROLLER COLLAR (C)	191065	2.20
33	VEIL	164893	24.20
34	MAG SHIELD PLATE SC	10A741	2.20
35	PLATE SC/W	190621	1.10
36	MAG SHIELD PLATE *Cannot be ordered	114122	23.10
37	MAG SHIELD PLATE O RING	10J143	1.10
39	MUG SHIELD CAP *Cannot be ordered	108132	3.30
40	ONE WAY CLUTCH *Cannot be ordered	114119	26.40
41	CLUTCH RING *Cannot be ordered	110A62	6.60
42	PINION BEARING PLATE SC	10A059	2.20
43	PINION BEARING PLATE	182269	2.20
44	PINION BALL BEARING (A)	10E210	8.80
45	PINION BALL BEARING (A) W	190137	1.10
46	PINION *Cannot be ordered	154659	6.60
47	PINION BALL BEARING (B) W	190014	1.10
48	PINION BALL BEARING (B)	10E337	8.80
49	BODY *Cannot be ordered	166A48	26.40
50	MAIN SHAFT *Cannot be ordered	171552	8.80
51	OSCILLATING POST (A)	155339	2.20
52	OSCILLATING POST (B)	155338	2.20
53	STOPPER CAM	194186	2.20
54	STOPPER CAM LEAF SP	133886	2.20
55	STOPPER LEVER	196408	2.20
56	REAR CAP	116752	4.40
57	REAR CAP SC	10AA13	2.20
58	OSCILLATING GEAR W	190958	1.10
59	OSCILLATING GEAR	106138	3.30
60	OSCILLATING GEAR O-RING	10J113	1.10
61	OSCILLATING GEAR BEARING W	190854	1.10
62	OSCILLATING GEAR BALL BEARING	10E295	8.80
63	OSCILLATING GEAR SC	10A058	2.20
64	DRIVE GEAR O-RING	10J071	1.10
65	DRIVE GEAR *Cannot be ordered	138988	12.10
66	DRIVE W	190136	1.10
67	DRIVE BALL BEARING (A)	10E210	8.80
68	BODY COVER	168A56	15.40
69	BODY COVER SC (A)	10AA15	2.20
70	BODY COVER SC (B)	10AA16	2.20
71	HANDLE PACKING	185206	3.30
72	HANDLE	1H2A77	72.60
73	DRIVE BALL BEARING (B)	10E381	8.80
74	DRIVE BEARING RING	185116	2.20
75	HANDLE CAP O-RING	185077	2.20
76	HANDLE CAP	151210	4.40
77	ONE-WAY CLUTCH W	190A44	1.10
200	HANDLE KNOB W	190196	1.10
201	HANDLE KNOB COLOR	110411	2.20
202	HANDLE KNOB	1H1711	17.60
203	HANDLE KNOB SC	10A333	2.20
204	HANDLE KNOB CAP	116756	2.20
300	LINE STOPPER	177082	2.20
301	LINE STOPPER PLATE	160B28	2.20
302	LINE STOPPER SPRING	133A01	2.20
