[DAIWA] Genuine Spare Parts for 19 BALLISTIC FW LT1000S-P Product code: 00065110 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4516

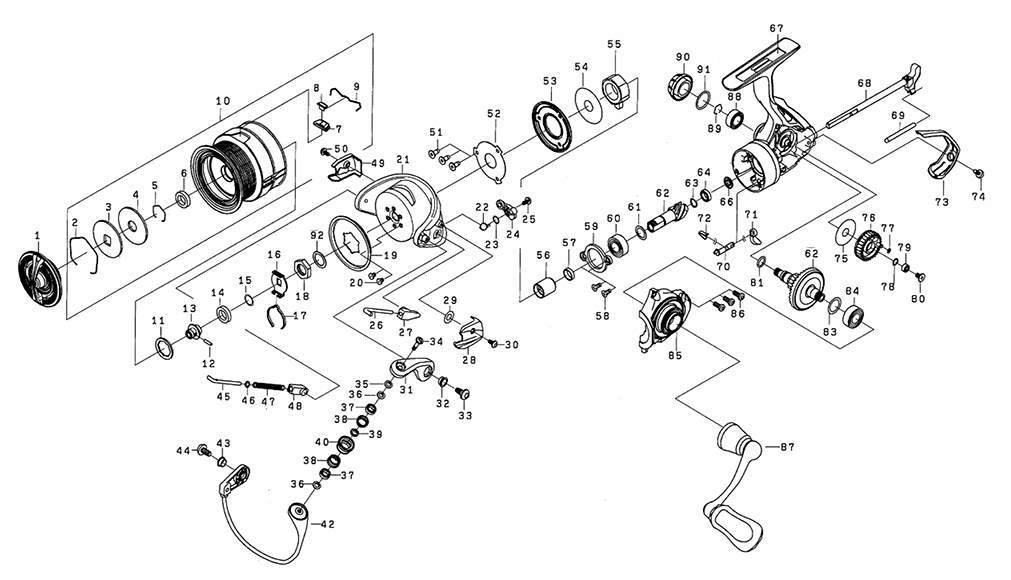

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOBS | 139764 | 16.50 |
2 | DRAG RINGS | 185228 | 2.20 |
3 | DRAG DISK W | 142165 | 2.20 |
4 | DRAG W | 144226 | 6.60 |
5 | SPOOL COLLAR RING | 185016 | 2.20 |
6 | SPOOL COLLAR | 110A39 | 2.20 |
7 | LINE STOPPER PLATE | 160A55 | 2.20 |
8 | LINE STOPPER | 177080 | 2.20 |
9 | LINE STOPPER SP | 133996 | 2.20 |
10 | SPOOL (2-9) | 128D06 | 121.00 |
11 | SPOOL METAL W | 190A61 | 1.10 |
12 | SPOOL METAL SC | 10AA03 | 2.20 |
13 | SPOOL METAL | 132132 | 9.90 |
14 | SPOOL METAL COLLAR | 110925 | 2.20 |
15 | SPOOL W | 190A34 | 1.10 |
16 | CLICK HOLDER | 116819 | 2.20 |
17 | CLICK LEAF SP | 133A50 | 2.20 |
18 | ROTOR NUT | 140308 | 2.20 |
19 | ROTOR COVER | 162174 | 3.30 |
20 | ROTOR COVER SC | 10A748 | 2.20 |
21 | ROTOR *Cannot be ordered | 188A88 | 36.30 |
22 | KICK LEVER SP | 133965 | 2.20 |
23 | KICK LEVER W *Not available | 190057 | 1.10 |
24 | KICK LEVER | 111159 | 8.80 |
25 | KICK LEVER SC | 10A870 | 2.20 |
26 | ARM LEVER SHAFT | 122166 | 3.30 |
27 | ARM LEVER SHAFT HOLDER | 110118 | 2.20 |
28 | ARM LEVER COVER | 108126 | 6.60 |
29 | ARM LEVER COVER W | 190673 | 1.10 |
30 | ARM LEVER COVER SC | 10A082 | 2.20 |
31 | ARM LEVER | 101448 | 15.40 |
32 | ARM LEVER SC COLLAR | 110123 | 2.20 |
33 | ARM LEVER SC | 10A081 | 2.20 |
34 | ROLLER SC | 187088 | 3.30 |
35 | ROLLER W | 190562 | 1.10 |
36 | ROLLER COLLAR (A) | 110A88 | 2.20 |
37 | ROLLER BALL BEARING | 10E400 | 15.40 |
38 | ROLLER COLLAR (B) | 191070 | 3.30 |
39 | ROLLER COLLAR (C) | 110119 | 2.20 |
40 | LINE ROLLER *Cannot be ordered | 179151 | 8.80 |
42 | BAIL *Cannot be ordered | 164919 | 60.50 |
43 | BAIL HOLDER SC COLLAR | 110123 | 2.20 |
44 | BAIL HOLDER SC | 10A081 | 2.20 |
45 | BAIL SHAFT | 122127 | 3.30 |
46 | BAIL SHAFT W | 190773 | 1.10 |
47 | BAIL SHAFT SP | 133961 | 2.20 |
48 | BAIL SHAFT SP HOLDER | 110623 | 2.20 |
49 | BAIL HOLDER COVER | 108125 | 6.60 |
50 | BALE HOLDER COVER SC | 10A082 | 2.20 |
51 | SHIELD PLATE SC | 10A199 | 2.20 |
52 | SHIELD PLATE | 160A59 | 2.20 |
53 | SHIELD CAP *Cannot be ordered | 108A06 | 4.40 |
54 | ONE-WAY CLUTCH W | 190A44 | 1.10 |
55 | ONE-WAY CLUTCH *Cannot be ordered | 114119 | 26.40 |
56 | CLUTCH RING *Cannot be ordered | 110A59 | 7.70 |
57 | CLUTCH RING COLLAR | 110A37 | 2.20 |
58 | PINION BEARING PLATE SC | 10A778 | 2.20 |
59 | PINION BEARING PLATE | 182277 | 2.20 |
60 | PINION BALL BEARING (A) | 10E210 | 8.80 |
61 | PINION BEARING (A) W | 190137 | 1.10 |
62 | PINION + DRIVE GEAR SET *Cannot be ordered | 138B04 | 108.90 |
63 | PINION BEARING (B) SP・W | 190A36 | 1.10 |
64 | PINION BALL BEARING (B) | 10E337 | 8.80 |
66 | PINION COLLAR | 110A10 | 3.30 |
67 | BODY | 166B14 | 57.20 |
68 | MAIN SHAFT *Cannot be ordered | 171544 | 34.10 |
69 | OSCILLATING POST | 155554 | 2.20 |
70 | STOPPER CAM | 194178 | 3.30 |
71 | STOPPER LEVER | 196390 | 2.20 |
72 | STOPPER CAM SP | 133886 | 2.20 |
73 | REAR CAP | 116742 | 3.30 |
74 | REAR CAP SC | 10A196 | 2.20 |
75 | OSCILLATING GEAR W | 190977 | 1.10 |
76 | OSCILLATING GEAR O-RING *Cannot be ordered | 106155 | 4.40 |
77 | OSCILLATING GEAR O-RING | 10J068 | 1.10 |
78 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
79 | OSCILLATING GEAR BALL BEARING | 10E295 | 8.80 |
80 | OSCILLATING GEAR SC | 10A779 | 2.20 |
81 | DRIVE GEAR O-RING | 10J071 | 1.10 |
83 | DRIVE W | 190509 | 1.10 |
84 | DRIVE BALL BEARING (A) | 10E210 | 8.80 |
85 | BODY COVER | 168B30 | 24.20 |
86 | BODY COVER SC | 10A197 | 2.20 |
87 | HANDLE | 1H2B43 | 72.60 |
88 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
89 | DRIVE BEARING RING | 185116 | 2.20 |
90 | HANDLE CAP | 151202 | 4.40 |
91 | HANDLE CAP O-RING | 185077 | 2.20 |
92 | ROTOR NUT W | 190A29 | 1.10 |
200 | HANDLE KNOB W | 190196 | 1.10 |
201 | HANDLE KNOB COLLAR | 110411 | 2.20 |
202 | HANDLE KNOB | 1H1667 | 24.20 |
203 | HANDLE KNOB SC | 10A333 | 2.20 |
204 | HANDLE KNOB CAP | 116725 | 6.60 |
