[DAIWA] Genuine Spare Parts for 17 EMERALDAS MX 2508PE-H-DH Product code: 00056034 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4087

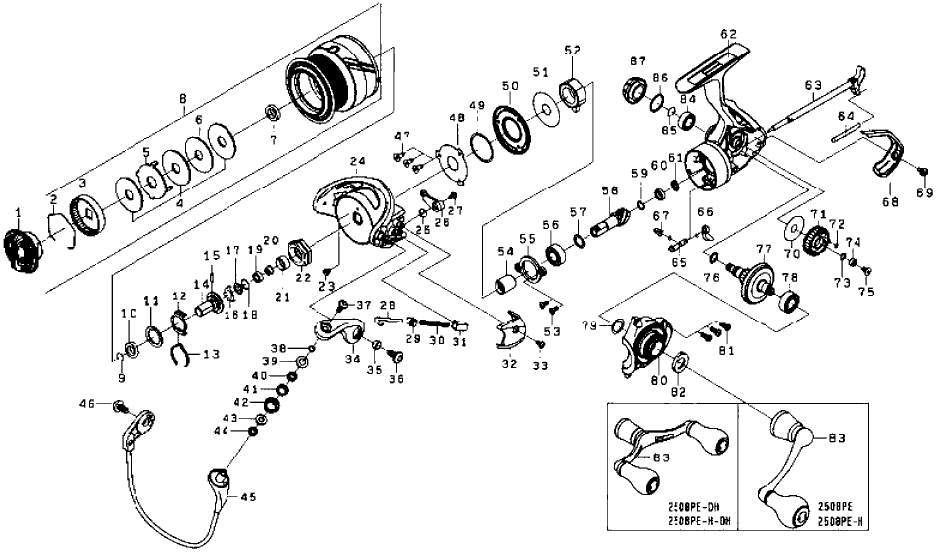

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOBS	139740	15.40
2	DRAG RINGS	185059	2.20
3	DRAG RATCHET	180158	7.70
4	DRAG W SET (3 piece)	144191	19.80
5	DRAG LIP W	190487	1.10
6	DRAG DISC W	142074	2.20
7	DRAG COLLAR	110925	2.20
8	SPOOL (2-8)	128B72	106.70
9	SPOOL METAL RING	185116	2.20
10	SPOOL METAL COLLAR	110925	2.20
11	SPOOL W	190976	1.10
12	CLICK HOLDER	116512	2.20
13	CLICK LEAF SP	133857	2.20
14	SPOOL METAL	132129	7.70
15	SPOOL METAL PIN	156139	2.20
16	ROTOR NUT PLATE	160455	2.20
17	ROTOR NUT PACKING	185162	2.20
18	ROTOR NUT BEARING W	134008	2.20
19	ROTOR NUT BALL BEARING	10E378	15.40
20	ROTOR NUT BEARING COLLAR	110A13	3.30
21	ROTOR NUT COLLAR	110059	3.30
22	ROTOR NUT	140328	8.80
23	ROTOR NUT SC	10A748	2.20
24	ROTOR *Cannot be ordered	188072	23.10
25	KICK LEVER SP	133861	2.20
26	KICK LEVER	111145	4.40
27	KICK LEVER SC	10A870	2.20
28	ARM LEVER SHAFT	122141	2.20
29	ARM LEVER SHAFT PLATE	160716	3.30
30	ARM LEVER SP	133864	2.20
31	ARM LEVER SP HOLDER	110871	2.20
32	ARM LEVER SP COVER	108091	3.30
33	COVER SC	10A871	2.20
34	ARM LEVER	101368	6.60
35	ARM LEVER SC COLLAR	110012	2.20
36	ARM LEVER SC	10A872	2.20
37	ROLLER SC	187082	2.20
38	ROLLER COLLAR (A)	110011	2.20
39	ROLLER PACKING	185136	3.30
40	ROLLER BALL BEARING	10E353	12.10
41	ROLLER COLLAR (B)	110010	2.20
42	LINE ROLLER	179134	7.70
43	ROLLER COLLAR (C)	191061	2.20
44	ROLLER COLLAR (D)	110017	2.20
45	BAIL	164840	35.20
46	BAIL HOLDER SC	10A872	2.20
47	MAG SHIELD PLATE SC	10A199	2.20
48	MAG SHIELD PLATE *Cannot be ordered	114123	23.10
49	MAG SHIELD PLATE O-RING	10J143	1.10
50	MAG SHIELD CAP *Cannot be ordered	108A07	4.40
51	ONE-WAY CLUTCH W	190A44	1.10
52	ONE-WAY CLUTCH *Cannot be ordered	114119	26.40
53	PINION BEARING PLATE SC	10A778	2.20
54	CLUTCH RING *Cannot be ordered	110A62	6.60
55	PINION BEARING PLATE	182244	2.20
56	PINION BALL BEARING (A)	10E210	8.80
57	PINION BEARING (A) W	190137	1.10
58	PINION + DRIVE GEAR SET *Cannot be ordered	138953	52.80
59	PINION BEARING (B) SP・W	190014	1.10
60	PINION BALL BEARING (B)	10E337	8.80
61	PINION COLLAR	110A10	3.30
62	BODY *Cannot be ordered	166301	39.60
63	MAIN SHAFT *Cannot be ordered	171526	23.10
64	OSCILLATING POST	155557	2.20
65	STOPPER CAM	194178	3.30
66	STOPPER LEVER	196390	2.20
67	STOPPER CAM LEAF SP	133886	2.20
68	REAR CAP	116721	3.30
69	REAR CAP SC	10A196	2.20
70	OSCILLATING GEAR W	190958	1.10
71	OSCILLATING GEAR O-RING *Cannot be ordered	106130	4.40
72	OSCILLATING GEAR O-RING	10J113	1.10
73	OSCILLATING GEAR BEARING W	190854	1.10
74	OSCILLATING GEAR BALL BEARING	10E295	8.80
75	OSCILLATING GEAR SC	10A779	2.20
76	DRIVE GEARINGS	10J071	1.10
77	PINION + DRIVE GEAR SET *Cannot be ordered	138953	52.80
78	DRIVE BALL BEARING	10E210	8.80
79	DRIVE W	190752	1.10
80	BODY COVER	168A46	34.10
81	BODY COVER SC	10A197	2.20
82	HANDLE PACKING	185181	2.20
83	HANDLE	1H2A52	113.30
84	DRIVE BALL BEARING	10E381	8.80
85	DRIVE BEARING RING	185116	2.20
86	HANDLE CAP O-RING	185077	2.20
87	HANDLE CAP	151202	4.40
201	HANDLE KNOB W	190196	1.10
202	HANDLE KNOB COLLAR	110411	2.20
203	HANDLE KNOB	1H1491	15.40
204	HANDLE KNOB SC	10A333	2.20
205	HANDLE KNOB CAP (WITH O-RING)	116646	12.10
