[DAIWA] Genuine Spare Parts for 20 LUVIAS LT4000-CXH Product code: 00060212 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 20 LUVIAS LT4000-CXH Product code: 00060212 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4792

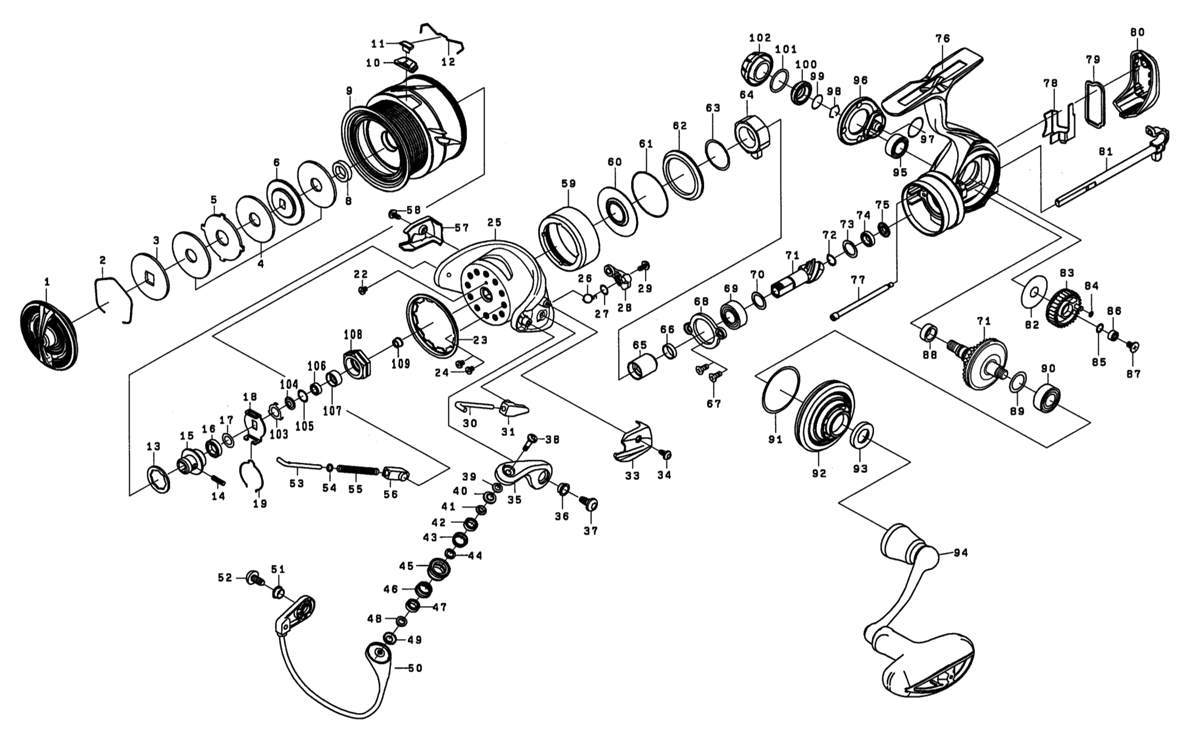

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139768 16.50
2 DRAG RING 185228 2.20
3 DRAG DISC W 142165 2.20
4 DRAG W SET (3 piece) 144225 19.80
5 DRAG GRIP W 142167 2.20
6 DRAG DISC W 190A37 2.20
8 SPOOL COLLAR 110A39 2.20
9 SPOOL (2-12) 128D74 133.10
10 LINE STOPPER PLATE 160A56 2.20
11 LINE STOPPER 177080 2.20
12 LINE STOPPER SP 133996 2.20
13 SPOOL METAL W 190A35 1.10
14 SPOOL METAL SC 10AA03 2.20
15 SPOOL METAL 132133 9.90
16 SPOOL METAL COLOR 110925 2.20
17 SPOOL W 190A34 1.10
18 CLICK HOLDER 116819 2.20
19 CLICKLEAF SP 133857 2.20
22 ROTOR NUT SC 10A748 2.20
23 ROTOR COVER 162173 3.30
24 ROTOR COVER SC 10A748 2.20
25 ROTOR *Cannot be ordered 188A96 55.00
26 KICK LEVER SP 133966 2.20
27 KICK LEVER W 190057 1.10
28 KICK LEVER 111173 8.80
29 KICK LEVER SC 10A870 2.20
30 ARM LEVER SHAFT 122165 3.30
31 ARM LEVER SHAFT HOLDER 110117 2.20
33 ARM LEVER COVER 108A73 7.70
34 ARM LEVER COVER SC 10A082 2.20
35 ARM LEVER 101448 15.40
36 ARM LEVER SC COLOR 110123 2.20
37 ARM LEVER SC 10A081 2.20
38 ROLLER SC 187088 3.30
39 ROLLER W 190562 1.10
40 ROLLER PACKING 185229 1.10
41 ROLLER COLLAR (A) 110A26 2.20
42 ROLLER BALL BEARING (E) 10E400 15.40
43 ROLLER COLLAR (B) 191070 3.30
44 ROLLER COLLAR (C) 110119 2.20
45 LINE ROLLER *Cannot be ordered 179151 8.80
46 ROLLER COLLAR (B) 191070 3.30
47 ROLLER BALL BEARING (E) 10E400 15.40
48 ROLLER COLLAR (A) 110A26 2.20
49 ROLLER PACKING 185229 1.10
50 VEIL *Cannot be ordered 164921 60.50
51 VEIL HOLDER SC COLOR 110123 2.20
52 VEIL HOLDER SC 10A081 2.20
53 BALE SHAFT 122102 2.20
54 VEIL SHAFT W 190773 1.10
55 VEIL SHAFT SP 133747 2.20
56 VEIL SHAFT SP HOLDER 110628 2.20
57 BALE HOLDER COVER 108A74 7.70
58 VEIL HOLDER COVER SC 10A082 2.20
59 MUG SHIELD CAP *Cannot be ordered 108A78 8.80
60 MAG SHIELD PLATE *Cannot be ordered 114144 23.10
61 MAG SHIELD PLATE O RING 10J181 1.10
62 MAG SHIELD PLATE COLOR 110B16 2.20
63 ONE-WAY CLUTCH W 190A44 1.10
64 ONE WAY CLUTCH *Cannot be ordered 114149 26.40
65 CLUTCH RING *Cannot be ordered 110A59 7.70
66 CLUTCH RING COLLAR 110A45 2.20
67 PINION BEARING PLATE SC 10A778 2.20
68 PINION BEARING PLATE 182286 2.20
69 PINION BALL BEARING (A) 10E327 15.40
70 PINION BEARING (A) W 190137 1.10
71 PINION + DRIVE GEAR SET *Cannot be ordered 138B52 77.00
72 PINION BEARING (B) SP/W 190991 1.10
73 PINION BEARING (B) W 193014 1.10
74 PINION BALL BEARING (B) 10E356 15.40
75 PINION COLOR *Cannot be ordered 110A43 3.30
76 BODY *Cannot be ordered 166B87 48.40
77 REAR CAP SC 10AB09 6.60
78 REAR CAP PLATE 160C04 2.20
79 REAR CAP PACKING 185260 2.20
80 REAR CAP *Cannot be ordered 116824 8.80
81 MAIN SHAFT *Cannot be ordered 171594 36.30
82 OSCILLATING GEAR W 190A47 1.10
83 OSCILLATING GEAR *Cannot be ordered 106163 9.90
84 OSCILLATING GEAR O-RING 10J078 1.10
85 OSCILLATING GEAR BEARING W 190854 1.10
86 OSCILLATING GEAR BALL BEARING 10E401 15.40
87 OSCILLATING GEAR SC 10A779 2.20
88 DRIVE GEAR RING 185231 2.20
89 DRIVE W 190611 1.10
90 DRIVE BALL BEARING (A) 10E210 8.80
91 ENGINE PLATE O-RING 10J165 1.10
92 ENGINE PLATE *Cannot be ordered 168B68 36.30
93 HANDLE PACKING 185189 3.30
94 HANDLE 1H2B86 84.70
95 DRIVE BALL BEARING (B) 10E381 8.80
96 SET PLATE *Cannot be ordered 137295 9.90
97 SET PLATE O-RING 10J120 2.20
98 DRIVE BEARING RING 185116 2.20
99 DRIVE BEARING O-RING 10J101 1.10
100 DRIVE BEARING COVER 168B71 12.10
101 HANDLE CAP O-RING 10J076 1.10
102 HANDLE CAP 151225 6.60
103 ROTOR NUT PLATE 160455 2.20
104 ROTOR NUT PACKING 185235 2.20
105 ROTOR NUT BEARING W 190429 1.10
106 ROTOR NUT BALL BEARING 10E351 15.40
107 ROTOR NUT BEARING COLLAR 110B27 4.40
108 ROTOR NUT 140328 8.80
109 ROTOR NUT COLLAR 110A54 3.30
200 NAMEPLATE *Cannot be ordered 199B13 3.30
201 HANDLE KNOB SP/W 190983 1.10
202 HANDLE KNOB W 190196 1.10
203 HANDLE KNOB COLOR 110411 2.20
204 HANDLE KNOB 1H1705 36.30
205 HANDLE KNOB BALL BEARING 10E224 8.80
206 HANDLE KNOB SC 10A333 2.20
207 HANDLE KNOB CAP 116745 6.60
208 ROTOR NUT W 190411 1.10
