[DAIWA] Genuine Spare Parts for 20 LUVIAS LT2500-XH Product code: 00060205 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 20 LUVIAS LT2500-XH Product code: 00060205 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4792

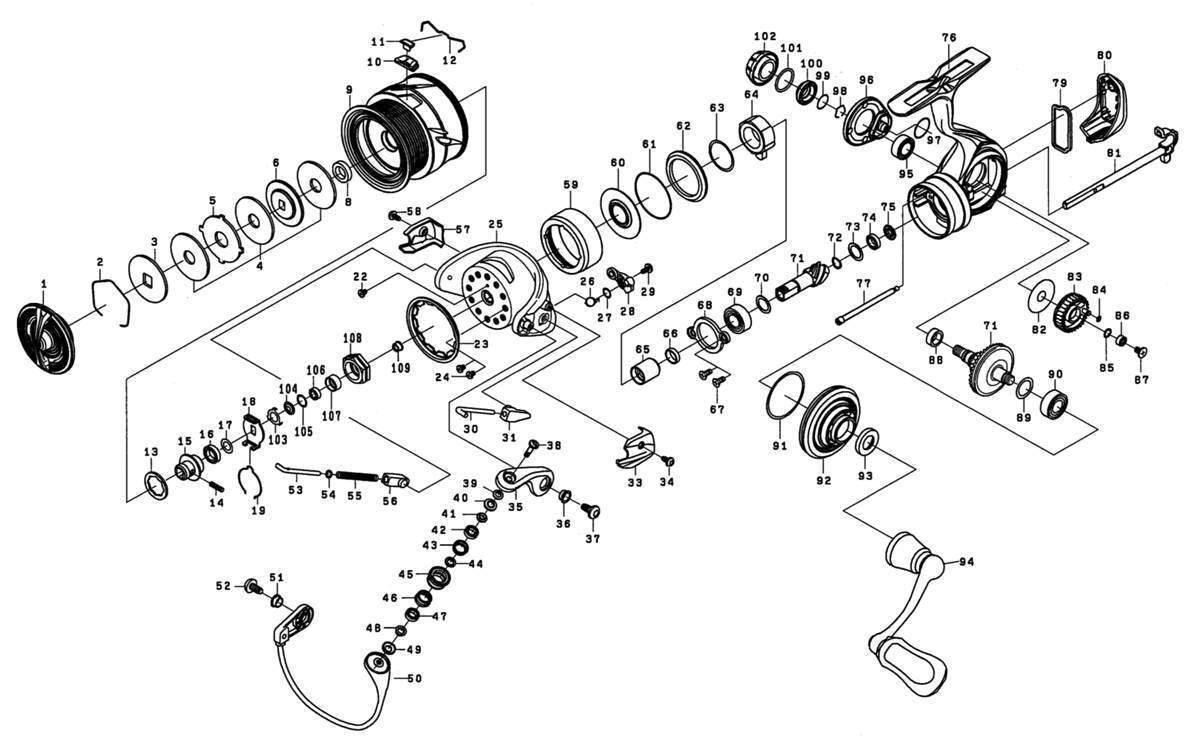

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139765 16.50
2 DRAG RINGS 185228 2.20
3 DRAG DISK W 142165 2.20
4 DRAG W SET (3-MILE) 144225 19.80
5 DRAG LIP W 190A37 2.20
6 DRAG DISK W 142166 2.20
8 SPOOL COLLAR 110A39 2.20
9 SPOOL (2-12) 128D71 121.00
10 LINE STOPPER PLATE 160A54 2.20
11 LINE STOPPER 177080 2.20
12 LINE STOPPER SP 133996 2.20
13 SPOOL METAL W 190A35 1.10
14 SPOOL METAL SC 10AA03 2.20
15 SPOOL METAL 132133 9.90
16 SPOOL METAL COLLAR 110925 2.20
17 SPOOL W 190A34 1.10
18 CLICK HOLDER 116819 2.20
19 CLICK LEAF SP 133857 2.20
22 ROTOR NUT SC 10A748 2.20
23 ROTOR COVER 162209 3.30
24 ROTOR COVER SC 10A748 2.20
25 ROTOR *Cannot be ordered 188A89 36.30
26 KICK LEVER SP 133966 2.20
27 KICK LEVER W 190057 1.10
28 KICK LEVER 111174 8.80
29 KICK LEVER SC 10A870 2.20
30 ARM LEVER SHAFT 122166 3.30
31 ARM LEVER SHAFT HOLDER 110118 2.20
33 ARM LEVER COVER 108A50 7.70
34 ARM LEVER COVER SC 10A082 2.20
35 ARM LEVER 101448 15.40
36 ARM LEVER SC COLLAR 110123 2.20
37 ARM LEVER SC 10A081 2.20
38 ROLLER SC 187088 3.30
39 ROLLER W 190562 1.10
40 ROLLER PACKING 185229 1.10
41 ROLLER COLLAR (A) 110A26 2.20
42 ROLLER BALL BEARING (E) 10E400 15.40
43 ROLLER COLLAR (B) 191070 3.30
44 ROLLER COLLAR (C) 110119 2.20
45 LINE ROLLER *Cannot be ordered 179151 8.80
46 ROLLER COLLAR (B) 191070 3.30
47 ROLLER BALL BEARING (E) 10E400 15.40
48 ROLLER COLLAR (A) 110A26 2.20
49 ROLLER PACKING 185229 1.10
50 BAIL *Cannot be ordered 164918 60.50
51 BAIL HOLDER SC COLLAR 110123 2.20
52 BAIL HOLDER SC 10A081 2.20
53 BALE SHAFT 122127 3.30
54 BAIL SHAFT W 190773 1.10
55 BAIL SHAFT SP 133A63 2.20
56 BAIL SHAFT SP HOLDER 110623 2.20
57 BAIL HOLDER COVER 108A51 7.70
58 BALE HOLDER COVER SC 10A082 2.20
59 MAG SHIELD CAP *Cannot be ordered 108A78 8.80
60 MAG SHIELD PLATE *Cannot be ordered 114144 23.10
61 MAG SHIELD PLATE O-RING 10J181 1.10
62 MAG SHIELD PLATE COLLAR 110B16 2.20
63 ONE-WAY CLUTCH W 190A44 1.10
64 ONE-WAY CLUTCH *Cannot be ordered 114149 26.40
65 CLUTCH RING *Cannot be ordered 110A59 7.70
66 CLUTCH RING COLLAR *Cannot be ordered 110B17 2.20
67 PINION BEARING PLATE SC 10A778 2.20
68 PINION BEARING PLATE 182286 2.20
69 PINION BALL BEARING (A) 10E385 8.80
70 PINION BEARING (A) W 190137 1.10
71 PINION + DRIVE GEAR SET *Cannot be ordered 138B48 77.00
72 PINION BEARING (B) SP・W 190991 1.10
73 PINION BEARING (B) W 193014 1.10
74 PINION BALL BEARING (B) 10E356 15.40
75 PINION COLLAR *Cannot be ordered 110A43 3.30
76 BODY *Cannot be ordered 166B86 47.30
77 REAR CAP SC 10AB03 3.30
79 REAR CAP PACKING 185259 2.20
80 REAR CAP *Cannot be ordered 116823 8.80
81 MAIN SHAFT *Cannot be ordered 171593 36.30
82 OSCILLATING GEAR W 190A47 1.10
83 OSCILLATING GEAR O-RING *Cannot be ordered 106160 9.90
84 OSCILLATING GEAR O-RING 10J078 1.10
85 OSCILLATING GEAR BEARING W 190854 1.10
86 OSCILLATING GEAR BALL BEARING 10E401 15.40
87 OSCILLATING GEAR SC 10A779 2.20
88 DRIVE GEAR BEARINGS 185231 2.20
89 DRIVE W 190611 1.10
90 DRIVE BALL BEARING (A) 10E210 8.80
91 ENGINE PLATE O-RING 10J167 1.10
92 ENGINE PLATE *Cannot be ordered 168B66 36.30
93 HANDLE PACKING 185189 3.30
94 HANDLE 1H2B83 79.20
95 DRIVE BALL BEARING (B) 10E381 8.80
96 SET PLATE *Cannot be ordered 137294 9.90
97 SET PLATE O-RING 10J120 2.20
98 DRIVE BEARING RING 185116 2.20
99 DRIVE BEARING O-RING 10J101 1.10
100 DRIVE BEARING COVER *Cannot be ordered 168B70 12.10
101 HANDLE CAP O-RING 10J076 1.10
102 HANDLE CAP 151225 6.60
103 ROTOR NUT PLATE 160455 2.20
104 ROTOR NUT PACKING 185235 2.20
105 ROTOR NUT BEARING W 190429 1.10
106 ROTOR NUT BALL BEARING 10E351 15.40
107 ROTOR NUT BEARING COLLAR 110B27 4.40
108 ROTOR NUT 140328 8.80
109 ROTOR NUT COLLAR 110A54 3.30
200 NAMEPLATE *Cannot be ordered 199B06 3.30
201 HANDLE KNOB SP/W 190983 1.10
202 HANDLE KNOB W 190196 1.10
203 HANDLE KNOB COLOR 110411 2.20
204 HANDLE KNOB 1H1667 24.20
205 HANDLE KNOB BALL BEARING 10E224 8.80
206 HANDLE KNOB SC 10A333 2.20
207 HANDLE KNOB CAP 116725 6.60
208 ROTOR NUT W 190411 1.10
