  4. > [DAIWA] Genuine Spare Parts for 23 AIRITY PC LT2500 Product code: 00061131 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 AIRITY PC LT2500 Product code: 00061131 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 AIRITY PC LT2500 Product code: 00061131 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5905

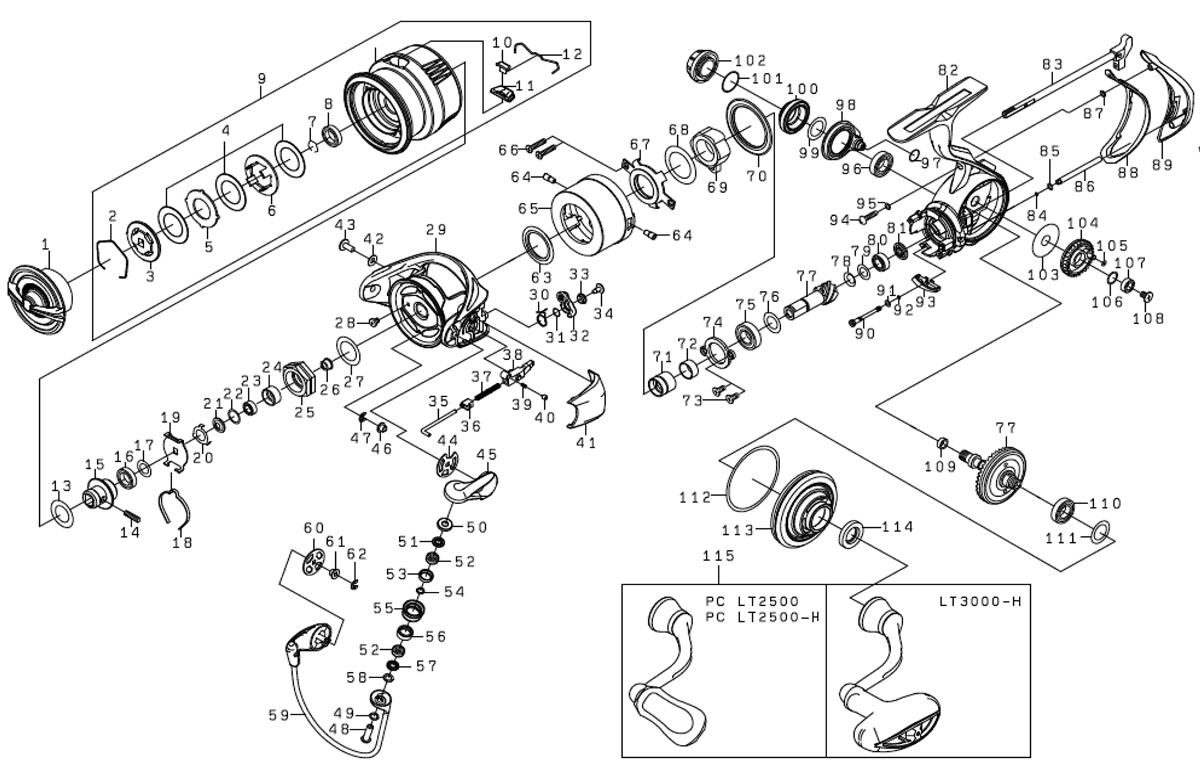

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139785 30.80
2 DRAG RINGS 185227 2.20
3 DRAG METAL (A) 142169 6.60
4 DRAG W SET (3 piece) 144274 19.80
5 DRAG LIP W 143090 1.10
6 DRAG METAL (B) 142164 2.20
7 SPOOL BEARING RING 185236 2.20
8 SPOOL BALL BEARING 10E367 15.40
9 SPOOL (2-12) 128E76 145.20
10 LINE STOPPER 177080 2.20
11 LINE STOPPER PLATE 160A54 2.20
12 LINE STOPPER SPRING 133996 2.20
13 SPOOL METAL W 190A35 1.10
14 SPOOL METAL SC 10AA03 2.20
15 SPOOL METAL 132133 9.90
16 SPOOL METAL COLLAR 110925 2.20
17 SPOOL W 190A34 1.10
18 CLICKLEAF SP 133857 2.20
19 CLICK HOLDER 116819 2.20
20 ROTOR NUT PLATE 160455 2.20
21 ROTOR NUT PACKING 185235 2.20
22 ROTOR NUT BEARING W 190429 1.10
23 ROTOR NUT BALL BEARING LINK 10E378 15.40
24 ROTOR NUT BEARING COLLAR 110A48 4.40
25 ROTOR NUT 140328 8.80
26 ROTOR NUT COLLAR 110A54 3.30
27 ROTOR NUT W 190625 1.10
28 ROTOR NUT SC 10A748 2.20
29 ROTOR *Cannot be ordered 188B64 67.10
30 KICK LEVER SP 133A91 2.20
31 KICK LEVER W 190C05 1.10
32 KICK LEVER 111194 8.80
33 KICK LEVER COLLAR 110B90 2.20
34 KICK LEVER SC 10A046 2.20
35 ARM LEVER SHAFT 122171 2.20
36 ARM LEVER SHAFT COLLAR 110B96 3.30
37 ARM LEVER SP 133A63 2.20
38 ARM LEVER SHAFT HOLDER 110B93 2.20
39 ARM LEVER SHAFT HOLDER SP 133A90 2.20
40 ARM LEVER SHAFT HOLDER PIN 156257 2.20
41 ARM LEVER COVER 108B03 7.70
42 ARM LEVER COVER SC/W 190644 1.10
43 ARM LEVER COVER SC 10AB66 2.20
44 ARM LEVER PLATE 160D10 2.20
45 ARM LEVER *Cannot be ordered 101479 15.40
46 ARM LEVER COLLAR 110B89 2.20
47 ARM LEVER RETAINER 10F014 2.20
48 ARM LEVER SC 10AB65 3.30
49 ARM LEVER SC・W 190C03 1.10
50 ROLLER COLLAR (A) 110A47 2.20
51 ROLLER MAG COLLAR (A) *Cannot be ordered 191072 12.10
52 ROLLER BALL BEARING 10E400 15.40
53 ROLLER COLLAR (B) 191069 3.30
54 ROLLER COLLAR (C) 110119 2.20
55 LINE ROLLER *Cannot be ordered 179169 8.80
56 ROLLER COLLAR (D) 191076 4.40
57 ROLLER MAG COLLAR (B) *Cannot be ordered 191071 12.10
58 ROLLER W 190109 1.10
59 BAIL *Cannot be ordered 164950 72.60
60 BAIL HOLDER PLATE 160D11 2.20
61 BALE HOLDER COLLAR 110B89 2.20
62 BAIL HOLDER RETAINER 10F014 2.20
63 STOPPER LEVER PACKING (A) 185234 2.20
64 STOPPER LEVER SC 10AA56 2.20
65 STOPPER LEVER *Cannot be ordered 196436 12.10
66 MAGSHIELD PLATE SC 10AB26 2.20
67 MAG SHIELD PLATE *Cannot be ordered 114125 23.10
68 ONE-WAY CLUTCH W 190945 1.10
69 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
70 STOPPER LEVER PACKING (B) 185232 2.20
71 CLUTCH RING *Cannot be ordered 110A38 8.80
72 CLUTCH RING COLLAR 110A45 2.20
73 PINION BEARING PLATE SC 10AB24 2.20
74 PINION BEARING PLATE 182278 2.20
75 PINION BALL BEARING (A) 10E327 15.40
76 PINION BEARING (A) W 190137 1.10
77 PINION + DRIVE GEAR SET *Cannot be ordered 138C02 77.00
78 PINION BEARING (B) SP・W 190A79 1.10
79 PINION BEARING (B) W 193014 1.10
80 PINION BALL BEARING (B) 10E356 15.40
81 PINION COLLAR *Cannot be ordered 110A43 3.30
82 BODY *Cannot be ordered 166C16 114.40
83 MAIN SHAFT *Cannot be ordered 171540 36.30
84 OSCILLATING POST O-RING 10J068 1.10
85 OSCILLATING POST W 190A41 1.10
86 OSCILLATING POST 155559 2.20
87 REAR CAP W 190A40 1.10
88 REAR CAP PACKING 185230 3.30
89 REAR CAP *Cannot be ordered 116888 15.40
90 REAR CAP SC *Cannot be ordered 10AB36 3.30
91 SC W REAR CAP 190A48 1.10
92 SC LEAR CAP O-RING 10J169 1.10
93 BAIL KICK COLLAR 110A41 2.20
94 LAYER CAP SC 10AB25 2.20
95 SC WEAR CAP SC 190669 1.10
96 DRIVE BALL BEARING (A) 10E326 15.40
97 SET PLATE O-RING 10J168 1.10
98 SET PLATE *Cannot be ordered 137341 30.80
99 DRIVE BEARING (A) W 190A46 1.10
100 DRIVE BEARING (A) COVER *Cannot be ordered 168C53 24.20
101 HANDLE CAP O-RING 10J076 1.10
102 HANDLE CAP 151236 6.60
103 OSCILLATING GEAR W 190A47 1.10
104 OSCILLATING GEAR *Cannot be ordered 106160 9.90
105 OSCILLATING GEAR O-RING 10J078 1.10
106 OSCILLATING GEAR BEARING W 190854 1.10
107 OSCILLATING GEAR BALL BEARING 10E401 15.40
108 OSCILLATING GEAR SC 10A876 2.20
109 DRIVE GEAR BEARING 185231 2.20
110 DRIVE BALL BEARING (B) 10E325 15.40
111 DRIVE BALL BEARING (B) W 190752 1.10
112 ENGINE PLATE O-RING 10J167 1.10
113 ENGINE PLATE *Cannot be ordered 168C50 48.40
114 HANDLE PACKING 185189 3.30
115 HANDLE 1H2C67 106.70
200 HANDLE KNOB SP/W 190983 1.10
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB BALL BEARING 10E313 15.40
203 HANDLE KNOB 1H1667 24.20
204 HANDLE KNOB SC 10A333 2.20
205 HANDLE KNOB CAP 116759 6.60
