[DAIWA] Genuine Spare Parts for 22 EXIST LT4000-XH Product code: 00061104 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5345

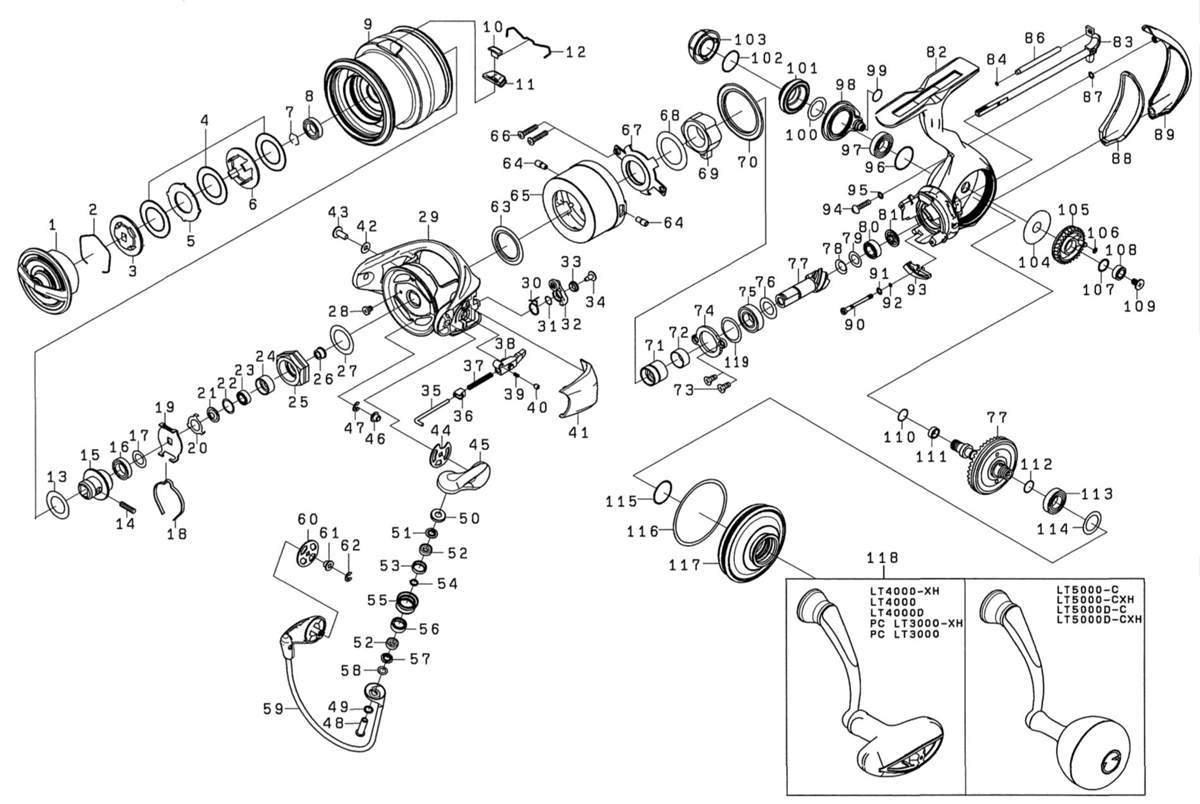

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOBS	6M249001	39.60
2	DRAG RINGS	6J556701	2.20
3	DRAG METAL (A)	6J556601	6.60
4	DRAG W SET (3 piece)	6M359001	19.80
5	DRAG LIP W	6J561201	1.10
6	DRAG METAL (B)	6J556501	2.20
7	SPOOL BEARING RING	6B358702	2.20
8	SPOOL BALL BEARING	6G212503	15.40
9	SPOOL (2-12)	6M248601	181.50
10	LINE STOPPER	6J558001	2.20
11	LINE STOPPER PLATE	6J568601	2.20
12	LINE STOPPER SPRING	6J314801	2.20
13	SPOOL METAL W	6J546301	1.10
14	SPOOL METAL SC	6J558201	2.20
15	SPOOL METAL	6J549501	9.90
16	SPOOL METAL BALL BEARING	6G522705	15.40
17	SPOOL W	6J602201	1.10
18	CLICKLEAF SP	6H416101	2.20
19	CLICK HOLDER	6M021401	2.20
20	ROTOR NUT PLATE	6G471501	2.20
21	ROTOR NUT PACKING	6J729101	2.20
22	ROTOR NUT BEARING W	63755202	1.10
23	ROTOR NUT BALL BEARING	6H959602	15.40
24	ROTOR NUT BEARING COLLAR	6J690201	4.40
25	ROTOR NUT	6J253001	8.80
26	ROTOR NUT COLLAR	6J808501	3.30
27	ROTOR NUT W	63712836	1.10
28	ROTOR NUT SC	6H022701	2.20
29	ROTOR *Cannot be ordered	6M247301	79.20
30	KICK LEVER SP	6M194501	2.20
31	KICK LEVER W	6M194601	1.10
32	KICK LEVER	6M247601	8.80
33	KICK LEVER COLLAR	6M196401	2.20
34	KICK LEVER SC	6H022702	2.20
35	ARM LEVER SHAFT	6M247801	3.30
36	ARM LEVER SHAFT COLLAR	6M195001	3.30
37	ARM LEVER SP	6G944501	2.20
38	ARM LEVER SHAFT HOLDER	6M247901	2.20
39	ARM LEVER SHAFT HOLDER SP	6M195301	2.20
40	ARM LEVER SHAFT HOLDER PIN	6M195401	2.20
41	ARM LEVER COVER	6M248101	7.70
42	ARM LEVER COVER SC/W	6G256401	1.10
43	ARM LEVER COVER SC	6M355601	2.20
44	ARM LEVER PLATE	6M195901	2.20
45	ARM LEVER	6M248001	18.70
46	ARM LEVER COLLAR	6M195801	2.20
47	ARM LEVER RETAINER	6B339801	2.20
48	ARM LEVER SC	6M196801	3.30
49	ARM LEVER SC・W	6M291901	1.10
50	ROLLER COLLAR (A)	6J538001	2.20
51	ROLLER MAG COLLAR (A) *Cannot be ordered	6J538401	12.10
52	ROLLER BALL BEARING	6J256702	15.40
53	ROLLER COLLAR (B)	6J256601	3.30
54	ROLLER COLLAR (C)	6J256301	2.20
55	LINE ROLLER *Cannot be ordered	6M196701	8.80
56	ROLLER COLLAR (D)	6M196601	4.40
57	ROLLER MAG COLLAR (B) *Cannot be ordered	6J537801	12.10
58	ROLLER W	63754101	1.10
59	BAIL *Cannot be ordered	6M248201	72.60
60	BAIL HOLDER PLATE	6M196501	2.20
61	BALE HOLDER COLLAR	6M195801	2.20
62	BAIL HOLDER RETAINER	6B339801	2.20
63	STOPPER LEVER PACKING (A)	6J554901	2.20
64	STOPPER LEVER SC	6J782101	2.20
65	STOPPER LEVER *Cannot be ordered	6J774702	12.10
66	MAGSHIELD PLATE SC	6H842808	2.20
67	MAG SHIELD PLATE *Cannot be ordered	6J553803	23.10
68	ONE-WAY CLUTCH W	6H502203	1.10
69	ONE-WAY CLUTCH *Cannot be ordered	6H412602	26.40
70	STOPPER LEVER PACKING (B)	6J553701	2.20
71	CLUTCH RING *Cannot be ordered	6J554801	8.80
72	CLUTCH RING COLLAR	6J536202	2.20
73	PINION BEARING PLATE SC	6J552203	2.20
74	PINION BEARING PLATE	6J552101	2.20
75	PINION BALL BEARING (A)	6G279602	15.40
76	PINION BEARING (A) W	63758502	1.10
77	PINION + DRIVE GEAR SET *Cannot be ordered	6Z026895	88.00
78	PINION BEARING (B) SP・W	6H814902	1.10
79	PINION BEARING (B) W	6E096501	1.10
80	PINION BALL BEARING (B)	6G538007	15.40
81	PINION COLLAR *Cannot be ordered	6J552001	3.30
82	BODY *Cannot be ordered	6M246601	123.20
83	MAIN SHAFT *Cannot be ordered	6J783302	36.30
84	OSCILLATING POST O-RING	6G683301	1.10
86	OSCILLATING POST *Cannot be ordered	6M247001	2.20
87	REAR CAP W	6G315302	1.10
88	REAR CAP PACKING *Cannot be ordered	6M247101	3.30
89	REAR CAP *Cannot be ordered	6M247201	15.40
90	REAR CAP SC *Cannot be ordered	6J609106	3.30
91	SC W REAR CAP	6J718501	1.10
92	SC LEAR CAP O-RING	6J718601	1.10
93	BAIL KICK COLLAR	6J571801	2.20
94	LAYER CAP SC	6J553605	2.20
95	SC WEAR CAP	6G315301	1.10
96	DRIVE BALL BEARING (A) O-RING	6J554101	1.10
97	DRIVE BALL BEARING (A) *Cannot be ordered	6J046802	45.10
98	SET PLATE *Cannot be ordered	6M246801	36.30
99	SET PLATE O-RING	6J551301	1.10
100	DRIVE BEARING (A) W	6J555501	1.10
101	DRIVE BEARING (A) COVER *Cannot be ordered	6J571305	30.80
102	HANDLE CAP O-RING	6G399702	1.10
103	HANDLE CAP	6M198101	6.60
104	OSCILLATING GEAR W	6J551401	1.10
105	OSCILLATING GEAR *Cannot be ordered	6J570401	9.90
106	OSCILLATING GEAR O-RING	6G869601	1.10
107	OSCILLATING GEAR BEARING W	6H129201	1.10
108	OSCILLATING GEAR BALL BEARING	6G686904	15.40
109	OSCILLATING GEAR SC	6G940402	2.20
110	DRIVE GEAR O-RING	6J731701	1.10
111	DRIVE GEAR O-RING	6J552701	2.20
112	DRIVE GEAR O-RING	6J731701	1.10
113	DRIVE BALL BEARING (B) *Cannot be ordered	6J030303	45.10
114	DRIVE BALL BEARING (B) W	6G613401	1.10
115	DRIVE BALL BEARING (B) O-RING	6J556301	1.10
116	ENGINE PLATE O-RING	6J571501	1.10
117	ENGINE PLATE *Cannot be ordered	6M246901	55.00
118	HANDLE	6M249201	169.40
119	PINION BEARING PLATE W	6G645607	1.10
200	HANDLE KNOB SP, W	6H744801	1.10
201	HANDLE KNOB W	6B411703	1.10
202	HANDLE KNOB BALL BEARING	6G469007	15.40
203	HANDLE KNOB	6J574001	36.30
204	HANDLE KNOB SC	6B679308	2.20
205	HANDLE KNOB CAP	6J574201	6.60
300	SLEEVE	6X379714	6.60
301	INNER BOX	6Z026837	30.80
