[Avail] SHIMANO Mechanical Brake Knob for 23 CALCUTTA CONQUEST BFS, 21 CALCUTTA CONQUEST [BCAL-23CNQ]

[Avail] SHIMANO Mechanical Brake Knob for 23 CALCUTTA CONQUEST BFS, 21 CALCUTTA CONQUEST [BCAL-23CNQ]

Our Selling Price: US$17.82 [Regular Price: US$29.70]

View availability
Color:
Quantity:
Contact Us

Item Description

Mechanical Brake Knob for 23 CALCUTTA CONQUEST BFS/21 CALCUTTA CONQUEST

Model Name

BCAL-23CNQ


Product Description

This mechanical brake knob can be installed on the 21 CALCUTTA CONQUEST 100/200 and 23 CALCUTTA CONQUEST BFS.
Although the weight slightly increases, it has the same clicking sound as the genuine parts.



The sides of this product have Avail's original knurled pattern.
This makes it easier to pick up compared to the genuine part and improves the ease of adjustment of the mechanical brake.




Color



Gunmetal




Champagne Gold

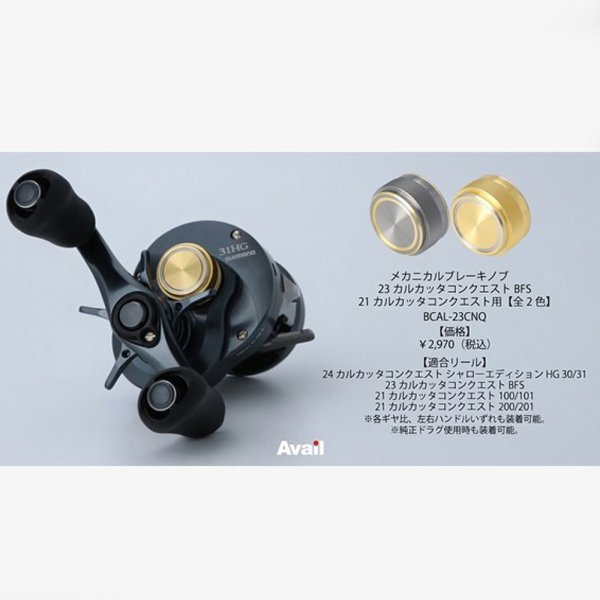

Installation Example

Color coordination is possible with the separately sold handle, drag retainer, etc.










Specifications

Basic Specifications

Material
Aluminum alloy

Weight
Mechanical brake knob unit only: approx. 3.42 g
Genuine product: 2.7 g

Compatible Reel
- 24 CALCUTTA CONQUEST SHALLOW EDITION HG30/31
- 23 CALCUTTA CONQUEST BFS
- 21 CALCUTTA CONQUEST 100/101
- 21-22 CALCUTTA CONQUEST 200/201

*All gear ratios and left/right handles can be used.
*It can be used with genuine drag lures.


How to Use

This product requires the transplantation of two genuine parts: the "Mechanical Brake Washer" and "Washer" attached to the genuine mechanical brake.
Please be careful when working on this product, as there is a possibility of losing or damaging the genuine parts.



*23 CALCUTTA CONQUEST BFS requires porting Part No. 26, "Mechanical Brake Washer," and Part No. 27, "Washer."
*21 CALCUTTA CONQUEST 100/200: Part No. 25, "Mechanical Brake Washer," and Part No. 26, "Washer," must be transferred.

Use tweezers to remove the parts and transfer them to BCAL-23CNQ. The "Mechanical Brake Washer" and "Washer" may be attached, so please be careful not to lose or damage them.

*The above image shows the genuine mechanical brake knob of the 23 CALCUTTA CONQUEST BFS.
*The "Part Number (Part No.)" is in the SHIMANO parts price list.
