[SHIMANO] Genuine Spare Parts for 16 AERNOS 4000 Product Code: 035455 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

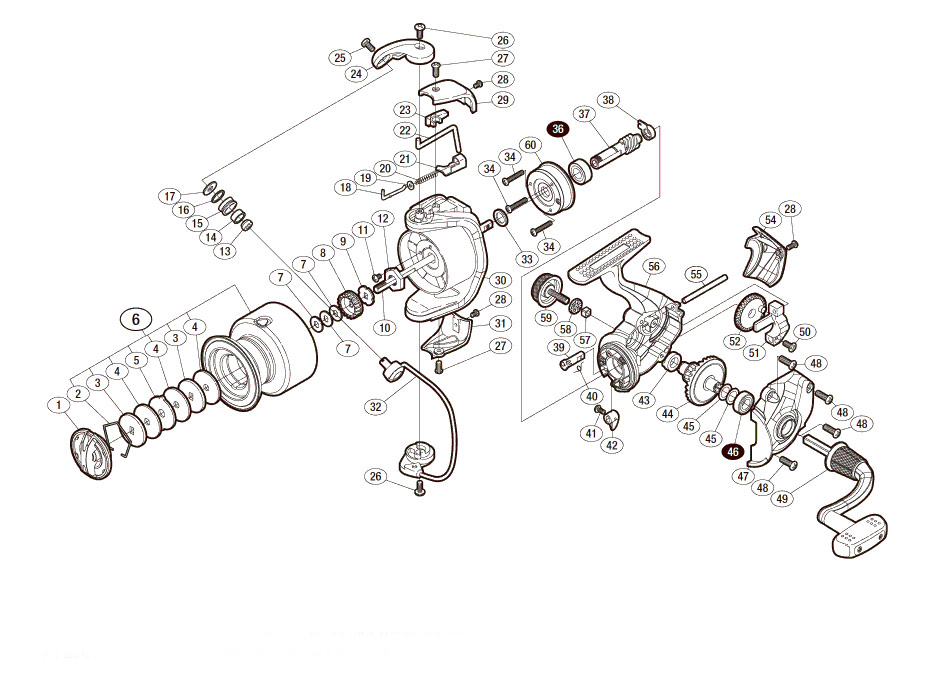

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10H06 | DRAG KNOB ASSEMBLY | 4.95 |
2 | 10MZM | STOPPER SPRING | 1.10 |
3 | 10N23 | OVAL WASHER | 1.10 |
4 | 1031C | DRAG WASHER | 1.10 |
5 | 102XT | EAR WASHERS | 1.10 |
6 | 13AQU | SPOOL ASSEMBLY | 13.75 |
7 | 10BXN | SPOOL WASHER SET | 1.10 |
8 | 103MU | SPOOL HOLDER (A) | 1.65 |
9 | 10J04 | SPOOL HOLDER (B) | 1.65 |
10 | 103NU | MAIN SHAFT | 6.05 |
11 | 10LHN | FIXING BOLT | 1.10 |
12 | 10817 | ROTATING FRAME NUT | 1.65 |
13 | 10CZQ | LINE ROLLER COLLAR | 1.65 |
14 | 10PFH | ARM ROLLER BUSHING | 1.10 |
15 | 10JLF | ARM ROLLER | 1.65 |
16 | 10KFD | ARM ROLLER SPACER | 1.65 |
17 | 107X1 | LINE ROLLER WASHER | 1.65 |
18 | 105LU | ARM SPRING GUIDE (A) | 1.65 |
19 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
20 | 10FVD | ARM CAM SPRING | 1.65 |
21 | 10HEB | ARM CAM SPRING SEAT | 2.75 |
22 | 10FB4 | INTERNAL GERI LEVER | 2.75 |
23 | 106XW | INTERNAL GERI LEVER COVER | 1.65 |
24 | 10JEY | ARM CAM | 2.75 |
25 | 10K90 | FIXING BOLT | 1.10 |
26 | 10LLJ | FIXING BOLT | 1.10 |
27 | 10LFK | FIXING BOLT | 1.10 |
28 | 10L1S | FIXING BOLT | 1.10 |
29 | 1084K | ARM CAM SPRING COVER | 2.75 |
30 | 102T1 | ROTOR | 6.05 |
31 | 10MEW | BALE MOUNTING BRACKET COVER | 2.75 |
32 | 1073A | BALE ASSEMBLY | 4.95 |
33 | 10GR8 | WASHER | 1.10 |
34 | 103C6 | FIXING BOLT | 1.10 |
36 | 107FE | BALL BEARING (7 X 14 X 5) | 7.15 |
37 | 10C56 | PINION GEAR | 9.35 |
38 | 1074K | BUSH FOR PINION GEAR | 1.65 |
39 | 1053S | STOPPER CAM | 1.65 |
40 | 105B4 | CLICK SPRING | 1.65 |
41 | 10L1R | FIXING BOLT | 1.10 |
42 | 10AP0 | STOPPER LEVER | 1.65 |
43 | 10GMX | BUSH (FOR MASTER GEAR) | 1.10 |
44 | 10AM8 | DRIVE GEAR | 7.15 |
45 | 10JDC | ADJUSTMENT WASHER SET | 1.10 |
46 | 107AT | BALL BEARING (7X13X4) | 7.15 |
47 | 10BAC | LID | 9.35 |
48 | 10L9P | FIXING BOLT | 1.10 |
49 | 10NH8 | HANDLE ASSEMBLY | 15.95 |
50 | 10ML7 | FIXING BOLT | 1.65 |
51 | 10G7E | SLIDER | 8.25 |
52 | 10G9L | SLIDER GEAR | 1.65 |
54 | 10NKM | BODY GUARD | 3.85 |
55 | 1035B | SLIDER GUIDE | 1.65 |
56 | 104JK | BODY | 9.35 |
57 | 104NX | WATERPROOF CAP YURUMI STOPPER | 1.10 |
58 | 10J6B | HANDLE SCREW CAP SPACER | 1.65 |
59 | 10R9K | HANDLE SCREW CAP | 2.75 |
60 | 1003H | ROLLER CLUTCH ASSEMBLY | 11.55 |
BNKI | 13R3T | EXPLODED VIEW (ACCESSORIES) | 1.65 |
TRST | 13PMK | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
