[SHIMANO] Genuine Spare Parts for 17 SUSTAIN 3000XG Product Code: 037602 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 SUSTAIN 3000XG Product Code: 037602 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.13 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3944

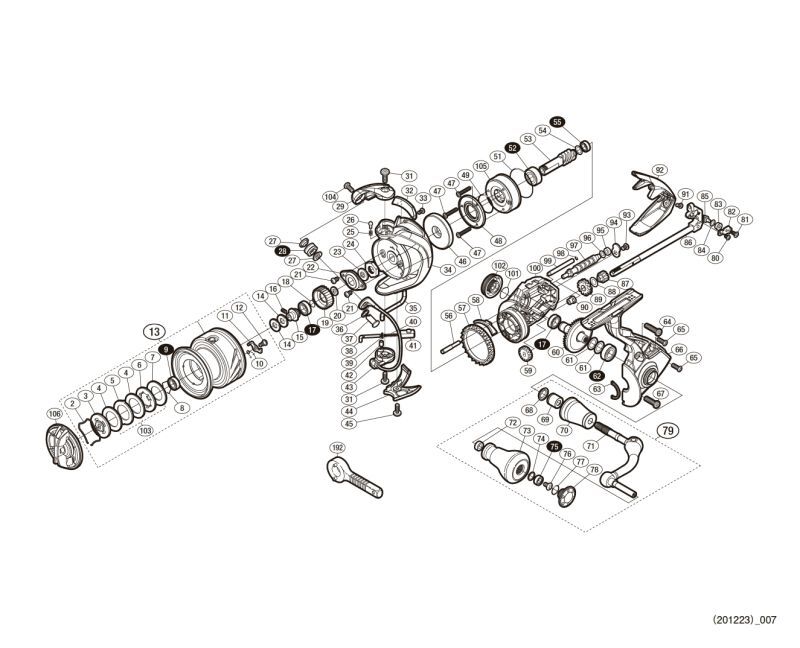

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN3 REEL BAG 4.95
2 10B8M STOPPER SPRING 1.65
3 10QBU OVAL WASHERS 6.05
4 10345 DRAG WASHERS 6.05
5 102XW EAR WASHERS 1.65
6 10BCG OVAL WASHERS 2.75
7 10C1A DRAG WASHERS 6.05
8 10GEW BEARING PULL-OUT STOPPER 1.10
9 104JT BALL BEARING (6 X 10 X 3) 13.75
10 10BQF SPOOL PIN SPRING 1.65
11 102H5 SPOOL PIN 1.65
12 10A6F FIXING BOLT 1.65
13 10EEY SPOOL ASSEMBLY 67.65
14 10BU8 SPOOL WASHER SET 1.10
15 10THY SPOOL SHAFT BEARING GUIDE 3.85
16 10PN3 SET SCREW (M2X5) 1.65
17 104PP BALL BEARING (7X11X3) 13.75
18 107V2 RATCHET SPRING 1.65
19 10SYS DRAG CLICK SILRATCHET 2.75
20 103PE SPOOL BEARING 1.65
21 10PME FIXING BOLT 1.10
22 10TRH RETAINER 2.75
23 107L4 ROTOR BEARING SEAL 2.75
24 1067Y ROTOR NUT 3.85
25 10CH0 INTERNAL GERI LEVER CLICK SPRING 1.65
26 10CHA INTERNAL GERI LEVER CLICK PIN 1.65
27 10TJM LINE ROLLER BEARING COLLAR 2.75
28 10RY0 LINE ROLLER ASSEMBLY (WITH BEARING) 34.10
29 10TJL ARM CAM 6.05
31 10TLM FIXING BOLT 1.65
32 10EDG BALANCER GUARD ASSEMBLY 9.35
33 10TLH FIXING BOLT 1.65
34 10SYT ROTOR 28.05
35 10RA8 INTERNAL GERI LEVER 2.75
36 1018Z WASHER 1.65
37 10TLK ARM FIXING SHAFT 6.05
38 1061L ARM SPRING GUIDE (A) 3.85
39 10TYE SPRING GUIDE (A) COLLAR 1.65
40 105R6 ARM CAM SPRING 1.65
41 107AB ARM CAM SPRING SEAT 2.75
42 10TRC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
43 10SX8 BAIL ASSEMBLY 45.10
44 10TPJ BAIL MOUNTING BRACKET COVER 9.35
45 10PS7 FIXING BOLT 1.10
46 10SYA ROTOR COLLAR 9.35
47 10TJP FIXING BOLT 1.65
48 10SYJ ROLLER CLUTCH COVER PLATE 9.35
49 10EAY O-RING 1.65
51 10MLU O-RING 3.85
52 104Q5 BALL BEARING (7X14X5) 13.75
53 10C51 PINION GEAR 12.65
54 10HEP WASHER 1.10
55 104JZ BALL BEARING (5X8X2.5) 13.75
56 10CLE INTERMEDIATE GEAR SHAFT 3.85
57 104FV FRICTION RING 2.75
58 10TQF INTERNAL GERI HITARI 1.65
59 10HBH WORM SHAFT GEAR 3.85
60 10AAV DRIVE GEAR SET 22.55
61 10JDC ADJUSTMENT WASHER SET 1.10
62 104JD BALL BEARING (7X13X4) 13.75
63 10CBD COVER FLANGE SEAL 2.75
64 10U0A FIXING BOLT 1.65
65 10M2G FIXING BOLT 1.10
66 10S0D KIFUTA ASSEMBLY WITH LEGS 28.05
67 10U09 FIXING BOLT 1.65
68 10PXV HANDLE SHAFT SEAL 2.75
69 10C82 HANDLE SHAFT FLANGE (B) 3.85
70 10TJK HANDLE SHAFT FLANGE 12.65
71 10SKV HANDLE SHAFT ASSEMBLY 28.05
72 10PXZ HANDLE KNOB BUSH 1.65
73 10S0F HANDLE KNOB ASSEMBLY 28.05
74 104FH WASHER 2.20
75 104VX BALL BEARING (4X7X2.5) 13.75
76 10LFA FIXING BOLT 1.10
77 10LAA O-RING 1.10
78 10BFG HANDLE CAP 6.05
79 10EGB HANDLE ASSEMBLY 62.15
80 10L67 FIXING BOLT 1.65
81 10QVK FIXING BOLT 1.65
82 10HAE WORM SHAFT PIN PUSH PLATE 1.65
83 10JXT WORM SHAFT PIN COLLAR 1.65
84 10RKQ WASHER 2.20
85 106UZ WORM SHAFT PIN 3.85
86 10DMY MAIN SHAFT ASSEMBLY 20.35
87 106RH INTERMEDIATE GEAR (SMALL) 2.75
88 10B7U WORM SHAFT PIN COLLAR 1.65
89 10CNR INTERMEDIATE GEAR (LARGE) 6.05
90 106MB WORM SHAFT BUSHING 1.65
91 10PRZ FIXING BOLT 1.65
92 10NNG BODY GUARD 9.35
93 103KW FIXING BOLT 1.10
94 10ATJ WORM SHAFT COVER 1.65
95 106CN WORM SHAFT BUSHING 1.65
96 10ECK WASHER 1.10
97 1068H WORM SHAFT 6.05
98 10JAC O-RING 1.65
99 10337 SLIDER GUIDE 1.65
100 10DGM BODY 22.55
101 108WH O-RING 1.65
102 10N4J HANDLE SCREW CAP 11.55
103 10SAD WASHER 17.05
104 10PMH FIXING BOLT 1.65
105 10S16 ROLLER CLUTCH ASSEMBLY 11.55
106 10DLV DRAG KNOB 17.05
192 10NC0 REEL WRENCH (ACCESSORY) 1.65
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
MH01 13NHM NAMEPLATE ON THE BACK OF THE LEG 2.75
PUNT 13FLF INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
