[SHIMANO] Genuine Spare Parts for 21 ULTEGRA 1000 Product Code: 043276 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4959

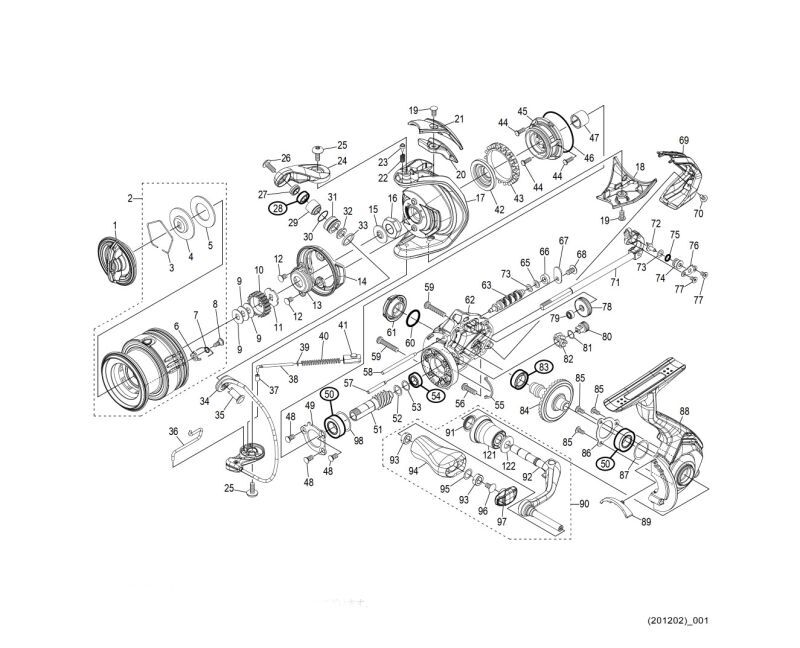

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10RHK	DRAG KNOB ASSEMBLY	17.05
2	10RG6	SPOOL ASSEMBLY	39.60
3	10B6L	STOPPER SPRING	1.65
4	10BBM	OVAL WASHER	1.65
5	10E7L	DRAG WASHER	1.65
6	10RHQ	SPOOL PIN	1.10
7	10DS5	SPOOL PIN SPRING	1.10
8	10A6F	FIXING BOLT	1.65
9	10BXN	SPOOL WASHER SET	1.10
10	103MU	SPOOL HOLDER (A)	1.65
11	10J04	SPOOL HOLDER (B)	1.65
12	10DNE	FIXING BOLT	1.10
13	1076N	RETAINER	2.75
14	10RRM	ROTOR FLANGE	3.85
15	1017W	ROTOR BEARING SEAL	1.65
16	10T52	ROTOR NUT	2.20
17	10RGT	ROTOR	3.85
18	10RRG	BALE MOUNTING COVER	3.85
19	10PS2	FIXING BOLT	1.65
20	10RSN	BALANCER	2.75
21	10RS7	ARM CAM SPRING COVER	3.85
22	10CH0	BAIL TRIP LEVER CLICK SPRING	1.65
23	106ZC	CLICK PIN	1.65
24	10RHE	ARM CAM	2.20
25	10PS5	FIXING BOLT	1.65
26	10K90	FIXING BOLT	1.10
27	10E44	LINE ROLLER COLLAR	2.75
28	104VX	BALL BEARING (4X7X2.5)	13.75
29	1009K	LINE ROLLER BUSH	1.65
30	1009E	O-RING	1.65
31	1009A	LINE ROLLER	6.05
32	10TJM	LINE ROLLER BEARING COLLAR	2.75
33	10RFZ	LINE ROLLER SPACER	1.65
34	10E5A	BAIL ASSEMBLY	16.50
35	10TPC	ARM FIXING SHAFT	6.05
36	10E5Y	INNER GERI LEVER	2.75
37	10TRC	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
38	10SAN	ARM SPRING GUIDE (A)	3.85
39	101D9	ARM SPRING GUIDE (A) COLLAR	1.65
40	10R2N	ARM CAM SPRING	1.65
41	107AB	ARM CAM SPRING SEAT	2.75
42	101D5	ROTOR COLLAR	9.35
43	10QXQ	FRICTION RING	2.75
44	100WT	FIXING BOLT	1.65
45	10S2L	ROLLER CLUTCH ASSEMBLY	12.65
46	1009Z	O-RING	1.65
47	1009Y	ROLLER CLUTCH INNER	3.85
48	100WY	FIXING BOLT	1.65
49	10DWD	BEARING PUSH PLATE	1.65
50	10DZB	BALL BEARING (7X13X4)	7.15
51	10RGU	PINION GEAR	13.20
52	10SYU	WASHER	1.65
53	10HE5	WASHER	1.65
54	10RKR	BALL BEARING (5X8X2.5)	7.15
55	1009W	LID FLANGE SEAL	2.75
56	10SHA	FIXING BOLT	1.65
57	10E5Q	INTERMEDIATE GEAR SHAFT	3.85
58	10E60	SLIDER GUIDE (A)	1.65
59	10TND	FIXING BOLT	1.65
60	10E3K	O-RING	1.65
61	10RSE	HANDLE SCREW CAP	3.85
62	10RHR	BODY	9.90
63	10E62	WORM SHAFT	6.05
65	10ECK	WASHER	1.10
66	1009C	WORM SHAFT BUSHING	1.65
67	10S7C	WORM SHAFT COVER	1.65
68	10QG5	FIXING BOLT	1.10
69	10S0U	BODY GUARD	6.05
70	10PRZ	FIXING BOLT	1.65
71	10E5P	MAIN SHAFT ASSEMBLY	4.95
72	1018D	WORM SHAFT PIN	6.05
73	10K9C	WASHER	1.10
74	1009L	WORM SHAFT PIN COLLAR	1.65
75	100WX	O-RING	1.65
76	10182	WORM SHAFT PIN PUSH PLATE	1.65
77	1055H	FIXING BOLT	1.65
78	10DK0	WORM SHAFT GEAR	9.35
79	1009G	WORM SHAFT BUSHING	1.65
80	10021	INTERMEDIATE GEAR (S)	8.25
81	10TBA	WASHER	1.65
82	1001A	INTERMEDIATE GEAR (L)	9.35
83	107FA	BALL BEARING (7X11X3)	7.15
84	100W6	DRIVE GEAR	17.05
85	10SH0	FIXING BOLT	1.65
86	100F9	BEARING PUSH PLATE	1.65
87	101AY	BEARING WASHER	2.20
88	10E52	COVER ASSEMBLY	8.80
89	1017Y	INTERNAL GRIPPING PLATE	1.65
90	10RGC	HANDLE ASSEMBLY	33.00
91	10PXV	HANDLE SHAFT SEAL	2.75
92	10E59	HANDLE SHANK ASSEMBLY	22.00
93	10PXZ	HANDLE KNOB BUSH	1.65
94	10328	HANDLE KNOB	11.55
95	104FH	WASHER	2.20
96	10LFA	FIXING BOLT	1.10
97	10TNJ	HANDLE CAP	3.85
98	10E55	HANDLE WASHER	1.65
121	10RWV	HANDLE SHAFT FLANGE ASSEMBLY	5.50
122	10E5X	HANDLE WASHER	1.65
ITOS	10G4L	SPOOL THREAD STOPPER SEAL (ACCESSORY)	1.65
MH01	13NBL	NAMEPLATE ON THE BACK OF THE LEG	1.10
PUNT	13FML	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	2.75
