[SHIMANO] Genuine Spare Parts for 18 Soare BB 500S Product Code: 039361 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.8 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/4314

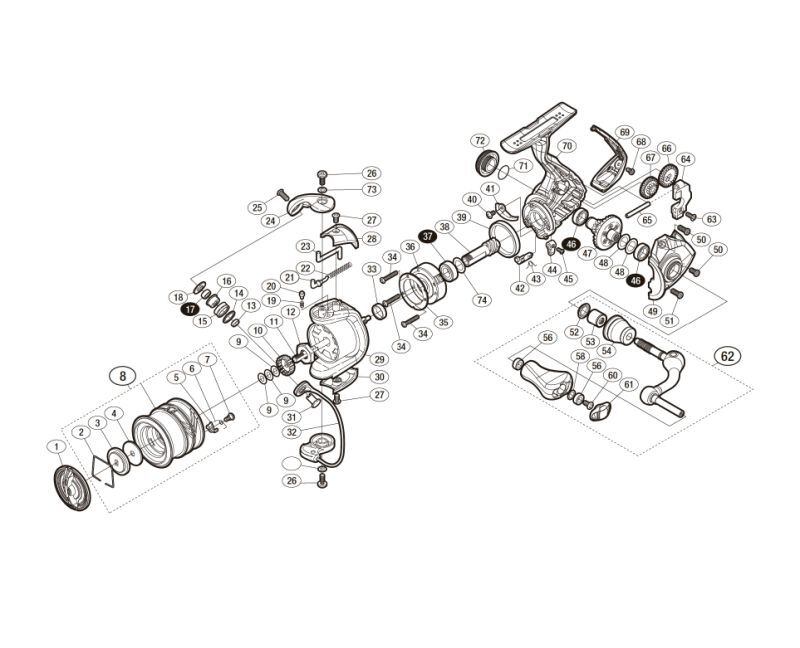

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13QN1 | REEL BAG | 3.85 |
1 | 13BNJ | DRAG KNOB ASSEMBLY | 17.05 |
2 | 10MZN | STOPPER SPRING | 1.10 |
3 | 10S0W | OVAL WASHER | 1.65 |
4 | 10N56 | DRAG WASHER | 1.65 |
5 | 10DS4 | SPOOL PIN | 1.65 |
6 | 10DS6 | SPOOL PIN SPRING | 1.65 |
7 | 10TRB | FIXING BOLT | 1.65 |
8 | 13CGH | SPOOL ASSEMBLY | 45.10 |
9 | 10BXN | SPOOL WASHER SET | 1.10 |
10 | 103MX | SPOOL RECEIVER | 1.65 |
11 | 10S0V | MAIN SHAFT | 6.05 |
12 | 1081A | ROTOR NUT | 3.85 |
13 | 105Z4 | LINE ROLLER BEARING COLLAR | 2.75 |
14 | 10KFD | ARM ROLLER SPACER | 1.65 |
15 | 10KM7 | LINE ROLLER | 6.05 |
16 | 10PFH | ARM ROLLER BUSHING | 1.10 |
17 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
18 | 10PJH | ARM ROLLER WASHER | 2.75 |
19 | 10CH0 | INTERNAL GERI LEVER CLICK SPRING | 1.65 |
20 | 106ZC | CLICK PIN | 1.65 |
21 | 105LS | ARM SPRING GUIDE | 1.10 |
22 | 10SQ8 | ARM CAM SPRING | 1.65 |
23 | 10FAZ | INTERNAL GERI LEVER | 3.85 |
24 | 13KF3 | ARM CAM | 6.05 |
25 | 13JXP | FIXING BOLT | 1.65 |
26 | 10TLM | FIXING BOLT | 1.65 |
27 | 10SH9 | FIXING BOLT | 1.65 |
28 | 10CT3 | ARM CAM SPRING COVER | 2.75 |
29 | 13K9E | ROTOR | 12.65 |
30 | 107WM | MOUNTING CAM COVER | 3.85 |
31 | 13P0U | ARM FIXING SHAFT | 6.05 |
32 | 13CV5 | BAIL ASSEMBLY | 28.05 |
33 | 10HB7 | ROTATING FRAME RING | 2.75 |
34 | 10L1Z | FIXING BOLT | 1.10 |
35 | 10AEX | ROLLER CLUTCH COVER PLATE | 1.65 |
36 | 10QPH | ROLLER CLUTCH ASSEMBLY | 11.55 |
37 | 104JD | BALL BEARING (7 X 13 X 4) | 13.75 |
38 | 10QWG | PINION GEAR | 12.65 |
39 | 10D7P | FRICTION RING | 3.85 |
40 | 10LCS | FIXING BOLT | 1.10 |
41 | 10D8Z | INNER GERI HITARI | 1.65 |
42 | 10DC5 | STOPPER CAM | 1.65 |
43 | 10DCS | CLICK SPRING | 1.10 |
44 | 10FPW | STOPPER LEVER | 1.65 |
45 | 10SUK | FIXING BOLT | 1.65 |
46 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
47 | 1092S | DRIVE GEAR ASSEMBLY | 22.55 |
48 | 1003B | WASHER | 2.75 |
49 | 13M60 | LID | 11.55 |
50 | 10SHA | FIXING BOLT | 1.65 |
51 | 10SHX | FIXING BOLT | 1.65 |
52 | 10PXV | HANDLE SHAFT SEAL | 2.75 |
53 | 10C82 | HANDLE SHAFT FLANGE (B) | 3.85 |
54 | 13MH6 | HANDLE SHAFT FLANGE | 9.35 |
56 | 10PXZ | HANDLE KNOB BUSH | 1.65 |
58 | 101BD | WASHER | 2.75 |
60 | 10LFA | FIXING BOLT | 1.10 |
61 | 10TNJ | HANDLE CAP | 3.85 |
62 | 13ERW | HANDLE ASSEMBLY | 28.05 |
63 | 10MGL | FIXING BOLT | 1.10 |
64 | 104WG | SLIDER | 8.25 |
65 | 10QWH | SLIDER GUIDE | 1.65 |
66 | 10QWF | SLIDER GEAR | 1.65 |
67 | 10QWJ | INTERMEDIATE GEAR | 2.75 |
68 | 10RX2 | FIXING BOLT | 1.65 |
69 | 10SGA | BODY GUARD | 11.55 |
70 | 13DCK | BODY ASSEMBLY | 13.75 |
71 | 10909 | O-RING | 1.65 |
72 | 10N3Q | HANDLE SCREW CAP | 6.05 |
73 | 100MF | WASHER | 2.75 |
74 | 10HHQ | WASHER | 1.65 |
ITOS | 10G4L | SPOOL THREAD STOPPER SEAL (ACCESSORY) | 1.65 |
MH01 | 13NJM | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
PUNT | 13FLX | INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) | 2.75 |
