[SHIMANO] Genuine Spare Parts for 21 SPHEROS SW 8000HG Product Code: 043658 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.102 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/5181

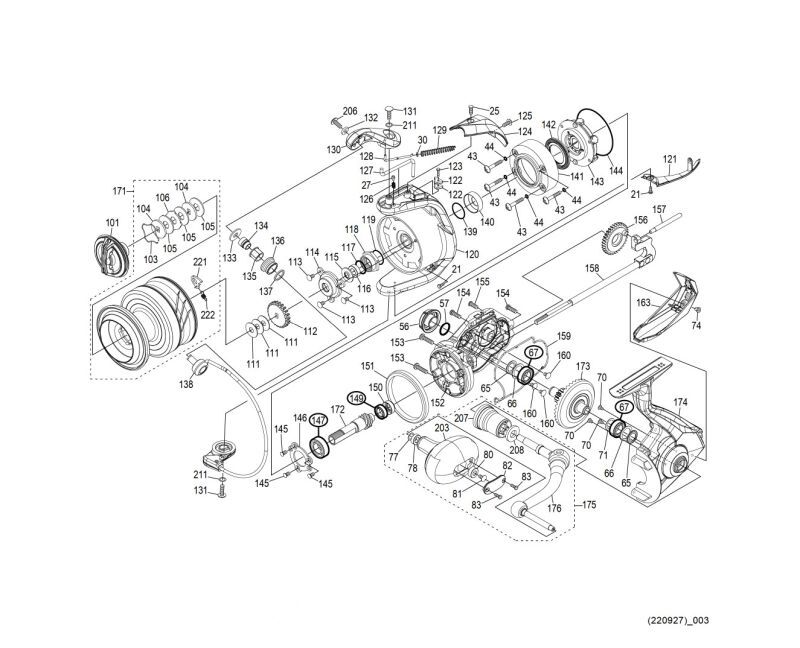

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
21 | 10L1R | FIXING BOLTS | 1.10 |
25 | 10LFK | FIXING BOLT | 1.10 |
27 | 10HEA | BAIL TRIP LEVER CLICK PIN | 1.65 |
30 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
43 | 10A6S | FIXING BOLT | 1.65 |
44 | 108WW | O-RING | 1.65 |
56 | 101HW | HANDLE SCREW CAP | 3.85 |
57 | 108WH | O-RING | 1.65 |
65 | 10TGJ | BEARING SEAL | 1.65 |
66 | 10BGF | WASHER | 1.65 |
67 | 104PR | BALL BEARING (8 X 14 X 4) | 9.35 |
70 | 1055H | FIXING BOLT | 1.65 |
71 | 10DKJ | WASHER | 2.20 |
74 | 10LHR | FIXING BOLT | 1.10 |
77 | 104FH | WASHER | 2.20 |
78 | 104UJ | HANDLE GRIP BUSH (B) | 1.65 |
80 | 10EU0 | HANDLE GRIP BUSH (A) | 1.65 |
81 | 10LFA | FIXING BOLT | 1.10 |
82 | 10SVU | HANDLE KNOB NAMEPLATE | 1.10 |
83 | 103NJ | FIXING BOLT | 1.10 |
101 | 10SKQ | DRAG KNOB ASSEMBLY | 11.00 |
103 | 10B8Q | STOPPER SPRING | 1.65 |
104 | 10BC9 | OVAL WASHER | 1.65 |
105 | 10348 | DRAG WASHER | 3.85 |
106 | 102Z9 | EAR WASHERS | 1.65 |
111 | 101DJ | SPOOL WASHER | 2.20 |
112 | 10SGV | SPOOL HOLDER | 1.65 |
113 | 10QG5 | FIXING BOLT | 1.10 |
114 | 10E3R | RETAINER | 1.65 |
115 | 10E3Q | BEARING SEAL | 1.65 |
116 | 10E40 | ROTOR BEARING COLLAR | 1.65 |
117 | 1090A | O-RING | 1.65 |
118 | 100KF | ROTOR NUT | 3.85 |
119 | 108WT | O-RING | 1.65 |
120 | 10SKJ | ROTOR | 15.40 |
121 | 10MND | BALE MOUNTING COVER | 6.05 |
122 | 107EU | BALANCER B | 1.65 |
123 | 10LSG | FIXING BOLT | 1.10 |
124 | 10880 | ARM CAM SPRING COVER | 6.05 |
125 | 10LFF | FIXING BOLT | 1.10 |
126 | 10HEK | BAIL TRIP LEVER CLICK SPRING | 1.10 |
127 | 106KN | BAIL TRIP LEVER CLICK SPRING | 2.75 |
128 | 105LV | ARM SPRING GUIDE (A) | 1.65 |
129 | 105LL | ARM CAM SPRING | 1.65 |
130 | 10SWX | ARM CAM | 3.30 |
131 | 10TXJ | FIXING BOLT | 1.65 |
132 | 10684 | BALANCER | 1.65 |
133 | 107X5 | LINE ROLLER WASHER | 1.65 |
134 | 10R3S | LINE ROLLER COLLAR | 2.75 |
135 | 107RP | LINE ROLLER BUSHING | 1.65 |
136 | 10KXY | LINE ROLLER | 6.05 |
137 | 1072L | LINE ROLLER SPACER | 1.65 |
138 | 10TL0 | BAIL ASSEMBLY | 6.60 |
139 | 108WV | O-RING | 1.65 |
140 | 10K7S | ROTOR RINGS | 3.85 |
141 | 10E3J | ROLLER CLUTCH SEAL COVER | 2.75 |
142 | 10MH2 | ROLLER CLUTCH SEAL | 2.75 |
143 | 10TCX | ROLLER CLUTCH ASSEMBLY | 22.55 |
144 | 108WX | O-RING | 2.75 |
145 | 100WY | FIXING BOLT | 1.65 |
146 | 10E49 | BEARING PUSH PLATE | 1.65 |
147 | 10BGA | BALL BEARING (9X17X5) | 7.15 |
149 | 10S63 | BALL BEARING (7X11X3) | 7.15 |
150 | 10E3P | PINION GEAR BUSHING (REAR) | 1.65 |
151 | 104G8 | FRICTION RING | 1.65 |
152 | 10TL6 | BODY ASSEMBLY | 29.15 |
153 | 10L9U | FIXING BOLT | 1.10 |
154 | 10SGK | FIXING BOLT | 1.65 |
155 | 10E47 | FIXING BOLT | 1.65 |
156 | 10E46 | SLIDER GEAR | 3.85 |
157 | 10E3V | SLIDER GUIDE | 2.75 |
158 | 10SZ0 | MAIN SHAFT ASSEMBLY | 9.35 |
159 | 10E3M | BODY SEAL | 3.85 |
160 | 10LHN | FIXING BOLT | 1.10 |
163 | 1002R | BODY GUARD | 6.05 |
171 | 10SWY | SPOOL ASSEMBLY | 66.00 |
172 | 10E3U | PINION GEAR | 11.55 |
173 | 10E48 | DRIVE GEAR ASSEMBLY | 22.55 |
174 | 10TKM | COVER ASSEMBLY | 28.05 |
175 | 10SKC | HANDLE ASSEMBLY | 49.50 |
176 | 10TL1 | HANDLE SHANK ASSEMBLY | 38.50 |
203 | 10R8C | HANDLE KNOB ASSEMBLY | 13.20 |
206 | 10PMW | FIXING BOLT | 1.10 |
207 | 10RVF | HANDLE SHAFT FLANGE ASSEMBLY | 7.15 |
208 | 10SVY | HANDLE WASHER | 1.10 |
211 | 10G4W | HANDLE WASHER | 1.10 |
221 | 13YDN | SPOOL PIN | 1.10 |
222 | 10PH2 | SPOOL PIN SPRING | 1.10 |
MH01 | 13NBZ | NAMEPLATE ON THE BACK OF THE LEG | 1.10 |
PUNT | 13FMP | INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) | 1.65 |
