[SHIMANO] Genuine Spare Parts for 19 STRADIC 2500SHG Product Code: 040176 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.102 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/4580

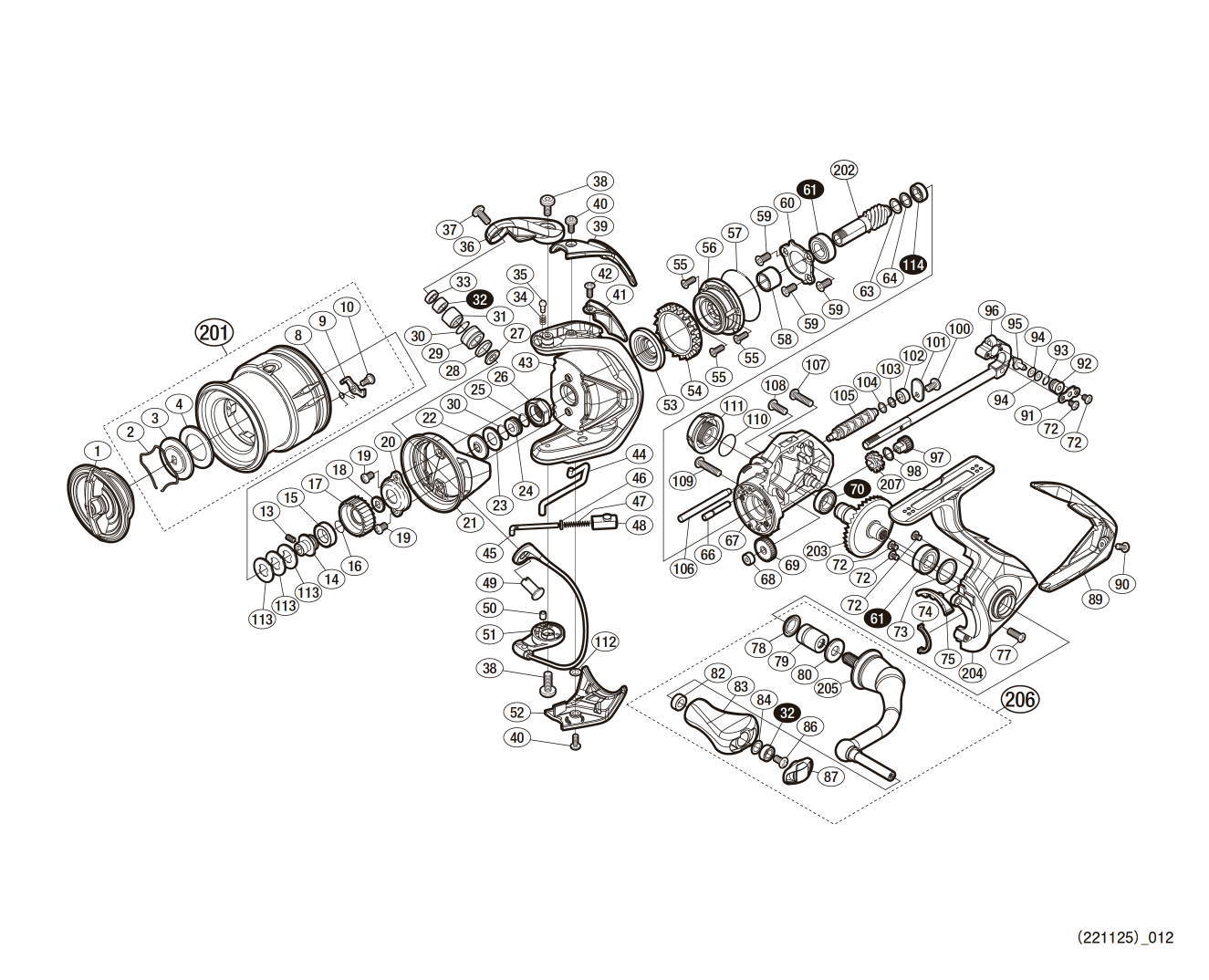

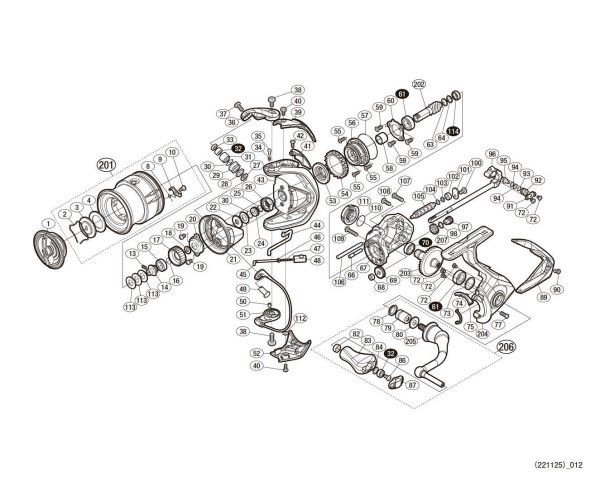

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10180 | DRAG KNOB ASSEMBLY | 11.55 |
2 | 10B8N | STOPPER SPRING | 1.65 |
3 | 10BBM | OVAL WASHER | 1.65 |
4 | 102ZQ | DRAG WASHER | 1.65 |
8 | 10TNY | SPOOL PIN SPRING | 1.65 |
9 | 10TNW | SPOOL PIN | 1.65 |
10 | 10TRB | FIXING BOLT | 1.65 |
13 | 10PN3 | SET SCREW (M2 X 5) | 1.65 |
14 | 10THY | SPOOL SHAFT BEARING GUIDE | 3.85 |
15 | 10J3F | SPOOL BUSH | 1.65 |
16 | 107V2 | RATCHET SPRING | 1.65 |
17 | 10SYS | DRAG CLICK EMITTING RATCHET | 2.75 |
18 | 103PE | SPOOL BEARING | 1.65 |
19 | 103GW | FIXING BOLT | 1.65 |
20 | 1076N | RETAINER | 2.75 |
21 | 10RSC | ROTOR FLANGE | 6.05 |
22 | 1017W | ROTOR BEARING SEAL | 1.65 |
23 | 10DXD | WASHER | 1.10 |
24 | 10RDL | MAIN SHAFT COLLAR | 3.85 |
25 | 10DXE | O-RING | 1.65 |
26 | 1018F | ROTOR NUT | 6.05 |
27 | 10TJM | LINE ROLLER BEARING COLLAR | 2.75 |
28 | 10RFZ | LINE ROLLER SPACER | 1.65 |
29 | 1009A | LINE ROLLER | 6.05 |
30 | 1009E | O-RING | 1.65 |
31 | 1009K | LINE ROLLER BUSHING | 1.65 |
32 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
33 | 10187 | LINE ROLLER COLLAR | 2.75 |
34 | 10HE7 | CLICK SPRING | 1.65 |
35 | 106ZC | CLICK PIN | 1.65 |
36 | 10RSF | ARM CAM | 3.85 |
37 | 10K90 | FIXING BOLT | 1.10 |
38 | 10PS5 | FIXING BOLT | 1.65 |
39 | 10RS1 | ARM CAM SPRING COVER | 3.85 |
40 | 10PS2 | FIXING BOLT | 1.65 |
41 | 10RRW | BALANCER | 2.75 |
42 | 103KS | FIXING BOLT | 1.10 |
43 | 10RRR | ROTOR | 28.05 |
44 | 1018H | INTERNAL GERI LEVER | 2.75 |
45 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
46 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
47 | 105R6 | ARM CAM SPRING | 1.65 |
48 | 107AB | ARM CAM SPRING SEAT | 2.75 |
49 | 10TPC | ARM FIXED SHAFT | 6.05 |
50 | 1009B | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
51 | 10DZC | BAIL ASSEMBLY | 45.10 |
52 | 10RSA | BAIL MOUNTING CASE COVER | 3.85 |
53 | 101D5 | ROTOR COLLAR | 9.35 |
54 | 10QXQ | FRICTION RING | 2.75 |
55 | 100WT | FIXING BOLT | 1.65 |
56 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
57 | 1009Z | O-RING | 1.65 |
58 | 1009Y | ROLLER CLUTCH INNER | 3.85 |
59 | 100WY | FIXING BOLT | 1.65 |
60 | 10DWD | BEARING PUSH PLATE | 1.65 |
61 | 10DZB | BALL BEARING (7X13X4) | 7.15 |
63 | 10SYU | WASHER | 1.65 |
64 | 10HE5 | WASHER | 1.65 |
66 | 10DVW | INTERMEDIATE GEAR SHAFT | 3.85 |
67 | 10RSG | BODY | 22.55 |
68 | 1009G | WORM SHAFT BUSHING | 1.65 |
69 | 10DK0 | WORM SHAFT GEAR | 9.35 |
70 | 107FA | BALL BEARING (7 X 11 X 3) | 7.15 |
72 | 1055H | FIXING BOLT | 1.65 |
73 | 10DZ3 | WASHER | 2.20 |
74 | 1009W | COVER FLANGE SEAL | 2.75 |
75 | 1017Y | INNER GERI CONTACT | 1.65 |
77 | 10M2G | FIXING BOLT | 1.10 |
78 | 10PXV | HANDLE SHAFT SEAL | 2.75 |
79 | 100A0 | HANDLE SHAFT FLANGE (B) | 6.05 |
80 | 10H9N | HANDLE WASHER | 1.65 |
82 | 10PXZ | HANDLE KNOB BUSH | 1.65 |
83 | 10328 | HANDLE KNOB | 11.55 |
84 | 101BD | HANDLE WASHER | 2.75 |
86 | 10LFA | FIXING BOLT | 1.10 |
87 | 10TNJ | HANDLE CAP | 3.85 |
89 | 10RS0 | BODY GUARD | 6.05 |
90 | 10PRZ | FIXING BOLT | 1.65 |
91 | 10182 | WORM SHAFT PIN PUSH PLATE | 1.65 |
92 | 1009L | WORM SHAFT PIN COLLAR | 1.65 |
93 | 100WX | O-RING | 1.65 |
94 | 10RKQ | WASHER | 2.20 |
95 | 1018D | WORM SHAFT PIN | 6.05 |
96 | 10DYR | MAIN SHAFT ASSEMBLY | 20.35 |
97 | 10DK2 | INTERMEDIATE GEAR (S) | 8.25 |
98 | 10TBA | WASHER | 1.65 |
100 | 10QG5 | FIXING BOLT | 1.10 |
101 | 10S7C | WORM SHAFT COVER | 1.65 |
102 | 1009C | WORM SHAFT BUSHING | 1.65 |
103 | 10ECK | WASHER | 1.10 |
104 | 101BS | WORM SHAFT WASHER | 2.75 |
105 | 10DVY | WORM SHAFT | 6.05 |
106 | 10DVX | SLIDER GUIDE (A) | 1.65 |
107 | 100WP | FIXING BOLT | 1.65 |
108 | 10L6D | FIXING BOLT | 1.10 |
109 | 10L6N | FIXING BOLT | 1.65 |
110 | 108WH | O-RING | 1.65 |
111 | 10RSK | HANDLE SCREW CAP | 3.85 |
112 | 10RTV | SPOOL WASHER | 2.75 |
113 | 101TA | SPOOL WASHER | 2.20 |
114 | 104JZ | BALL BEARING (5 X 8 X 2.5) | 13.75 |
201 | 13CGY | SPOOL ASSEMBLY | 56.10 |
202 | 10DWZ | PINION GEAR | 11.55 |
203 | 10R8X | DRIVE GEAR | 17.05 |
204 | 13DW2 | COVER ASSEMBLY | 22.55 |
205 | 10DZJ | HANDLE | 28.05 |
206 | 100WS | HANDLE ASSEMBLY | 56.10 |
207 | 10S9M | INTERMEDIATE GEAR (L) | 9.35 |
MH01 | 13NNA | NAMEPLATE ON BACK OF LEG | 2.75 |
PUNT | 13FM2 | INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) | 3.85 |
