[SHIMANO] Genuine Spare Parts for 15 BB-X TECHNIUM C3000DXG S RIGHT Product Code: 034861 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.12 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/2867

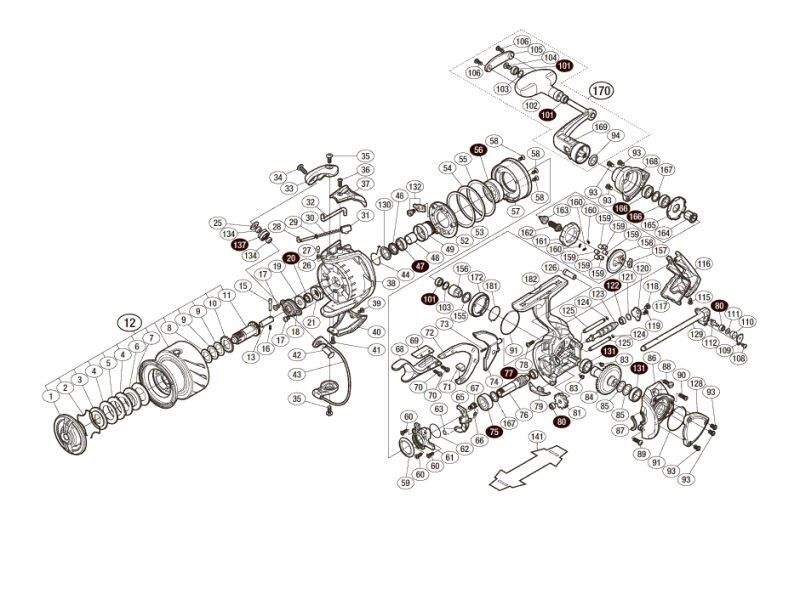

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13QPY | REEL BAG (ACCESSORY) | 11.55 |
1 | 13BH9 | DRAG KNOB SET | 45.10 |
2 | 10B6J | STOPPER SPRING | 1.65 |
3 | 10Q6Q | OVAL WASHER | 1.65 |
4 | 102ZP | DRAG WASHER (A) | 1.65 |
5 | 10BCP | DRAG EAR WASHER | 6.05 |
6 | 10B9R | OVAL WASHER | 1.65 |
7 | 10C1D | DRAG WASHER | 1.65 |
8 | 10BUL | SPOOL WASHER SET | 1.10 |
9 | 10BUK | SPOOL WASHER | 1.10 |
10 | 103MK | SPOOL GUIDE (A) | 1.65 |
11 | 13ARZ | SPOOL WASHER (B) SET | 22.55 |
12 | 13AQM | SPOOL ASSEMBLY | 168.30 |
13 | 13LMH | SPOOL GUIDE COLLAR | 3.85 |
15 | 13LQ0 | SPOOL GUIDE FIXING PIN | 1.65 |
16 | 13K4Y | SPOOL PIN FIXING SPRING | 1.65 |
17 | 1055M | FIXING BOLT | 1.10 |
18 | 13KSS | RETAINER | 1.65 |
19 | 107L2 | ROTOR BEARING SEAL | 3.85 |
20 | 103AZ | ROTOR FRAME GUIDE COLLAR ASSEMBLY | 17.05 |
21 | 13KPE | ROTOR NUT | 6.05 |
25 | 1079U | ARM ROLLER RETAINER | 1.65 |
26 | 10986 | CLICK SPRING | 1.10 |
27 | 106UX | CLICK PIN | 1.65 |
28 | 105YZ | ARM SPRING GUIDE (A) | 3.85 |
29 | 1064R | ARM SPRING GUIDE (A) COLLAR | 1.65 |
30 | 105R5 | ARM CAM SPRING | 1.65 |
31 | 107AA | ARM CAM SPRING SEAT | 2.75 |
32 | 13KRP | BAIL TRIP LEVER | 2.75 |
33 | 13KG2 | ARM CAM | 11.55 |
34 | 10K40 | FIXING BOLT | 2.75 |
35 | 10PS5 | FIXING BOLT | 1.65 |
36 | 10PS6 | FIXING BOLT | 1.10 |
37 | 13KL3 | ARM CAM SPRING COVER | 6.05 |
38 | 13AR8 | ROTOR | 28.05 |
39 | 103N8 | FIXING BOLT | 1.10 |
40 | 13KNV | BAIL MOUNTING BRACKET COVER | 6.05 |
41 | 10MT3 | FIXING BOLT | 1.10 |
42 | 10Q3J | ARM FIXING SHAFT | 6.05 |
43 | 13ARE | BAIL ASSEMBLY | 56.10 |
44 | 13AYE | BRAKE CLAW SPRING | 1.65 |
46 | 13KTS | ROTOR COLLAR | 6.05 |
47 | 104PN | BALL BEARING (7 X 11 X 3) | 13.75 |
48 | 13SMA | PINION GEAR COLLAR | 1.65 |
49 | 13B0M | BRAKE BEARING STOPPER RING | 9.35 |
52 | 13AYD | BRAKE PLATE | 9.35 |
53 | 13MKH | BRAKE ADJUSTMENT WASHER | 1.65 |
54 | 13MK9 | BRAKE WASHER | 1.65 |
55 | 13MKD | BRAKE WASHER | 1.65 |
56 | 10KXA | BALL BEARING (12 X 21 X 5) | 17.05 |
57 | 13AS2 | BRAKE CORE | 28.05 |
58 | 10MGG | FIXING BOLT | 1.10 |
59 | 13NM5 | BRAKE BEARING SEAL | 2.75 |
60 | 10MGM | FIXING BOLT | 1.10 |
61 | 13L0H | BEARING PUSH PLATE | 9.35 |
62 | 13M30 | O-RING | 3.85 |
63 | 13AZ1 | BRAKE SWITCHING SPRING | 1.65 |
65 | 13ATQ | BRAKE LEVER PLATE | 6.60 |
66 | 13AZ2 | SAFETY BRAKE CLAW SPRING | 1.65 |
67 | 10LC5 | LEVER PLATE FIXING SHAFT | 2.75 |
68 | 13LTZ | BRAKE LEVER (A) | 39.60 |
69 | 13MM2 | BRAKE LEVER NAMEPLATE | 4.95 |
70 | 13MK1 | FIXING BOLT | 2.75 |
71 | 13LV5 | BRAKE SHOE | 1.65 |
72 | 13MLP | BRAKE LEVER (B) | 39.60 |
73 | 13LUM | BRAKE LEVER SPRING | 1.65 |
74 | 13NKH | BRAKE LEVER SEAT | 3.85 |
75 | 104Q6 | BALL BEARING (7 X 14 X 5) | 13.75 |
76 | 13L9N | PINION GEAR | 17.05 |
77 | 104K1 | BALL BEARING (5 X 8 X 2.5) | 13.75 |
78 | 13JPA | FIXING BOLT | 1.65 |
79 | 107DZ | BAIL TRIP STRIKE | 1.65 |
80 | 10PC0 | BALL BEARING (2 X 5 X 2.5) | 13.75 |
81 | 13LYD | WORM SHAFT GEAR | 9.35 |
83 | 13JT1 | FIXING BOLT | 1.65 |
84 | 13LDH | DRIVE GEAR | 34.10 |
85 | 13B0Q | WASHER | 1.10 |
86 | 13AS8 | LID | 67.65 |
87 | 13M6K | LID FLANGE SEAL | 2.75 |
88 | 10L5M | FIXING BOLT | 1.65 |
89 | 10M2C | FIXING BOLT | 1.10 |
90 | 103CG | FIXING BOLT | 1.10 |
91 | 13JZX | O-RING | 3.85 |
93 | 13M6Z | FIXING BOLT | 2.75 |
94 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
101 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
102 | 1040S | HANDLE GRIP | 17.05 |
103 | 104FH | WASHER | 2.20 |
104 | 103E9 | FIXING BOLT | 1.10 |
105 | 108X1 | HANDLE SAW BLADE NAMEPLATE | 3.85 |
106 | 103NH | FIXING BOLT | 1.10 |
108 | 10LV7 | FIXING BOLT | 1.10 |
109 | 10HAC | CROSS GEAR PIN PUSH PLATE | 1.65 |
110 | 10JV1 | CROSS GEAR PIN COLLAR | 2.75 |
111 | 10RKQ | WASHER | 2.20 |
112 | 106VH | WORM SHAFT PIN | 3.85 |
115 | 106ZG | FIXING BOLT | 1.65 |
116 | 13MV0 | BODY GUARD | 11.55 |
117 | 13MQE | BODY COVER | 2.75 |
118 | 103C8 | FIXING BOLT | 1.10 |
119 | 10LV6 | FIXING BOLT | 1.10 |
120 | 13MPX | WORM SHAFT COVER | 1.65 |
121 | 10J7K | WASHER | 1.10 |
122 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
123 | 13M1Z | WORM SHAFT | 9.35 |
124 | 10JAB | O-RING | 1.65 |
125 | 13LR7 | SLIDER GUIDE | 6.05 |
126 | 13AZ0 | BRAKE LEVER FIXED SHAFT | 6.05 |
128 | 13NKM | COVER PLATE | 34.10 |
129 | 13ARY | MAIN SHAFT ASSEMBLY | 28.05 |
130 | 13ATS | SEAL | 2.75 |
131 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
132 | 13DBN | BRAKE CLAW ASSEMBLY | 3.85 |
134 | 1020K | LINE ROLLER BEARING COLLAR | 5.50 |
137 | 10TSK | LINE ROLLER (WITH BEARING) | 22.55 |
141 | 10PBS | LEG PROTECTION SHEET (ACCESSORY) | 2.75 |
155 | 13NKK | ROLLER CLUTCH INNER COLLAR | 2.75 |
156 | 13NLK | ROLLER CLUTCH INNER | 6.05 |
157 | 13LVJ | BRAKE CLAW | 1.65 |
158 | 13NL5 | ROLLER CLUTCH GUIDE | 2.75 |
159 | 13NLE | ROLLER CLUTCH ROLLER | 1.65 |
160 | 13NLN | ROLLER CLUTCH SPRING | 1.65 |
161 | 13NLC | ROLLER CLUTCH OUTER | 3.85 |
162 | 13M79 | FIXING BOLT | 2.75 |
163 | 13MD3 | HANDLE SHAFT LOOSENING STOPPER WASHER | 1.65 |
164 | 13MCV | HANDLE SHAFT (B) | 9.35 |
165 | 13NLQ | ROLLER CLUTCH PLATE | 20.35 |
166 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
167 | 13MGK | WASHER | 1.65 |
168 | 13NKL | UNIT PLATE | 34.10 |
169 | 13AST | HANDLE | 56.10 |
170 | 13EMF | HANDLE ASSEMBLY | 84.15 |
172 | 13ATT | BRAKE GEAR ASSEMBLY | 3.85 |
181 | 13LLJ | STOPPER SPRING | 1.65 |
182 | 13ARQ | BODY | 168.30 |
AC02 | 13R2V | NO. STICKERS (ACCESSORY) | 2.75 |
BNKI | 13R0P | EXPLODED VIEW (ACCESSORY) | 1.65 |
MH01 | 13NFD | NAMEPLATE ON BACK OF LEG | 2.75 |
RC02 | 13ESJ | ROLLER CLUTCH ASSEMBLY | 21.45 |
TRST | 13PN3 | INSTRUCTION MANUAL (ACCESSORY) | 2.75 |
