[SHIMANO] Genuine Spare Parts for 11-16 OCEA JIGGER 11 1500PG Product code: 027467 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Not available

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

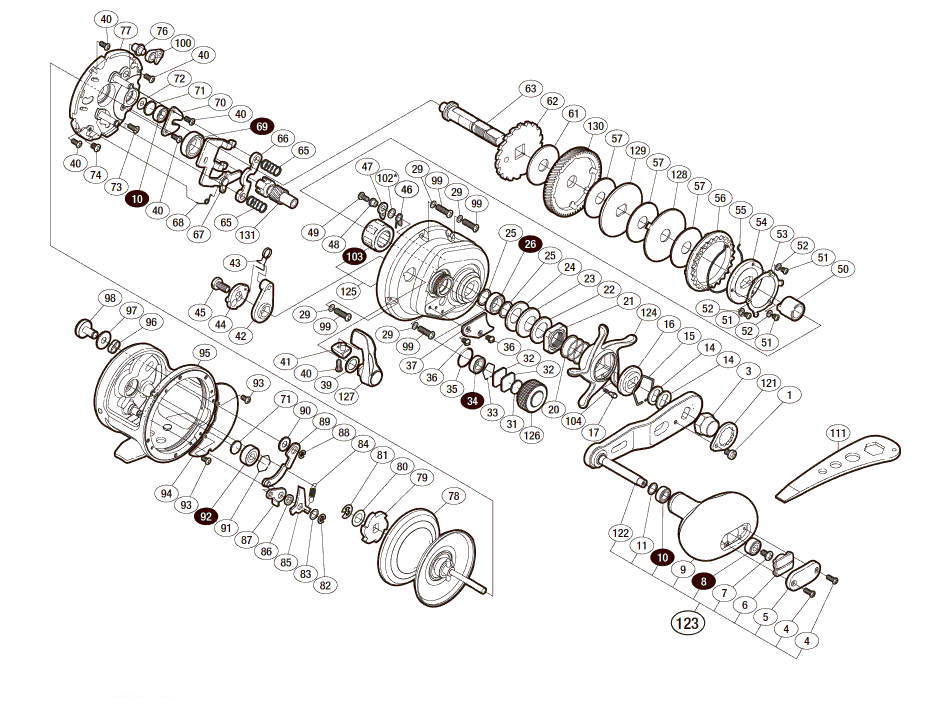

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "103 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10QG0	FIXING BOLT	1.10
3	10Q1L	HANDLE FIXING NUT	6.05
4	103NH	FIXING BOLT	1.10
5	108SQ	HANDLE GRIP NAMEPLATE	3.85
6	10B97	HANDLE CAP	2.75
7	103E9	FIXING BOLT	1.10
8	10KX1	BALL BEARING (4X9X4)	13.75
9	13V0M	HANDLE KNOB	11.55
10	105BP	BALL BEARING (5X9X3)	13.75
11	10HV3	WASHER	1.10
14	107QQ	HANDLE HOLDER WASHER	1.65
15	10KXV	STAR DRAG CLICK PLATE EXTRACTION STOP	1.65
16	10J26	STAR DRAG CLICK PLATE	1.65
17	10BT0	CLICK PIN	1.65
20	10A75	STAR DRAG SPRING	2.75
21	10A3C	STAR DRAG FIXING NUT	2.75
22	10BR1	BEARING HOLDER	1.65
23	10EW3	SALA SPRING (DB8L)	1.65
24	1052E	DISK SPRING (DB8H)	1.65
25	105PW	STAR DRAG BEARING WASHER	1.10
26	10EX8	BALL BEARING (8X12X3.5)	13.75
29	10J4B	BEARING WASHER (8 X 12 X 3.5)	1.65
31	10896	MECHANICAL BRAKE WASHER	1.10
32	105N0	SPOOL DRAG WASHER	1.10
33	10GEW	BEARING PULL-OUT STOPPER	1.10
34	104JS	BALL BEARING (6X10X3)	13.75
35	10LAF	O-RING	1.65
36	13M6U	FIXING BOLT	3.85
37	13U6Q	BODY A MODEL NAMEPLATE	6.05
39	109RG	CLUTCH LEVER WASHER	1.65
40	10LVJ	FIXING BOLT	1.10
41	10C65	CLUTCH LEVER PROTECTOR	1.65
42	10L2B	CLUTCH CAM COLLAR	3.85
43	10JYZ	CLUTCH LEVER SPRING	1.65
44	1084J	CLUTCH CAM	3.85
45	10F8M	CLUTCH SWITCHING ELEVATOR FIXING BOLT	2.75
46	13VBD	DRAG CLICK SPRING	1.65
47	13UCG	DRAG CLICK PIN	1.65
48	13UCM	DRAG CLICK PIN COLLAR	2.75
49	10MPP	FIXING BOLT	1.10
50	10BPF	INNER TUBE	6.05
51	10MP9	FIXING BOLT	1.10
52	10GD4	WASHER	1.10
53	13VCD	DRAG CLICK SYRATCHET PUSH SAE	2.75
54	13UTW	STAR DRAG PLATE	3.85
55	13VC6	DRAG CLICK RATCHET SPRING	2.75
56	13VBY	DRAG CLICK RATCHET	3.85
57	10L8H	STAR DRAG WASHER	6.05
61	10CLY	STAR DRAG WASHER	9.35
62	10A2Q	STOPPER GEAR ASSEMBLY	3.85
63	10D6M	DRIVE GEAR SHAFT	13.75
65	104C3	CLUTCH YOKE SPRING	1.65
66	10484	CLUTCH YOKE	2.75
67	10MU7	CLUTCH LEVER PLATE ASSEMBLY	9.35
68	10QCU	CLUTCH CLAW SPRING	1.65
69	10KX7	BALL BEARING (10X15X4)	13.75
70	109VJ	DRIVE GEAR SHAFT FIXING PLATE	1.65
71	10GEU	CROSS GEAR SHAFT CONTACT	1.10
72	10GA0	WASHER	1.10
73	10MGL	FIXING BOLT	1.10
74	10MPG	FIXING BOLT	1.10
76	10PFR	STOPPER FIXING SHAFT	1.65
77	13SXZ	BODY FIXING PLATE	34.10
78	13GQY	SPOOL ASSEMBLY	73.15
79	13T5B	F STOPPER GEAR	1.65
80	10HWX	MAIN GEAR SHAFT ADJUSTMENT WASHER	1.65
81	105NJ	E TYPE RETAINING RING 4	1.10
82	105NE	E-TYPE RETAINING RING 3	1.10
83	10G6E	SEAT WASHER	1.10
84	10CBR	STOPPER CLAW SPRING	1.65
85	13T5E	F STOPPER CLAW	1.65
86	10907	F STOPPER RECEIVER	1.65
87	108SH	F STOPPER LEVER	2.75
88	105NK	E TYPE STOPPER WHEEL 2.5	1.10
89	10NL9	F STOPPER LINK	2.75
90	10GA5	F STOPPER LINK	1.10
91	10GGM	BEARING PULL-OUT STOPPER	1.10
92	10KAE	BALL BEARING (4 X 11 X 4)	13.75
93	10LVE	FIXING BOLT	1.10
94	10QCE	FIXING PLATE NAMEPLATE	6.05
95	13G7U	FRAME	134.75
96	104MS	CLICK BEARING	1.65
97	104H2	CLICK BUTTON WASHER (A)	1.10
98	108W2	F STOPPER KNOB	3.85
99	10M2V	FIXING BOLT	1.10
100	10MVZ	STOPPER CLAW ASSEMBLY	3.85
102	13PFE	WASHER	1.10
103	10F3D	ROLLER CLUTCH *Cannot be ordered	17.05
104	10988	CLICK SPRING	1.65
111	10MJ2	SPOOL WRENCH (ACCESSORY)	3.85
121	10QUA	RETAINER	2.75
122	109WQ	HANDLE	22.55
123	13J65	HANDLE ASSEMBLY	56.10
124	106YG	STAR DRAG	22.55
125	13HKM	BODY A SET	90.20
126	13U0E	MECHANICAL BRAKE KNOB	11.55
127	13HLS	CLUTCH LEVER	22.55
128	13V7Z	STAR DRAG WASHER (E)	1.65
129	13V75	STAR DRAG WASHER (C)	1.65
130	13UQ3	DRIVE GEAR	22.55
131	13SL2	PINION GEAR	17.05
BNKI	13WRJ	EXPLODED VIEW (ACCESSORIES)	1.65
TRST	13VPL	INSTRUCTION MANUAL (ACCESSORY)	1.65
