[SHIMANO] Genuine Spare Parts for 19 OCEA JIGGER F CUSTOM 3000HG Product code: 040060 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.102 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/5114

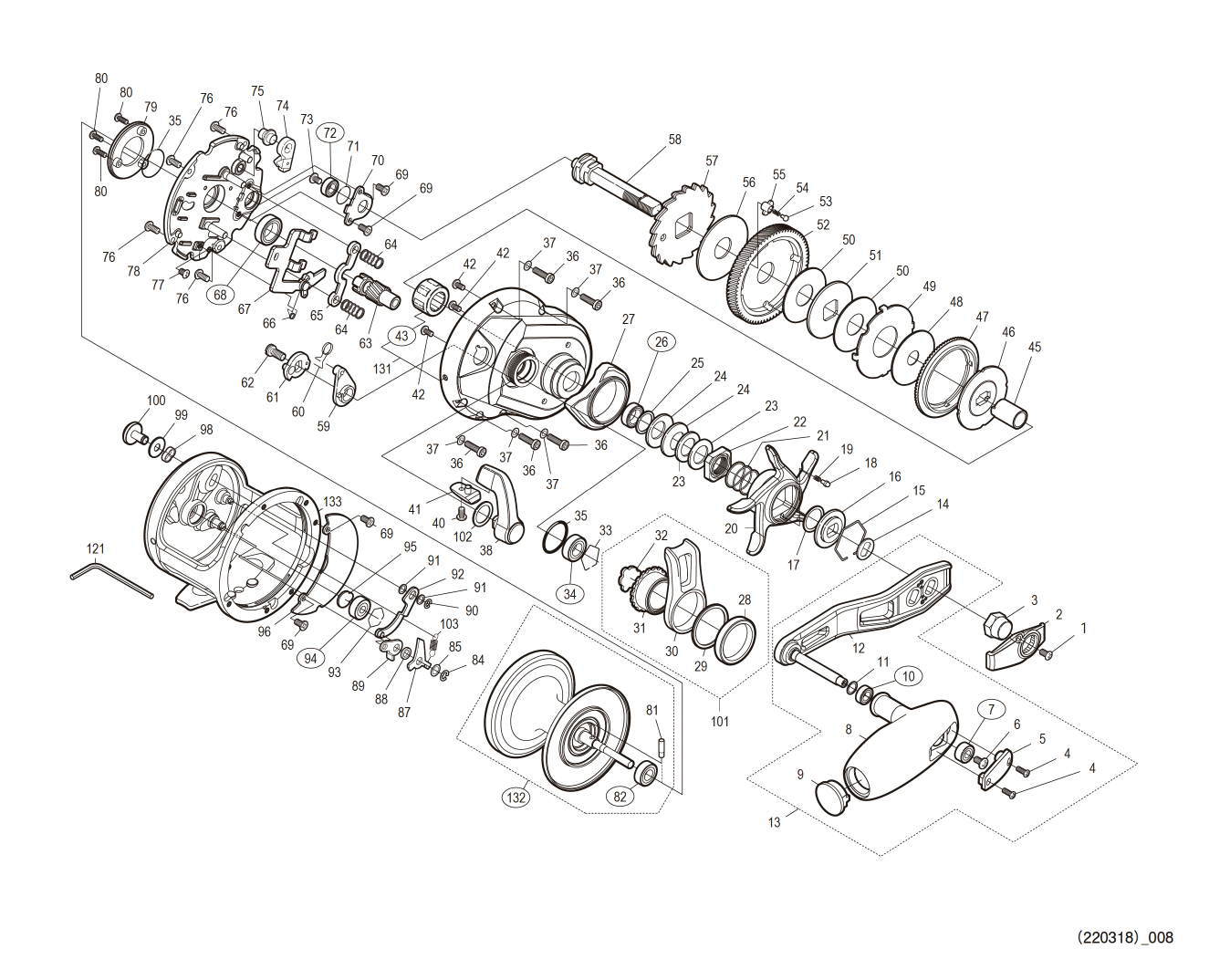

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "82 / BALL BEARING", "81 / Spool Clutch Pin" and "43 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 101AA | FIXING BOLT | 1.65 |
2 | 10TK5 | RETAINER | 2.75 |
3 | 101AS | HANDLE FIXING NUT | 6.05 |
4 | 103NH | FIXING BOLT | 1.10 |
5 | 13MHP | HANDLE KNOB NAMEPLATE | 6.05 |
6 | 103E9 | FIXING BOLT | 1.10 |
7 | 10KX2 | BALL BEARING (4X9X4) | 13.75 |
8 | 13MB8 | HANDLE KNOB | 45.10 |
9 | 13MBA | HANDLE CAP | 1.65 |
10 | 105BP | BALL BEARING (5X9X3) | 13.75 |
11 | 104FH | WASHER | 2.20 |
12 | 13HVM | HANDLE SHAFT ASSEMBLY | 112.20 |
13 | 13JCJ | HANDLE ASSEMBLY | 168.30 |
14 | 107QM | HANDLE HOLDER WASHER | 1.10 |
15 | 10KXX | STAR DRAG CLICK PLATE | 1.65 |
16 | 10J27 | STAR DRAG CLICK PLATE | 1.65 |
17 | 10G6M | WASHER | 1.10 |
18 | 10B27 | CLICK PIN | 1.65 |
19 | 10HZ6 | CLICK SPRING | 1.65 |
20 | 13V3E | STAR DRAG | 45.10 |
21 | 10HZ2 | STAR DRAG SPRING | 1.65 |
22 | 10QY2 | STAR DRAG FIXING NUT | 4.95 |
23 | 10J1N | STAR DRAG SPACER | 1.65 |
24 | 1052E | SALA SPRING (DB8H) | 1.65 |
25 | 10J4J | WASHER | 1.10 |
26 | 105BS | BALL BEARING (8X12X3.5) | 13.75 |
27 | 13U7T | BODY A NAMEPLATE | 3.85 |
28 | 13UDT | LOCK RING | 9.35 |
29 | 13PKD | WASHER (8X12X3.5) | 1.65 |
30 | 13UDW | FALL LEVER | 56.10 |
31 | 13U7Q | MECHANICAL BRAKE KNOB | 17.05 |
32 | 10DXH | MECHANICAL BRAKE WASHER | 1.10 |
33 | 10GGN | STOPPER | 1.10 |
34 | 104JD | BALL BEARING (7X13X4) | 13.75 |
35 | 108W8 | O-RING S-16 | 1.65 |
36 | 10SZN | FIXING BOLT | 1.65 |
37 | 10J4B | CLUTCH WASHER | 1.65 |
38 | 13HN7 | CLUTCH LEVER ASSEMBLY | 22.55 |
40 | 101CP | FIXING BOLT | 1.65 |
41 | 10SL5 | CLUTCH LEVER PROTECTOR | 1.65 |
42 | 10MT3 | FIXING BOLT | 1.10 |
43 | 10F38 | ROLLER CLUTCH BEARING *Cannot be ordered | 22.55 |
45 | 10RSQ | INNER TUBE | 9.35 |
46 | 10SLC | STAR DRAG PLATE | 3.85 |
47 | 10SL7 | DRAG CLICK RATCHET | 3.85 |
48 | 10SLN | STAR DRAG WASHER | 11.55 |
49 | 10SLQ | STAR DRAG WASHER | 2.75 |
50 | 10TJH | STAR DRAG WASHERS | 11.55 |
51 | 10TJ6 | STAR DRAG WASHERS | 2.75 |
52 | 10THZ | DRIVE GEAR | 22.55 |
53 | 10C0S | DRAG CLICK PIN | 2.75 |
54 | 10J89 | DRAG CLICK SPRING | 1.65 |
55 | 10SZP | DRAG SPRING HOLDER | 1.65 |
56 | 10TJD | STAR DRAG WASHER | 9.35 |
57 | 10A2V | STOPPER GEAR ASSEMBLY | 9.35 |
58 | 10RX8 | DRIVE GEAR SHAFT | 13.75 |
59 | 10L29 | CLUTCH CAM COLLAR | 3.85 |
60 | 10JYV | CLUTCH LEVER SPRING | 1.65 |
61 | 1084H | CLUTCH CAM | 3.85 |
62 | 10F8N | FIXING BOLT | 2.75 |
63 | 10SLA | PINION GEAR | 17.05 |
64 | 104C3 | CLUTCH YOKE SPRING | 1.65 |
65 | 10485 | CLUTCH YOKE | 2.75 |
66 | 10QCU | CLUTCH CLAW SPRING | 1.65 |
67 | 10RA5 | CLUTCH LEVER PLATE ASSEMBLY | 13.75 |
68 | 10KX7 | BALL BEARING (10 X 15 X 4) | 13.75 |
69 | 1055F | FIXING BOLT | 1.65 |
70 | 10TJ5 | DRIVE GEAR SHAFT FIXING PLATE | 1.65 |
71 | 10SZ4 | O-RING | 1.65 |
72 | 105BV | BALL BEARING (5X9X3) | 13.75 |
73 | 10PVT | FIXING BOLT | 1.65 |
74 | 10RZ8 | STOPPER CLAW ASSEMBLY | 3.85 |
75 | 10PE1 | STOPPER FIXING SHAFT | 1.65 |
76 | 10LZD | FIXING BOLT | 1.65 |
77 | 103L1 | FIXING BOLT | 1.10 |
78 | 10SLP | MAIN UNIT FIXING PLATE | 34.10 |
79 | 10TJG | DRAINAGE PLATE | 1.65 |
80 | 101AN | FIXING BOLT | 1.10 |
81 | 10RAK | SPOOL CLUTCH PIN *Cannot be ordered | 1.65 |
82 | 108PE | BALL BEARING (6X12X4) *Cannot be ordered | 13.75 |
84 | 105NE | E TYPE STOP RING 3 | 1.10 |
85 | 10DHM | WASHER | 1.10 |
87 | 10905 | F STOPPER CLAW | 1.65 |
88 | 10907 | F STOPPER RECEIVER | 1.65 |
89 | 108SJ | STOPPER LEVER | 2.75 |
90 | 105NK | TYPE E STOPPER RING 2.5 | 1.10 |
91 | 10J18 | F STOPPER LINK | 1.10 |
92 | 10NLA | F STOPPER LINK | 2.75 |
93 | 10GGM | BEARING PULL-OUT STOPPER | 1.10 |
94 | 10KAF | BALL BEARING (4 X 11 X 4) | 13.75 |
95 | 10DXJ | SPOOL SHAFT CONTACT B | 1.65 |
96 | 13T7A | BODY FIXING PLATE NAMEPLATE | 6.05 |
98 | 104MS | CLICK BEARING | 1.65 |
99 | 104H2 | CLICK BUTTON WASHER (A) | 1.10 |
100 | 108W3 | F STOPPER KNOB | 3.85 |
101 | 13HVT | FALL LEVER ASSEMBLY | 78.65 |
102 | 10DS1 | WASHER (A) | 2.75 |
103 | 13T7X | STOPPER CLAW SPRING | 1.65 |
121 | 10SY5 | REEL WRENCH (ACCESSORY) | 1.65 |
131 | 13HNS | MAIN BODY A ASSEMBLY | 90.20 |
132 | 13GUP | SPOOL ASSEMBLY (WITH BEARING) | 78.65 |
133 | 13GA0 | FRAME ASSEMBLY | 179.30 |
BNKI | 13WUF | EXPLODED VIEW (ACCESSORY) | 1.65 |
TRST | 13VTK | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
