[SHIMANO] Genuine Spare Parts for 18 SEPHIA BB C3000S Product Code: 039439 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.10 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4313

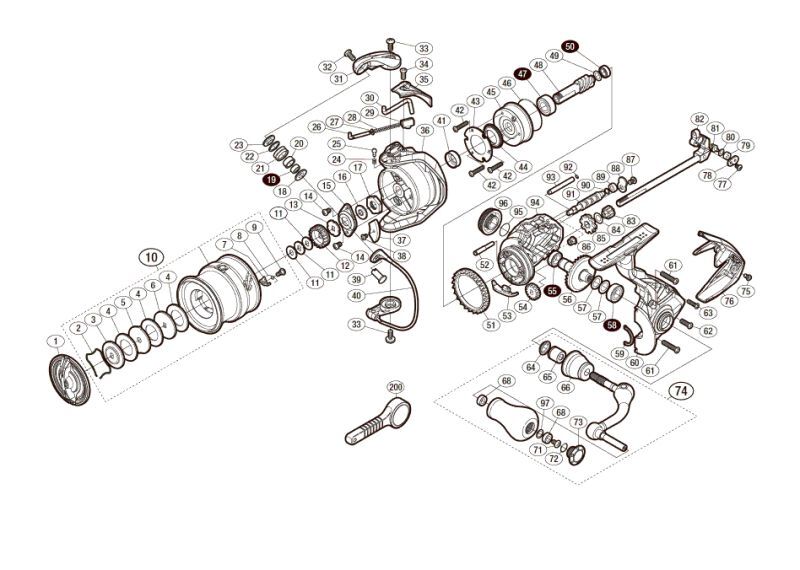

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QN3	REEL BAG	4.95
1	13BNF	DRAG KNOB ASSEMBLY	17.05
2	10MZX	STOPPER SPRING	1.65
3	10QBT	OVAL WASHER	1.65
4	102ZG	DRAG WASHER	1.65
5	102ZD	EAR WASHERS	1.65
6	10BCE	OVAL WASHER	1.65
7	10DS4	SPOOL PINS	1.65
8	10DS6	SPOOL PIN SPRING	1.65
9	10TRB	FIXING BOLT	1.65
10	13CGJ	SPOOL ASSEMBLY	50.60
11	10BXN	SPOOL WASHER SET	1.10
12	103MU	SPOOL HOLDER (A)	1.65
13	10J04	SPOOL WASHER SET (B)	1.65
14	10PME	FIXING BOLT	1.10
15	10TRH	RETAINER	2.75
16	107L4	ROTOR BEARING SEAL	2.75
17	1067Y	ROTOR NUT	3.85
18	13KT1	LINE ROLLER WASHER	1.65
19	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
20	10PFH	ARM ROLLER BUSHING	1.10
21	10JLE	ARM ROLLER	4.95
22	10KFD	ARM ROLLER SPACER	1.65
23	107WZ	ARM ROLLER WASHER	1.65
24	10CH0	INTERNAL GERI LEVER CLICK SPRING	1.65
25	106ZC	CLICK PIN	1.65
26	1061L	ARM SPRING GUIDE (A)	3.85
27	10TYE	SPRING GUIDE (A) COLLAR	1.65
28	105R6	ARM CAM SPRING	1.65
29	107AB	ARM CAM SPRING SEAT	2.75
30	106P2	INTERNAL GERI LEVER	2.75
31	13KLL	ARM CAM	3.85
32	13JXP	FIXING BOLT	1.65
33	10TLM	FIXING BOLT	1.65
34	101CC	FIXING BOLT	1.65
35	10DNX	ARM CAM SPRING COVER	6.05
36	13CPR	ROTOR ASSEMBLY	12.65
37	10S72	BALANCER	1.65
38	10LCE	FIXING BOLT	1.10
39	13KLM	ARM FIXING SHAFT	3.85
40	13CV3	BAIL ASSEMBLY	28.05
41	10JHG	ROTOR COLLAR	3.85
42	103C6	FIXING BOLT	1.10
43	10L62	ROLLER CLUTCH COVER PLATE	1.65
44	10MH6	ROLLER CLUTCH SEAL	3.85
45	10QPN	ROLLER CLUTCH ASSEMBLY	11.55
46	10MLU	O-RING	3.85
47	104Q5	BALL BEARING (7X14X5)	13.75
48	10C4Z	PINION GEAR	12.65
49	10HEP	WASHER	1.10
50	104JZ	BALL BEARING (5X8X2.5)	13.75
51	104FV	FRICTION RING	2.75
52	10CLD	INTERMEDIATE GEAR (B) SHAFT	3.85
53	107E0	INTERNAL GERI HITARI	1.65
54	10HBH	WORM SHAFT GEAR	3.85
55	104PP	BALL BEARING (7X11X3)	13.75
56	10A8R	DRIVE GEAR ASSEMBLY	22.55
57	1003B	WASHER	2.75
58	104JD	BALL BEARING（7X13X4)	13.75
59	10CBD	LID FLANGE SEAL	2.75
60	13DVR	KIFUTA ASSEMBLY WITH LEGS	22.55
61	10RX3	FIXING BOLT	1.65
62	10M2L	FIXING BOLT	1.10
63	10TP1	FIXING BOLT	1.10
64	10PXV	HANDLE SHAFT SEAL	2.75
65	10C82	HANDLE SHAFT FLANGE (B)	3.85
66	13MHH	HANDLE SHAFT FLANGE	9.35
68	10PXZ	HANDLE KNOB BUSH	1.65
71	10LFA	FIXING BOLT	1.10
72	10LAA	O-RING	1.10
73	10BDV	HANDLE CAP	9.35
74	13ERM	HANDLE ASSEMBLY	34.10
75	10RX2	FIXING BOLT	1.65
76	10TN4	BODY GUARD	11.55
77	10LCD	FIXING BOLT	1.65
78	10HAK	WORM SHAFT PIN PUSH PLATE	1.65
79	10JXM	WORM SHAFT PIN COLLAR	1.65
80	101AT	WASHER	2.75
81	10JT4	WORM SHAFT PIN	3.85
82	10SFP	MAIN SHAFT ASSEMBLY	9.35
83	106RH	INTERMEDIATE GEAR (SMALL)	2.75
84	10DHA	WORM SHAFT PIN COLLAR	2.75
85	10CQN	INTERMEDIATE GEAR (LARGE)	6.05
86	106MA	WORM SHAFT BUSHING	1.65
87	10LHQ	FIXING BOLT	1.10
88	10ATJ	WORM SHAFT COVER	1.65
89	106CN	WORM SHAFT BUSHING	1.65
90	10SBX	WORM SHAFT WASHER	6.05
91	1068G	WORM SHAFT	6.05
92	10JAC	O-RING	1.65
93	10H17	SLIDER GUIDE (A)	1.65
94	13L4E	BODY	17.05
95	1090A	O-RING	1.65
96	10N3S	HANDLE SCREW CAP	6.05
97	13ERZ	WASHER	2.75
200	10NC0	REEL WRENCH (ACCESSORY)	1.65
ITOS	10G4L	SPOOL THREAD STOPPER SEAL (ACCESSORY)	1.65
MH01	13NJN	NAMEPLATE ON THE BACK OF THE LEG	2.75
PUNT	13FLV	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	2.75
