[SHIMANO] Genuine Spare Parts for 07-10 OCEA CALCUTTA 10 300 Type J-HG Product code: 026033 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Not available

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

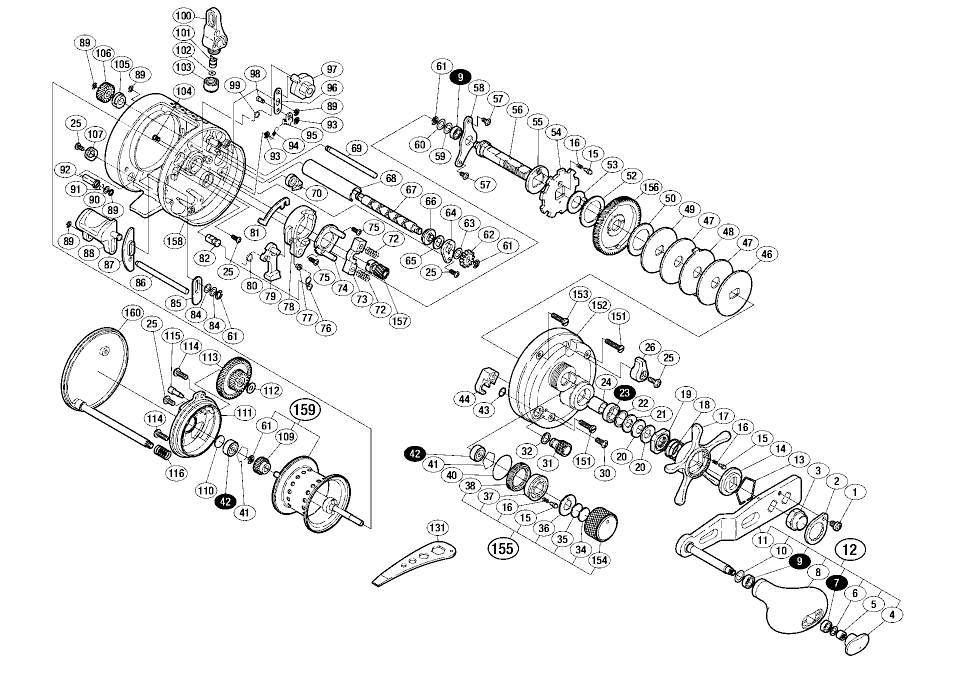

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHU	REEL BAG (ACCESSORY)	9.35
1	10QG0	FIXING BOLT	1.10
2	10QU8	RETAINER	3.85
3	10FT1	HANDLE FIXING NUT	2.75
4	106K1	HANDLE CAP	2.75
5	106C0	GRIP FIXING NUT	1.65
6	105ET	WASHER	1.10
7	104VW	BALL BEARING (4X7X2.5)	13.75
8	105ZA	HANDLE GRIP	17.05
9	104JY	BALL BEARING (5X8X2.5)	13.75
10	105KM	GRIP FIXED SHAFT SEAL	1.10
11	13HTJ	HANDLE	34.10
12	13HZR	HANDLE ASSEMBLY	67.65
13	10KXV	STAR DRAG CLICK PLATE EXTRACTION STOP	1.65
14	10J26	STAR DRAG CLICK PLATE	1.65
15	10BT0	CLICK PIN	1.65
16	10BT2	CLICK SPRING	1.65
17	13UVG	STAR DRAG	17.05
18	10A75	STAR DRAG SPRING	2.75
19	10A0S	STAR DRAG NUT	2.75
20	10EW3	SARA SPRING (DB8L)	1.65
21	1052E	DRAG SPRING (DB8H)	1.65
22	105PW	STAR DRAG BEARING WASHER	1.10
23	10583	BALL BEARING (8X12X3.5)	13.75
24	10BN6	INNER TUBE A-RB	6.05
25	10MPH	FIXING BOLT	1.10
26	10PN5	CLICK KNOB	3.85
27	13U3T	BODY A FIXING BOLT (A)	2.75
29	13UBZ	BODY A FIXING BOLT (B)	2.75
30	10MQ0	FIXING BOLT	1.10
31	13UBW	MAIN UNIT B SHAFT KNOB	3.85
32	109RH	BODY B SHAFT KNOB WASHER	1.10
34	10896	MECHANICAL BRAKE WASHER	1.10
35	1057S	SPOOL SHAFT CONTACT (B)	1.10
36	10L2K	SPOOL DRAG KNOB CLICK PLATE	2.75
37	10BSY	MECHANICAL B KNOB CLICK PIN HOLDER	2.75
38	10L6Z	SPOOL DRAG KNOB SOUND STOP RING	2.75
40	108W8	O-RING S-16	1.65
41	10GEW	BEARING EXTRACTION STOPPER	1.10
42	105C1	BALL BEARING (3X10X4)	13.75
43	108WS	O-RING 4X6	1.10
44	10AY7	CLUTCH CLAW GUIDE	1.65
46	10D3W	STAR DRAG PLATE	2.75
47	10CL3	STAR DRAG WASHER (A)	6.05
48	10J50	STAR DRAG PLATE (B)	1.65
49	106XQ	STAR DRAG PLATE (A)	1.65
50	1071Y	STAR DRAG WASHER (C)	4.95
52	10CJ5	STAR DRAG WASHER (A)	3.85
53	10J54	DRAG CLICK COLLAR	1.65
54	10D7C	STOPPER GEAR	6.05
55	10J56	DRAG SPRING HOLDER	1.65
56	105M9	MAIN GEAR SHAFT	11.55
57	10MT0	FIXING BOLT	1.10
58	109T3	MAIN GEAR SHAFT FIXING PLATE	1.65
59	10HTW	MAIN GEAR SHAFT WASHER (A)	1.10
60	10HTX	MAIN GEAR SHAFT WASHER (B)	1.10
61	105NK	TYPE E RETAINING RING 2.5	1.10
62	104EW	CLICK GEAR	1.65
63	105EJ	ADJUSTMENT WASHER	1.10
64	10FTF	CROSS GEAR NUKEDOME	1.65
65	10FJY	CROSS GEAR SHAFT WASHER (A)	1.10
66	10NDC	CROSS GEAR BEARING A	1.65
67	13S14	CROSS GEAR SHAFT	17.05
68	10NJF	LEVEL-WIND PIPE	6.05
69	10GXU	LEVEL-WIND GUIDE	2.75
70	10MW3	STOPPER CLAW ASSEMBLY	2.75
72	104BM	CLUTCH YOKE SPRING	1.10
73	10477	CLUTCH YOKE	1.65
74	10F66	CLUTCH CAM PUSH PLATE	3.85
75	10LVG	FIXING BOLT	1.10
76	1048E	CLUTCH LEVER SPRING	1.10
77	10F22	CLUTCH CAM SEAT	1.10
78	10K17	CLUTCH CAM	2.75
79	10601	CLUTCH CLAW	2.75
80	1048H	CLUTCH CLAW SPRING	1.10
81	10918	CLUTCH PLATE	2.75
82	10PND	CLUTCH LEVER SPRING PIN	1.65
84	104H3	CLICK BUTTON WASHER (B)	1.10
85	10ASW	CLUTCH LEVER RECEIVER (A)	1.65
86	10PNU	CLUTCH LEVER GUIDE	2.75
87	1099W	CLUTCH LEVER RETAINER (B)	1.65
88	10MY0	CLUTCH LEVER	6.05
89	105NC	E TYPE RETAINING RING 2	1.10
90	105AB	DAMPER WASHER 0.5	1.10
91	10FMS	BODY B FIXING BOLT EXTRACTION STOPPER	1.10
92	10AZ0	DAMPER BUSHING (A)	2.75
93	105NB	TYPE E RETAINING RING 1.5	1.10
94	10PSP	CLICK COIL SPRING (A)	1.10
95	10PSL	CLICK CLAW	2.75
96	10PN8	CLICK LINK	1.65
97	104MQ	CLICK BEARING KE	2.75
98	104MN	CLICK LINK FIXED SHAFT	1.65
99	10PW1	CLICK TOGGLE SPRING	1.10
100	10P1E	LEVEL-WIND ASSEMBLY	17.05
101	10FFX	CROSS GEAR PIN	2.75
102	10CFW	ADJUSTMENT WASHER SET	1.10
103	10FJE	LEVEL WINDING RECEIVER	2.75
104	104MW	CLICK COIL SPRING FIXED SHAFT	1.65
105	104SX	CROSS GEAR UKE B	1.10
106	10FT9	CROSS GEAR (C)	2.75
107	108L6	BODY B SHAFT GUIDE	1.65
109	10J76	CROSS GEAR (A)	3.85
110	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
111	13RPQ	BODY FRAME B RECEIVER (B)	11.55
112	10HTV	CROSS GEAR B WASHER	1.10
113	105GT	CROSS GEAR (B)	2.75
114	1072M	FIXING BOLT	1.65
115	10LFU	CROSS GEAR (B) SHAFT	2.75
116	10KNM	DAMPER SPRING	1.65
131	10MJ2	SPOOL REMOVAL/ATTACHMENT WRENCH (ACCESSORY)	3.85
152	13HEG	MAIN UNIT A SET	90.20
154	13TYP	MECHANICAL BRAKE KNOB	9.35
155	13HA9	MECHANICAL BRAKE KNOB ASSEMBLY	21.45
156	13UN0	DRIVE GEAR	28.05
157	13SJU	PINION GEAR	22.55
158	13G2A	FRAME	134.75
159	13GJG	SPOOL ASSEMBLY	84.15
160	13FJY	MAIN BODY B	50.60
BNKI	13WKV	EXPLODED VIEW (ACCESSORIES)	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
RC0A	10F5D	ROLLER CLUTCH BEARING A-RB	17.05
TRST	13VJA	INSTRUCTION MANUAL (ACCESSORY)	1.65
