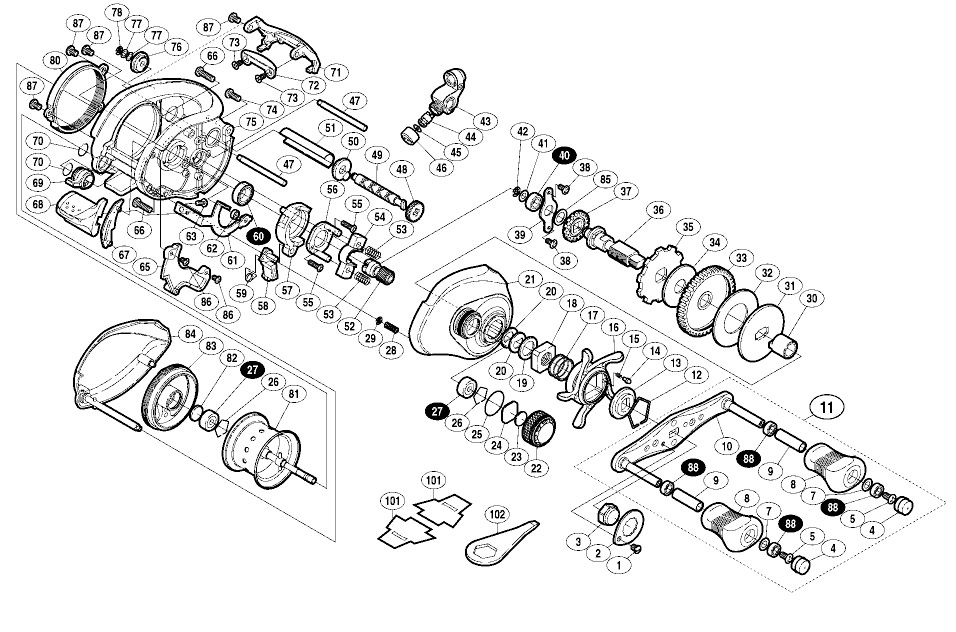

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHY REEL BAG 9.35
1 109XK FIXING BOLT 2.75
2 13V28 RETAINER 2.75
3 10FFK HANDLE FIXING NUT 2.75
4 10BDW HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
7 10HTT WASHER 1.10
8 13V03 HANDLE KNOB (PADDLE TYPE) 11.55
9 109VL KNOB FIXING SHAFT PIPE 3.85
10 13HSC HANDLE ASSEMBLY 28.05
11 13J07 HANDLE ASSEMBLY 90.20
12 10KXV STAR DRAG CLICK PLATE 1.65
13 10J26 STAR DRAG CLICK PLATE 1.65
14 10BT0 CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 13UUV STAR DRAG 11.55
17 10A75 STAR DRAG SPRING 2.75
18 10A0H STAR DRAG NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 13HCB MAIN BODY A SET 78.65
22 13TY7 SPOOL DRAG KNOB 4.95
23 10896 MECHANICAL BRAKE WASHER 1.10
24 1085F MECHANICAL BRAKE WASHER 1.10
25 108WK O-RING SM14 1.65
26 10GEW BEARING RETAINING CLIP 1.10
27 105C0 BALL BEARING (3 X 10 X 4) 13.75
28 10KNJ DAMPER SPRING 1.10
29 105NB E-TYPE STOPPER RING 1.5 1.10
30 10BPF INNER TUBE 6.05
31 10D3M STAR DRAG PLATE 2.75
32 10LN7 STAR DRAG WASHER 3.85
33 10CTJ MAIN GEAR 22.55
34 13UMF STAR DRAG WASHER 6.05
35 10D77 STOPPER GEAR 3.85
36 105HA MAIN GEAR SHAFT 22.55
37 13SR9 CROSS GEAR 6.05
38 10MT2 FIXING BOLT 1.10
39 109T0 MAIN GEAR SHAFT FIXING PLATE 2.75
40 13RQM BALL BEARING (5X9X3) 13.75
41 10C47 MAIN GEAR SHAFT WASHER 1.10
42 105NK E TYPE STOP RING 2.5 1.10
43 10NYU LEVEL WINDING ASSEMBLY 11.55
44 10FFX CROSS GEAR PIN 2.75
45 10CFW ADJUSTMENT WASHER SET 1.10
46 10FJG LEVEL WINDING RECEIVER 1.65
47 10GUQ LEVEL WINDING GUIDE 3.85
48 13S59 CROSS GEAR 6.05
49 13RYP CROSS GEAR SHAFT 6.05
50 10ND2 CROSS GEAR RECEPTACLE (A) 1.65
51 10NJH LEVEL-WIND PIPE 6.05
52 10CVC PINION GEAR 17.05
53 104BM CLUTCH YOKE SPRING 1.10
54 1047Q CLUTCH YOKE 2.75
55 10LUY FIXING BOLT 1.10
56 10F5X CLUTCH CAM PUSH PLATE 3.85
57 10K0S CLUTCH CAM 2.75
58 105ZY CLUTCH CLAW 3.85
59 10N1Z CLUTCH CLAW SPRING 1.10
60 10583 BALL BEARING (8X12X3.5) 13.75
61 10NPT CLUTCH PLATE 4.95
62 10Q7J CLUTCH PLATE BEARING 1.65
63 10MPW FIXING BOLT 1.10
65 10BVZ BODY A SEAT 3.85
66 103LM FIXING BOLT 1.10
67 1099J CLUTCH LEVER BEARING (B) 1.65
68 10P5A CLUTCH LEVER 6.05
69 10BC1 BODY B CAM LEVER 2.75
70 10LAC O RING 1.65
71 13S7F LEVEL WINDING GUARD 9.35
72 13RVN LINE GUARD PLATE 6.05
73 10MGH FIXING BOLT 1.10
74 10M2H FIXING BOLT 1.10
75 13G10 MAIN BODY FRAME 134.75
76 104SZ CROSS GEAR UKE B 1.65
77 105EK CLICK BUTTON WASHER 1.10
78 105NC E TYPE RETAINING RING 2 1.10
80 10QLB BODY B RECEIVER FIXING PLATE 6.05
81 13GJN SPOOL ASSEMBLY 90.20
82 1057S SPOOL SHAFT CONTACT SURFACE (B) 1.10
83 13RPF BODY FRAME B FIXING PLATE 22.55
84 13FJC BODY B ASSEMBLY 39.60
85 109R4 ADJUSTMENT WASHER 1.10
86 10LV6 FIXING BOLT 1.10
87 103LB FIXING BOLT 1.10
88 104VX BALL BEARING (4X7X2.5) 13.75
101 10PBQ LEG PROTECTION SHEET 1.65
102 10MJ1 REEL WRENCH (ACCESSORY) 2.75
BNKI 13WLM EXPLODED VIEW (ACCESSORY) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
RC0A 10F5D ROLLER CLUTCH BEARING A-RB 17.05
TRST 13VK1 INSTRUCTION MANUAL (ACCESSORY) 1.65
