[SHIMANO] Genuine Spare Parts for 16, 17 ENGETSU BB 16 BB 101PG Product code: 035905 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

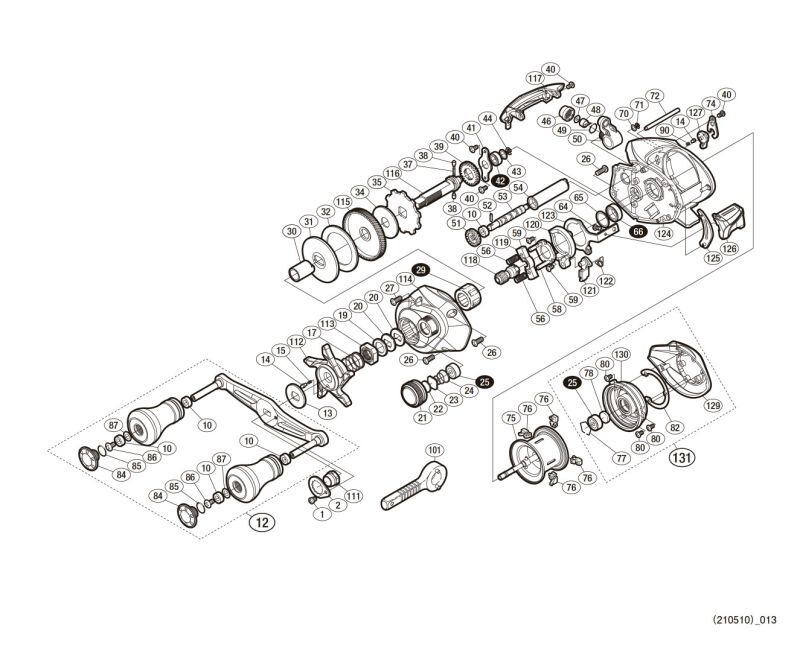

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10PVD | FIXING BOLT | 1.65 |
2 | 13V2S | RETAINER | 3.85 |
10 | 10PXZ | HANDLE KNOB BUSHING | 1.65 |
12 | 13AWP | HANDLE ASSEMBLY | 78.65 |
13 | 10J22 | STAR DRAG CLICK PLATE | 1.65 |
14 | 10MFC | CLICK PIN | 1.65 |
15 | 10BT2 | CLICK SPRING | 1.65 |
17 | 10A70 | STAR DRAG SPRING | 2.75 |
19 | 10J1N | STAR DRAG SPACER | 1.65 |
20 | 109F5 | DRIVE GEAR WASHER | 1.65 |
21 | 13U0T | MECHANICAL BRAKE KNOB | 9.35 |
22 | 10896 | MECHANICAL BRAKE WASHER | 1.10 |
23 | 1085F | MECHANICAL BRAKE WASHER | 1.10 |
24 | 10TMT | MECHANICAL BRAKE YURUMI STOP SPRING | 1.65 |
25 | 105C2 | BALL BEARING (3X10X4) | 13.75 |
26 | 13AXC | FIXING BOLT | 1.10 |
27 | 10LT0 | FIXING BOLT | 1.10 |
29 | 10F5D | ROLLER CLUTCH BEARING A-RB | 17.05 |
30 | 13UAU | ROLLER CLUTCH INNER TUBE | 6.05 |
31 | 10D3H | STAR DRAG PLATE | 2.75 |
32 | 106XT | STAR DRAG WASHER | 6.05 |
34 | 10CHF | STAR DRAG WASHER | 6.05 |
35 | 10D73 | STOPPER GEAR | 6.05 |
37 | 10JDY | SPRING FOR WORM SHAFT GEAR | 1.65 |
38 | 10HJG | WORM SHAFT GEAR PINS | 1.65 |
39 | 10J47 | WORM SHAFT GEAR | 2.75 |
40 | 10LCS | FIXING BOLT | 1.10 |
41 | 109T1 | DRIVE GEAR SHAFT FIXING PLATE | 2.75 |
42 | 105BP | BALL BEARING (5X9X3) | 13.75 |
43 | 10C47 | MAIN GEAR SHAFT WASHER | 1.10 |
44 | 105NK | E TYPE STOP RING 2.5 | 1.10 |
46 | 10FJB | LEVEL WINDING RECEIVING PLATE | 1.65 |
47 | 104TX | WORM SHAFT PIN WASHER | 1.10 |
48 | 10TPT | WORM SHAFT PIN | 2.75 |
49 | 108WQ | O-RING | 1.65 |
50 | 10NVQ | LEVEL WINDING ASSEMBLY | 11.55 |
51 | 10FNV | WORM SHAFT GEAR | 2.75 |
52 | 10AEZ | WORM SHAFT PIN | 1.10 |
53 | 10TPN | WORM SHAFT | 6.05 |
54 | 10NFX | LEVEL-WIND PIPE | 1.65 |
56 | 10487 | CLUTCH YOKE SPRING | 1.10 |
58 | 10F3X | CLUTCH CAM PUSH PLATE | 3.85 |
59 | 10L1R | FIXING BOLT | 1.10 |
64 | 103C0 | FIXING BOLT | 1.10 |
65 | 10FJZ | WASHER | 1.10 |
66 | 10EX8 | BALL BEARING (8X12X3.5) | 13.75 |
70 | 10190 | BALL BEARING WASHER | 1.65 |
71 | 105NC | E TYPE STOP RING 2 | 1.10 |
72 | 10QSH | LEVEL-WIND GUIDE | 1.65 |
74 | 10BGR | BODY B CAM LEVER PUSH PLATE | 1.65 |
75 | 13AV5 | SPOOL ASSEMBLY | 45.10 |
76 | 1046G | BRAKE SHOE (M) RED | 1.10 |
77 | 1054D | BEARING EXTRACTION STOPPER | 1.10 |
78 | 10EX5 | SPOOL SHAFT CONTACT B | 1.10 |
80 | 10LA4 | FIXING BOLT | 1.10 |
82 | 108F0 | ADJUSTMENT WASHER (B) | 1.65 |
84 | 13MH0 | HANDLE CAP | 6.05 |
85 | 10LAA | O-RING | 1.10 |
86 | 103E9 | FIXING BOLT | 1.10 |
87 | 10G8E | B WASHER | 1.10 |
90 | 10GQZ | CLICK SPRING | 1.10 |
101 | 10NC0 | REEL WRENCH (ACCESSORY) | 1.65 |
111 | 13V1D | HANDLE FIXING NUT | 2.75 |
112 | 13UWH | STAR DRAG | 17.05 |
113 | 10A3U | STAR DRAG FIXING NUT | 3.85 |
114 | 13TV9 | BODY A | 13.75 |
115 | 13UR7 | DRIVE GEAR | 22.55 |
116 | 105CH | DRIVE GEAR SHAFT | 11.55 |
117 | 13SBH | LEVEL WINDING GUARD | 6.05 |
118 | 13SMQ | PINION GEAR | 11.55 |
119 | 1046W | CLUTCH YOKE | 1.65 |
120 | 10K0P | CLUTCH CAM | 2.75 |
121 | 10MQM | CLUTCH CLAW | 3.85 |
122 | 104CQ | CLUTCH CLAW SPRING | 1.65 |
123 | 10QGJ | CLUTCH PLATE | 4.95 |
124 | 13AUN | CLUTCH FRAME | 34.10 |
125 | 10976 | CLUTCH LEVER RECEIVER (B) | 1.65 |
126 | 10CDS | CLUTCH LEVER | 1.65 |
127 | 10BAZ | BODY B CAM LEVER | 1.65 |
129 | 13R41 | BODY B | 6.05 |
130 | 101DL | FRAME B RECEIVER ASSEMBLY | 11.55 |
131 | 13AU1 | BODY B ASSEMBLY | 28.05 |
BNKI | 13BAK | EXPLODED VIEW (ACCESSORIES) | 1.65 |
ITOS | 10G4L | SPOOL THREAD STOPPER SEAL (ACCESSORY) | 1.65 |
TRST | 13B81 | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
