[SHIMANO] Genuine Spare Parts for 17 EXSENCE 4000MXG Product Code: 037527 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.181 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4143

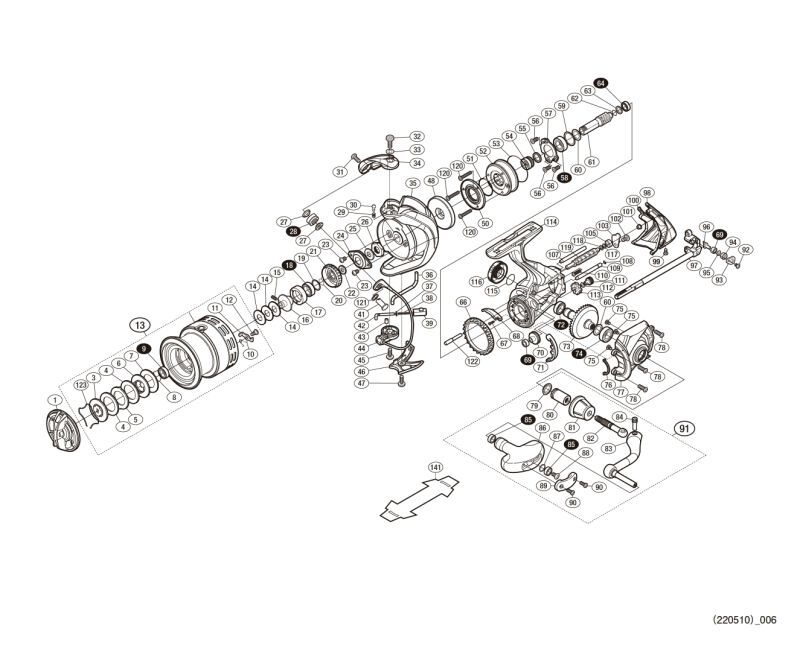

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13B3T | REEL BAG (ACCESSORY) | 11.55 |
1 | 10EAD | DRAG KNOB ASSEMBLY | 28.05 |
3 | 10QBV | SMALL SIZE WASHER | 6.05 |
4 | 102ZP | DRAG WASHER (A) | 1.65 |
5 | 102XW | EAR WASHERS | 1.65 |
6 | 10B9D | DRAG KNOB WASHER | 2.75 |
7 | 10C13 | DRAG WASHER (B) | 1.65 |
8 | 10GEW | BEARING PULL-OUT STOPPER | 1.10 |
9 | 104JT | BALL BEARING (6X10X3) | 13.75 |
10 | 10DNN | SPOOL PIN SPRING | 1.65 |
11 | 10DNK | SPOOL PIN | 1.65 |
12 | 10TRB | FIXING BOLT | 1.65 |
13 | 10EAH | SPOOL ASSEMBLY | 112.20 |
14 | 10BSJ | SPOOL WASHER SET | 1.10 |
15 | 10PN2 | SET SCREW | 1.65 |
16 | 10LTS | SPOOL SHAFT BEARING GUIDE | 6.05 |
17 | 10TQH | BEARING COLLAR | 2.75 |
18 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
19 | 10GHN | WASHER | 1.65 |
20 | 107V2 | RATCHET SPRING | 1.65 |
21 | 107PS | DRAG SOUNDING SILRATCHET | 2.75 |
22 | 103NX | SPOOL RECEIVER | 1.65 |
23 | 10PMD | FIXING BOLT | 1.10 |
24 | 10RBF | RETAINER | 1.65 |
25 | 107L5 | ROTOR BEARING SEAL | 2.75 |
26 | 10R2D | ROTOR NUT | 3.85 |
27 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
28 | 101BJ | LINE ROLLER (WITH BEARING) | 39.60 |
29 | 10CH0 | INTERNAL GERI LEVER CLICK SPRING | 1.65 |
30 | 10CHA | INTERNAL GERI LEVER CLICK PIN | 1.65 |
31 | 10K40 | FIXING BOLT | 2.75 |
32 | 10SNA | FIXING BOLT | 1.65 |
33 | 10192 | ARM CAM ADJUSTMENT WASHER | 1.10 |
34 | 10EAM | ARM CAM | 6.05 |
35 | 101CE | ROTOR | 56.10 |
36 | 10TRF | INTERNAL GERI LEVER | 2.75 |
37 | 1064R | ARM SPRING GUIDE (A) COLLAR | 1.65 |
38 | 10R2P | ARM CAM SPRING | 1.65 |
39 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
41 | 10EAP | ARM FIXED SHAFT | 2.75 |
42 | 105YZ | ARM SPRING GUIDE (A) | 3.85 |
43 | 10R2F | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
44 | 101CF | BAIL ASSEMBLY | 45.10 |
45 | 10SN9 | FIXING BOLT | 1.65 |
46 | 10EAK | BAIL MOUNTING BRACKET COVER | 9.35 |
47 | 10TTX | FIXING BOLT | 1.65 |
48 | 10SYA | ROTOR COLLAR | 9.35 |
50 | 10SYJ | ROLLER CLUTCH COVER PLATE | 9.35 |
51 | 10SYC | O-RING | 3.85 |
52 | 101V8 | ROLLER CLUTCH ASSEMBLY | 12.65 |
53 | 10MLT | O-RING | 3.85 |
54 | 107S5 | ROLLER CLUTCH INNER COLLAR | 2.75 |
55 | 10H4G | ROLLER CLUTCH INNER COLLAR | 1.65 |
56 | 10ML6 | FIXING BOLT | 1.65 |
57 | 10593 | BEARING PUSH PLATE | 2.75 |
58 | 104VF | BALL BEARING (7X14X5) | 13.75 |
59 | 10HV8 | BEARING WASHERS | 1.10 |
60 | 10JDC | ADJUSTMENT WASHER SET | 1.10 |
61 | 10SYH | PINION GEAR | 20.35 |
62 | 108W6 | O-RING | 1.65 |
63 | 10J6G | PINION GEAR SPACER | 1.65 |
64 | 104JV | BALL BEARING (6 X 10 X 3) | 13.75 |
66 | 104FU | FRICTION RING | 3.85 |
67 | 10R1M | FIXING BOLT | 1.65 |
68 | 10R31 | INNER GERI HITARI | 1.65 |
69 | 10PC0 | BALL BEARING (2X5X2.5) | 13.75 |
70 | 10HBR | WORM SHAFT GEAR | 9.35 |
71 | 10J3P | FRICTION RING SPACER | 2.75 |
72 | 104PP | BALL BEARING (7X11X3) | 13.75 |
73 | 10TSM | DRIVE GEAR ASSEMBLY | 28.05 |
74 | 104JD | BALL BEARING (7X13X4) | 13.75 |
75 | 1055G | FIXING BOLT | 1.65 |
76 | 10CBC | FOOT FLANGE SEAL | 2.75 |
77 | 101CD | FOOT | 56.10 |
78 | 10M2C | FIXING BOLT | 1.10 |
79 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
80 | 10EAC | HANDLE SHAFT FLANGE (B) | 6.05 |
81 | 1018Q | HANDLE SHAFT FLANGE | 22.55 |
82 | 10F8J | HANDLE SHAFT FLANGE (A) | 6.05 |
83 | 10DJH | HANDLE SHAFT FLANGE (B) | 34.10 |
84 | 10EAF | HANDLE SHAFT BOLT | 3.85 |
85 | 104VX | BALL BEARING (4X7X2.5) | 13.75 |
86 | 1040Q | HANDLE NIPPLE | 17.05 |
87 | 104FH | WASHER | 2.20 |
88 | 103E9 | FIXING BOLT | 1.10 |
89 | 10PY1 | HANDLE SAW BLADE NAMEPLATE | 3.85 |
90 | 103NM | FIXING BOLT | 2.75 |
91 | 10EAR | HANDLE ASSEMBLY | 101.20 |
92 | 10MT4 | FIXING BOLT | 1.10 |
93 | 10HAH | WORM SHAFT PIN PUSH PLATE | 1.65 |
94 | 10JXR | WORM SHAFT PIN COLLAR | 2.75 |
95 | 10RKQ | WASHER | 2.20 |
96 | 106VM | WORM SHAFT PIN | 4.95 |
97 | 102J6 | MAIN SHAFT ASSEMBLY | 28.05 |
98 | 10EAJ | BODY GUARD | 11.55 |
99 | 10EF0 | FIXING BOLT | 1.65 |
100 | 10EAQ | BODY COVER | 2.75 |
101 | 10AYN | BODY GUARD COLLAR | 2.75 |
102 | 103EA | FIXING BOLT | 2.75 |
103 | 10ATD | WORM SHAFT COVER | 2.75 |
105 | 106CM | CROSS GEAR BUSH (FRONT) | 1.65 |
107 | 1035M | SLIDER GUIDE | 3.85 |
108 | 10JAB | O-RING | 1.65 |
109 | 104MC | SLIDER GUIDE (B) | 3.85 |
110 | 10LPX | FIXING BOLT | 1.10 |
111 | 106VR | INTERMEDIATE GEAR (S) | 8.25 |
112 | 1059T | WASHER | 1.10 |
113 | 10SYD | INTERMEDIATE GEAR (L) | 9.35 |
114 | 101CG | BODY | 157.30 |
115 | 108WA | O-RING | 1.65 |
116 | 10EA8 | HANDLE SCREW CAP | 20.35 |
117 | 10GHF | WASHER | 1.10 |
118 | 10ECK | WASHER | 1.10 |
119 | 10ECM | WORM SHAFT | 11.55 |
120 | 10S0C | FIXING BOLT | 3.85 |
121 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
122 | 10TC8 | INTERMEDIATE GEAR SHAFT | 3.85 |
123 | 10T58 | STOPPER SPRING | 1.10 |
141 | 10PBS | LEG PROTECTION SHEET (ACCESSORY) | 2.75 |
BNKI | 13R4C | EXPLODED VIEW (ACCESSORY) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
MH01 | 13NHA | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
