[SHIMANO] Genuine Spare Parts for 17 EXSENCE 3000MHG Product Code: 037510 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 EXSENCE 3000MHG Product Code: 037510 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.181 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4355

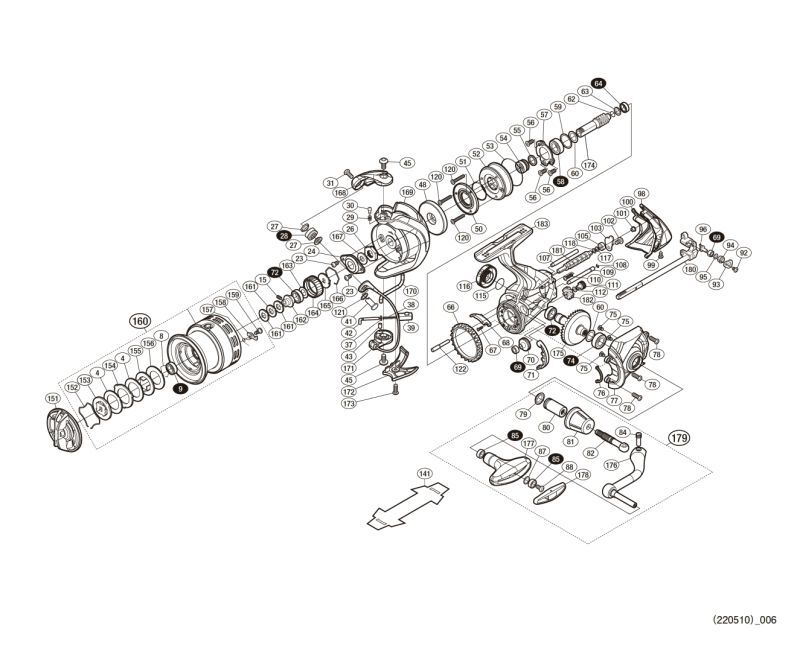

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13B3T REEL BAG (ACCESSORY) 11.55
4 102ZP DRAG WASHER (A) 1.65
8 10GEW BEARING PULL-OUT STOPPER 1.10
9 104JT BALL BEARING (6 X 10 X 3) 13.75
15 10PN2 SET SCREW 1.65
23 10PMD FIXING BOLT 1.10
24 10RBF RETAINER 1.65
26 10R2D ROTOR NUT 3.85
27 1020L LINE ROLLER BEARING COLLAR 2.75
28 101BJ LINE ROLLER (WITH BEARING) 39.60
29 10CH0 INNER GERI LEVER CLICK SPRING 1.65
30 10CHA INTERNAL GERI LEVER CLICK PIN 1.65
31 10K40 FIXING BOLT 2.75
37 1064R ARM SPRING GUIDE (A) COLLAR 1.65
38 10R2P ARM CAM SPRING 1.65
39 10R2E ARM CAM SPRING GUIDE (B) 2.75
41 10EAP ARM FIXING SHAFT 2.75
42 105YZ ARM SPRING GUIDE (A) 3.85
43 10R2F ARM SPRING GUIDE (A) COLLAR BUSH 1.65
45 10SN9 FIXING BOLT 1.65
48 10SYA ROTOR COLLAR 9.35
50 10SYJ ROLLER CLUTCH COVER PLATE 9.35
51 10SYC O-RING 3.85
52 101V8 ROLLER CLUTCH ASSEMBLY 12.65
53 10MLT O-RING 3.85
54 107S5 ROLLER CLUTCH INNER COLLAR 2.75
55 10H4G ROLLER CLUTCH INNER COLLAR 1.65
56 10ML6 FIXING BOLT 1.65
57 10593 BEARING PUSH PLATE 2.75
58 104VF BALL BEARING (7X14X5) 13.75
59 10HV8 BEARING WASHERS 1.10
60 10JDC ADJUSTMENT WASHER SET 1.10
62 108W6 O-RING 1.65
63 10J6G PINION GEAR SPACER 1.65
64 104JV BALL BEARING (6X10X3) 13.75
66 104FU FRICTION RING 3.85
67 10R1M FIXING BOLT 1.65
68 10R31 INNER GERI HITARI 1.65
69 10PC0 BALL BEARING (2X5X2.5) 13.75
70 10HBR WORM SHAFT GEAR 9.35
71 10J3P FRICTION RING SPACER 2.75
72 104PP BALL BEARING (7X11X3) 13.75
74 104JD BALL BEARING (7X13X4) 13.75
75 1055G FIXING BOLT 1.65
76 10CBC FOOT FLANGE SEAL 2.75
77 101CD FOOT 56.10
78 10M2C FIXING BOLT 1.10
79 10PXU HANDLE SHAFT SEAL 2.75
80 10EAC HANDLE SHAFT FLANGE (B) 6.05
81 1018Q HANDLE SHAFT FLANGE 22.55
82 10F8J HANDLE SHAFT FLANGE 6.05
84 10EAF HANDLE SHAFT BOLT 3.85
85 104VX BALL BEARING (4 X 7 X 2.5) 13.75
87 104FH WASHER 2.20
88 103E9 FIXING BOLT 1.10
92 10MT4 FIXING BOLT 1.10
93 10HAH WORM SHAFT PIN PUSH PLATE 1.65
94 10JXR WORM SHAFT PIN COLLAR 2.75
95 10RKQ WORM SHAFT PIN COLLAR 2.20
96 106VM WORM SHAFT PIN 4.95
98 10EAJ BODY GUARD 11.55
99 10EF0 FIXING BOLT 1.65
100 10EAQ BODY COVER 2.75
101 10AYN BODY GUARD COLLAR 2.75
102 103EA FIXING BOLT 2.75
103 10ATD WORM SHAFT COVER 2.75
105 106CM CROSS GEAR BUSH (FRONT) 1.65
107 1035M SLIDER GUIDE 3.85
108 10JAB O-RING 1.65
109 104MC SLIDER GUIDE (B) 3.85
110 10LPX FIXING BOLT 1.10
111 106VR INTERMEDIATE GEAR (S) 8.25
112 1059T WASHER 1.10
115 108WA O-RING 1.65
116 10EA8 HANDLE SCREW CAP 20.35
117 10GHF WASHER 1.10
118 10ECK WASHER 1.10
120 10S0C FIXING BOLT 3.85
121 1002S ARM FIXING SHAFT WASHER 1.10
122 10TC8 INTERMEDIATE GEAR SHAFT 3.85
141 10PBS LEG PROTECTION SHEET (ACCESSORY) 2.75
151 10EAL DRAG KNOB ASSEMBLY 28.05
152 10B8J STOPPER SPRING 1.65
153 10JJV OVAL WASHER 6.05
154 10BE6 EAR WASHERS 6.05
155 10BBQ OVAL WASHERS 2.75
156 10C1D DRAG WASHER 1.65
157 10BQE SPOOL PIN SPRING 1.65
158 10388 SPOOL PIN 1.65
159 10A6F FIXING BOLT 1.65
160 13AQZ SPOOL ASSEMBLY 112.20
161 10BU7 SPOOL WASHER SET 1.10
162 10LTR SPOOL SHAFT BEARING GUIDE 6.05
163 102VD WASHER 1.10
164 107V0 DRAG SOUNDING SILATCHET 2.75
165 103PC SPOOL RECEIVER 1.65
166 107V3 RATCHET SPRING 1.65
167 107L3 ROTOR BEARING SEAL 2.75
168 10EAV ARM CAM 6.05
169 101BL ROTOR 56.10
170 10R2G INTERNAL GERI LEVER 2.75
171 101BK BAIL ASSEMBLY 45.10
172 10EA9 BALE MOUNTING BRACKET COVER 9.35
173 10DT7 FIXING BOLT 1.65
174 13AY8 PINION GEAR 20.35
175 10ELY DRIVE GEAR ASSEMBLY 28.05
176 13E1P HANDLE KNOB 34.10
177 10R38 HANDLE KNOB 17.05
178 10R3A HANDLE CAP 3.85
179 13EQM HANDLE ASSEMBLY 101.20
180 13D9Z MAIN SHAFT ASSEMBLY 28.05
181 13AYF WORM SHAFT 11.55
182 10CQJ INTERMEDIATE GEAR (L) 9.35
183 13ARW BODY 157.30
BNKI 13R4C EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ THREAD STOP SEAL 1.65
LRKM 13D1P LINE ROLLER ASSEMBLY 19.25
MH01 13NHC NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
