[SHIMANO] Genuine Spare Parts for 19 ENGETSU CT CT151 HG Product code: 039880 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 19 ENGETSU CT CT151 HG Product code: 039880 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

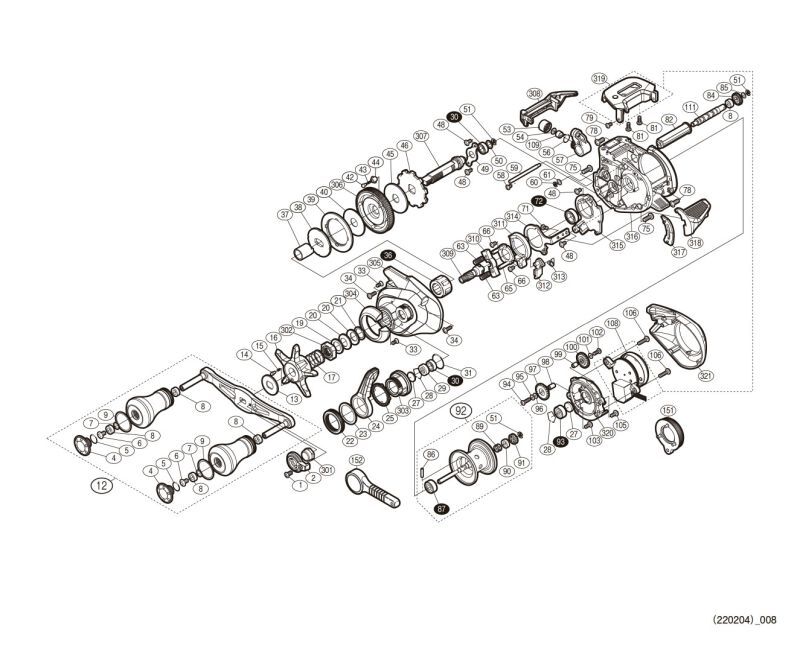

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "87 / BALL BEARING", "86 / Spool Clutch Pin" and "36 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101VV FIXING BOLT 1.10
2 10SSK RETAINER 3.85
4 13XY5 HANDLE CAP 4.95
5 10LAA O-RING 1.10
6 10LFA FIXING BOLT 1.10
7 13ATN WASHER 2.75
8 10PXZ HANDLE KNOB BUSH 1.65
9 10S9X WASHER 1.65
12 13JCG HANDLE ASSEMBLY 90.20
13 10J22 STAR DRAG CLICK PLATE 1.65
14 10MFC CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 13V3B STAR DRAG 3.85
17 10A70 STAR DRAG SPRING 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10EW3 SALA SPRING (DB8L) 1.65
21 13HVF WASHER 2.75
22 13UDA LOCK RING 1.65
23 13B6Z WASHER 1.65
24 13UDY FALL LEVER 6.05
25 13UD3 LOCK SPACER B 1.65
27 10EX5 SPOOL SHAFT CONTACT B 1.10
28 1054D BEARING STOPPER 1.10
29 101V3 BEARING SPACER 2.75
30 105BP BALL BEARING (5 X 9 X 3) 13.75
31 10R22 O-RING 1.65
33 10LA3 FIXING BOLT 1.65
34 10LCY FIXING BOLT 1.10
36 10F5D ROLLER CLUTCH BEARING A-RB *Cannot be ordered 17.05
37 13UCY ROLLER CLUTCH INNER TUBE 6.05
38 10D54 STAR DRAG PLATE 3.85
39 10JAZ DRAG CLICK SYRATCHET 1.65
40 1025A STAR DRAG WASHER 6.05
42 13UD9 DRAG CLICK PIN 2.75
43 13VFP DRAG CLICK SPRING 1.65
44 10J58 DRAG SPRING HOLDER 1.65
45 10DQK STAR DRAG WASHER 6.05
46 10D73 STOPPER GEAR 6.05
48 10S57 FIXING BOLT 1.65
49 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
50 1003V WASHER 2.75
51 105NK E TYPE STOPWHEEL 2.5 1.10
53 10FJW LEVEL WINDING RECEIVER 1.65
54 1003S WASHER 2.75
56 108WQ O-RING 1.65
57 13GED LEVEL WINDING ASSEMBLY 9.35
58 1022E FIXING BOLT 1.65
59 13B5P LEVEL WINDING GUIDE 1.65
60 105NC E TYPE RETAINING RING 2 1.10
61 10S42 WASHER 2.75
63 10487 CLUTCH YOKE SPRING 1.10
65 10F3X CLUTCH CAM PUSH PLATE 3.85
66 10LVE FIXING BOLT 1.10
71 10LF4 FIXING BOLT 1.10
72 10EX8 BALL BEARING (8X12X3.5) 13.75
75 10LFP FIXING BOLT 1.10
78 13NW9 FIXING BOLT 1.10
79 10LCQ FIXING BOLT 1.10
81 10LCM FIXING BOLT 1.10
82 13S5U LEVEL-WIND PIPE 1.65
84 13S5T WORM SHAFT GEAR 2.75
85 13GG3 WASHER 2.75
86 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
87 13TXK BALL BEARING (4 X 10 X 4) *Cannot be ordered 13.75
89 13SVD SPOOL SHAFT SPRING 1.65
90 10MCY SPOOL SHAFT CAM 1.65
91 10JAH WORM SHAFT GEAR 3.85
92 13GG4 SPOOL ASSEMBLY (WITH BEARING) 50.60
93 105C2 BALL BEARING (3X10X4) 13.75
94 13JXR FIXING BOLT 1.65
95 13PE6 WASHER 1.65
96 13FYW WASHER 2.75
97 13RTV WORM SHAFT GEAR 1.65
98 13SGH WORM SHAFT GEAR (B) RECEIVER B 2.75
99 13RU2 WORM SHAFT GEAR (B) HOLDER 1.65
100 13S5R WORM SHAFT GEAR (B) 2.75
101 1019V WORM SHAFT GEAR (B) 1.65
102 10LCL FIXING BOLT 1.10
103 10LCH FIXING BOLT 1.65
105 10LCF FIXING BOLT 1.10
106 13JWV FIXING BOLT 1.65
108 13JPZ BATTERY COVER ASSEMBLY 9.35
109 10BHQ WORM SHAFT PIN 2.75
111 13S61 WORM SHAFT 11.55
151 13WU2 WRENCH (ACCESSORY) 2.75
152 10NC0 REEL WRENCH (ACCESSORY) 1.65
301 13V30 HANDLE FIXING NUT 2.75
302 10A3U STAR DRAG FIXING NUT 3.85
303 13U81 MECHANICAL BRAKE KNOB 9.35
304 13U80 BODY A NAMEPLATE 6.05
305 13U1E BODY A 22.55
306 13USK DRIVE GEAR 22.55
307 13ULC DRIVE GEAR SHAFT 11.55
308 13SGT LEVEL WINDING GUARD 4.95
309 13SP0 PINION GEAR 9.35
310 1046W CLUTCH YOKE 1.65
311 10K0P CLUTCH CAM 2.75
312 10MQM CLUTCH CLAW 3.85
313 10TMC CLUTCH CLAW SPRING 1.65
314 10TME CLUTCH PLATE 4.95
315 10TMU BODY A SEAT 3.85
316 13G9J FRAME ASSEMBLY 56.10
317 13TCK CLUTCH LEVER RECEIVER (B) 1.65
318 13T7F CLUTCH LEVER 6.05
319 13JJH COUNTER UNIT ASSEMBLY 151.80
320 13RUC BODY B RECEIVER 6.05
321 13RFY MAIN UNIT B 11.55
LINE 10CW0 LINE THREADING 1.65
PUNT 13JR0 INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 4.95
