[SHIMANO] Genuine Spare Parts for 21 ENGETSU 100PG Product code: 043009 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 21 ENGETSU 100PG Product code: 043009 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4960

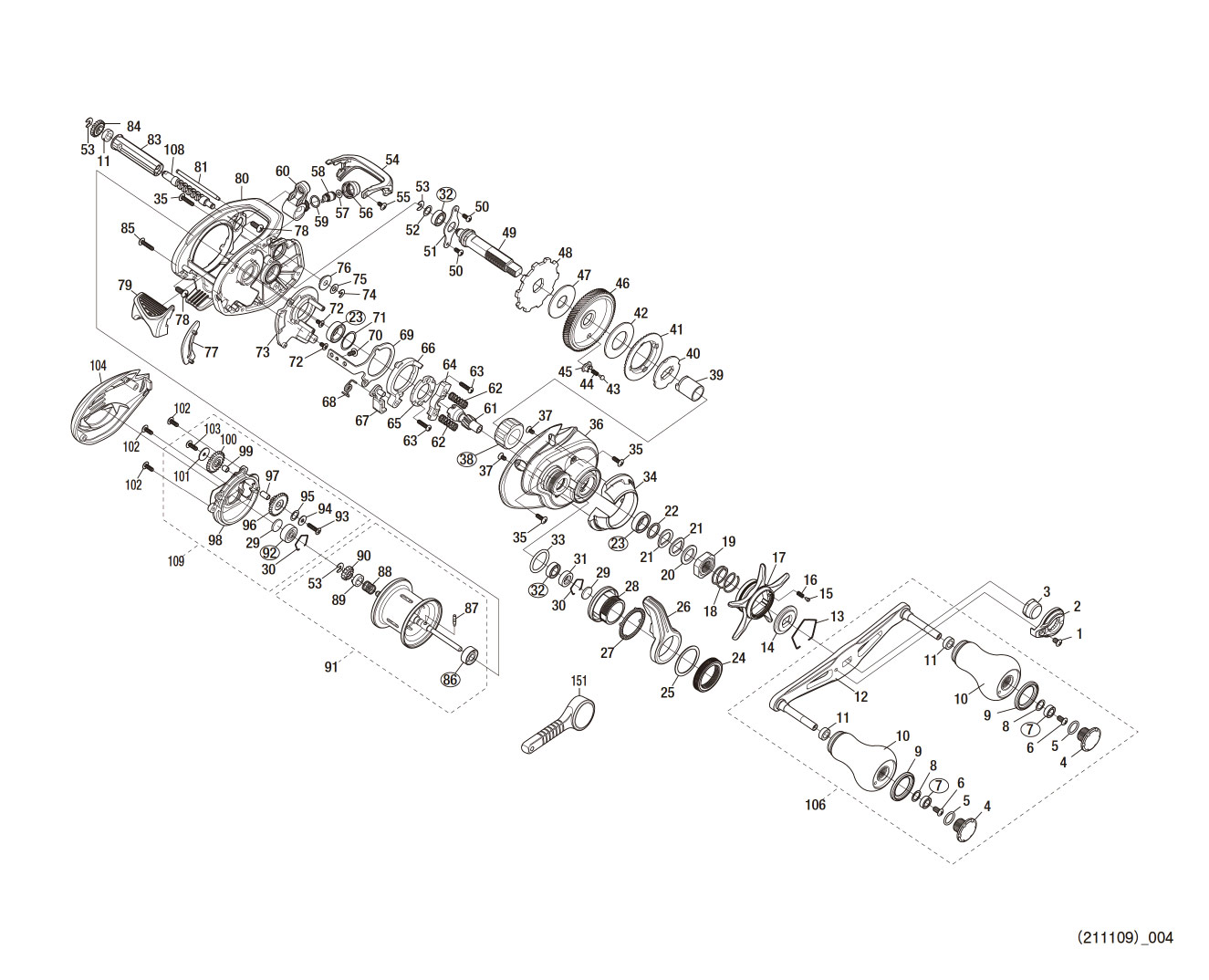

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "38 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101VV FIXING BOLT 1.10
2 1017T RETAINER 3.85
3 13V31 HANDLE FIXING NUT 2.75
4 13XY5 HANDLE CAP 4.95
5 10LAA O-RING 1.10
6 10LFA FIXING BOLT 1.10
7 104VX BALL BEARING (4 X 7 X 2.5) 13.75
8 104FH WASHER 2.20
9 10S9X WASHER 1.65
10 13E89 HANDLE KNOB 34.10
11 10PXZ HANDLE KNOB BUSH 1.65
12 13HVC HANDLE 34.10
13 10KXW STAR DRAG SOUND OUTPUT BOARD REMOVAL STOP 1.65
14 10J26 STAR DRAG SOUND BOARD 1.65
15 10MFC CLICK PIN 1.65
16 10BT2 CLICK SPRING 1.65
17 13UYQ STAR DRAG 11.55
18 10A70 STAR DRAG SPRING 2.75
19 10A3T STAR DRAG FIXING NUT 3.85
20 10J1N STAR DRAG SPACER 1.65
21 109F5 DRIVE GEAR WASHER 1.65
22 100SE WASHER 1.10
23 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
24 13UD5 LOCK RING 2.75
25 13B6Z WASHER 1.65
26 13UEH FALL LEVER 8.80
27 13UD3 LOCK SPACER B 1.65
28 13U8V MECHANICAL BRAKE KNOB 9.90
29 10EX5 SPOOL SHAFT BEARING TARI B 1.10
30 1054D BEARING PULL-OUT STOPPER 1.10
31 101V3 BEARING SPACER 2.75
32 105BP BALL BEARING (5X9X3) 13.75
33 10R22 O-RING 1.65
34 13U8M BODY A NAME PLATE 2.75
35 10LCY FIXING BOLT 1.10
36 13U23 BODY A 33.00
37 10LA3 FIXING BOLT 1.65
38 10F5D ROLLER CLUTCH BEARING A-RB *Cannot be ordered 17.05
39 13UCY ROLLER CLUTCH INNER TUBE 6.05
40 13UXT STAR DRAG PLATE 4.40
41 10JB0 DRAG SOUND OUTPUT SRATCHET 2.75
42 10SE0 STAR DRAG WASHER 6.05
43 10C0T DRAGCLICK PIN 2.75
44 10J8A DRAGCLICK SPRING 1.65
45 10J87 DRAG SPRING HOLDER 1.65
46 13UXS DRIVE GEAR 24.75
47 10DQK STAR DRAG WASHER 6.05
48 10R6Z STOPPER GEAR 6.05
49 13ULM DRIVE GEAR SHAFT 7.15
50 10E23 FIXING BOLT 1.10
51 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
52 10G6D WASHER 1.65
53 105NK E-TYPE RETAINING RING 2.5 1.10
54 13SHN LEVEL WIND GUARD 2.20
55 10LCQ FIXING BOLT 1.10
56 10FJB LEVEL WIND RECEIVING 1.65
57 10CFU WASHER 1.10
58 10BHQ WORM SHAFT PIN 2.75
59 108WQ O-RING 1.65
60 10R51 LEVEL WIND GROUP 3.30
61 13SPT PINION GEAR 11.55
62 100U9 CLUTCH YOKE SPRING 1.10
63 10LV0 FIXING BOLT 1.10
64 100UH CLUTCH YOKE 1.65
65 100US CLUTCH CAM PUSHER PLATE 3.85
66 100UK CLUTCH CAM 2.75
67 10MME CLUTCH CLAW 3.85
68 10R1H CLUTCH SPRING 1.65
69 10QZV CLUTCH PLATE 4.95
70 10LF4 FIXING BOLT 1.10
71 10190 WASHER 1.65
72 100S4 FIXING BOLT 1.10
73 10R56 BODY A SHEET 3.30
74 105NC E-TYPE RETAINING RING 2 1.10
75 100K0 WASHER 1.10
76 100G7 LEVEL WIND GUARD BUSH 1.10
77 13TDA CLUTCH LEVER CATCH (B) 1.10
78 13JQQ FIXING BOLT 1.65
79 13H6H CLUTCH LEVER SET 6.05
80 13GAN FRAME SET 37.40
81 13S6E LEVEL WIND GUIDE 1.10
83 13S6D LEVEL WIND PIPE 1.10
84 13S5T WORM SHAFT GEAR 2.75
85 10MTB FIXING BOLT 1.10
86 13TXK BALL BEARING (4X10X4) 13.75
87 10MD0 SPOOL CLUTCH PIN 1.65
88 13SVD SPOOL SHAFT SPRING 1.65
89 10MCY SPOOL SHAFT CAM 1.65
90 10JAH WORM SHAFT GEAR 3.85
91 13GNV SPOOL SET (BEARING INCLUDED) 56.10
92 105C2 BALL BEARING (3X10X4) 13.75
93 13JXR FIXING BOLT 1.65
94 13PE6 WASHER 1.65
95 13PKB WASHER 1.10
96 13RTV WORM SHAFT GEAR 1.65
97 13SGH WORM SHAFT GEAR (B) RECEIVER B 2.75
98 13RUN BODY B RECEIVER 5.50
99 13RU2 WORM SHAFT GEAR (B) CATCH 1.65
100 13S5R WORM SHAFT GEAR 2.75
101 1019V WASHER 1.65
102 10LCF FIXING BOLT 1.10
103 10LCP FIXING BOLT 1.65
104 13RGP BODY B 4.40
106 13JDD HANDLE SET 77.00
108 13S61 WORM SHAFT 11.55
109 13FZJ FRAME B RECEIVING SET 13.20
151 10NC0 REEL WRENCH (ACCESSORY) 1.65
PUNT 13FMN INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.20
