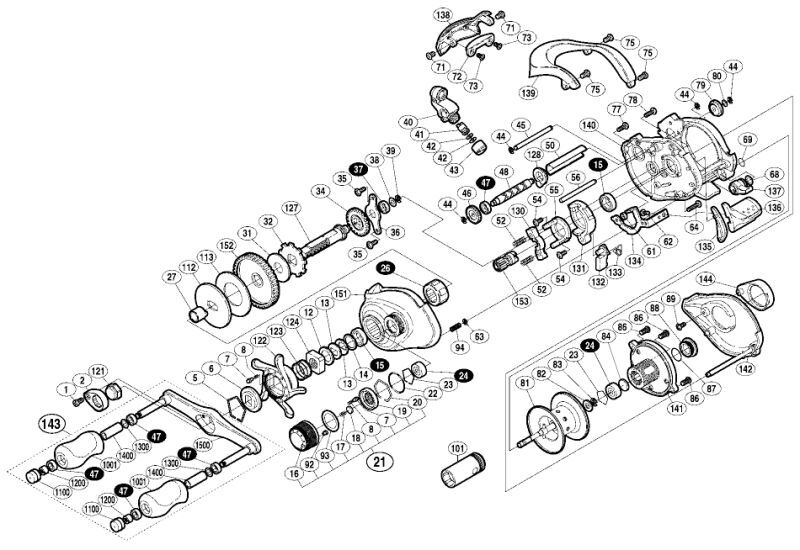

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WJ0 REEL BAG 9.35
1 10CYU FIXING BOLT 2.75
2 10Q5X HANDLE RETAINER 2.75
5 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
6 10J26 STAR DRAG CLICK PLATE 1.65
7 10BT0 CLICK PIN 1.65
8 10BT2 CLICK SPRING 1.65
12 10J1N STAR DRAG SPACER 1.65
13 10D60 MAIN GEAR WASHER (C) 1.65
14 105PW STAR DRAG BEARING WASHER 1.10
15 10583 BALL BEARING (8 X 12 X 3.5) 13.75
16 10KFS SPOOL DRAG KNOB 9.35
17 10BR9 SPOOL DRAG SPRING 1.65
18 10L73 SPOOL DRAG WASHER 1.65
19 10L2G SD KNOB CLICK PLATE 3.85
20 10L71 SPOOL DRAG KNOB CLICK HOLDER 2.75
21 10HWF SPOOL DRAG KNOB ASSEMBLY 17.05
22 108WK O-RING SM14 1.65
23 10GEW BEARING RETAINING CLAMP 1.10
24 105C0 BALL BEARING (3 X 10 X 4) 13.75
26 10F5D ROLLER CLUTCH BEARING A-RB 17.05
27 10BPF INNER TUBE 6.05
31 10CJ1 STAR DRAG WASHER 3.85
32 10D7B STOPPER GEAR 6.05
34 10J77 CROSS GEAR (A) 3.85
35 10MT0 FIXING BOLT 1.10
36 109T5 MAIN GEAR SHAFT FIXING PLATE 1.65
37 104JY BALL BEARING (5 X 8 X 2.5) 13.75
38 10HYN WASHER 1.10
39 105NK E TYPE STOP RING 2.5 1.10
40 10NYR LEVEL-WIND ASSEMBLY 17.05
41 10FFX CROSS GEAR PIN 2.75
42 10CFW ADJUSTMENT WASHER SET 1.10
43 10FJG LEVEL WINDING RECEPTACLE 1.65
44 105NC E TYPE RETAINING RING 2 1.10
45 108L2 LINE GUARD 3.85
46 10FP3 CROSS GEAR (C) 6.05
47 104VW BALL BEARING (4 X 7 X 2.5) 13.75
48 1053U CROSS GEAR 17.05
50 10NJH LEVEL WINDING PIPE 6.05
52 104BF CLUTCH YOKE SPRING 1.10
54 10LVG FIXING BOLT 1.10
55 10F5W CLUTCH CAM PUSH PLATE 3.85
56 10GXX LEVEL-WIND GUIDE 3.85
61 10Q7J CLUTCH PLATE BEARING 1.65
62 10MPW FIXING BOLT 1.10
63 105NB E TYPE RETAINING RING 1.5 1.10
64 10LV3 FIXING BOLT 1.10
68 10J1H WASHER 1.10
69 108WS O-RING 4 X 6 1.10
71 103H1 FIXING BOLT 1.10
72 13RVL LINE GUARD PLATE 11.55
73 10MGC FIXING BOLT 1.10
75 103EC FIXING BOLT 1.10
77 10LVK FIXING BOLT 1.10
78 10LUX FIXING BOLT 1.10
79 104SZ CROSS GEAR UKE B 1.65
80 10BHX CROSS GEAR SHAFT WASHER (A) 1.10
81 10L7V SPOOL ASSEMBLY 90.20
82 10AAD MAGNETIC PLATE 1.65
83 105NE E TYPE STOP RING 3 1.10
84 1057S SPOOL SHAFT CONTACT TALLY (B) 1.10
86 103EF FIXING BOLT 1.10
87 108WA O-RING 1.65
88 109LN LUBRICATION HOLE CAP 3.85
89 103C2 FIXING BOLT 1.10
92 10CCX SD KNOB NAMEPLATE 1.65
93 10C60 NAMEPLATE SHEET 2.75
94 10KNF DAMPER SPRING 1.65
96 108SK WASHER 1.10
97 108Q2 BODY FRAME CONTACT WASHER 1.10
101 10MDK REEL WRENCH (ACCESSORY) 3.85
112 10D3N STAR DRAG PLATE 2.75
113 1071T STAR DRAG WASHER 4.95
121 10FFM HANDLE FIXING NUT 2.75
122 10AXD STAR DRAG 17.05
123 10A76 STAR DRAG SPRING 2.75
124 10A0J STAR DRAG FIXING NUT 2.75
127 105H7 MAIN GEAR SHAFT 22.55
128 10NDH CROSS GEAR RECEIVER (A) 1.65
130 10474 CLUTCH YOKE 2.75
131 10K0R CLUTCH CAM 2.75
132 10608 CLUTCH CLAW 3.85
133 10491 CLUTCH CLAW SPRING 1.65
134 10NPQ CLUTCH PLATE 6.05
135 1099F CLUTCH LEVER RECEIVER (B) 2.75
136 10P5E CLUTCH LEVER 6.05
137 10BC0 BODY B CAM LEVER 2.75
138 13S7C LEVEL WIND GUARD 17.05
139 13RL5 THUMB REST 34.10
140 13G0S MAIN BODY FRAME 148.50
141 13FVV MAIN BODY FRAME B RECEIVER ASSEMBLY 168.30
142 13FJA BODY B ASSEMBLY 69.85
143 13HZL HANDLE ASSEMBLY 90.20
144 10BDT BR KNOB NAMEPLATE 2.75
151 13HC5 BODY A ASSEMBLY 92.40
152 10CRU MAIN GEAR 24.75
153 10CV8 PINION GEAR 19.25
1001 13V09 HANDLE NIPPLE (FOR LEFT SIDE, PADDLE TYPE) 11.55
1100 13M90 HANDLE CAP 2.75
1200 106C0 NIGIRI FIXING NUT 1.65
1300 104FH WASHER 2.20
1400 109VL KNOB FIXING SHAFT PIPE 3.85
1500 13HS3 HANDLE 28.05
BNKI 13WLC EXPLODED VIEW 1.65
HNBT 106C0 NIPPLE FIXING NUT 1.65
HNLP 109VL KNOB FIXING SHAFT PIPE 3.85
HNW1 104FH WASHER 2.20
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
RC0A 10F5D ROLLER CLUTCH BEARING A-RB 17.05
TRST 13VJS INSTRUCTION MANUAL 1.65
