[SHIMANO] Genuine Spare Parts for 17 Stephano SS 100HG Product code: 037718 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4310

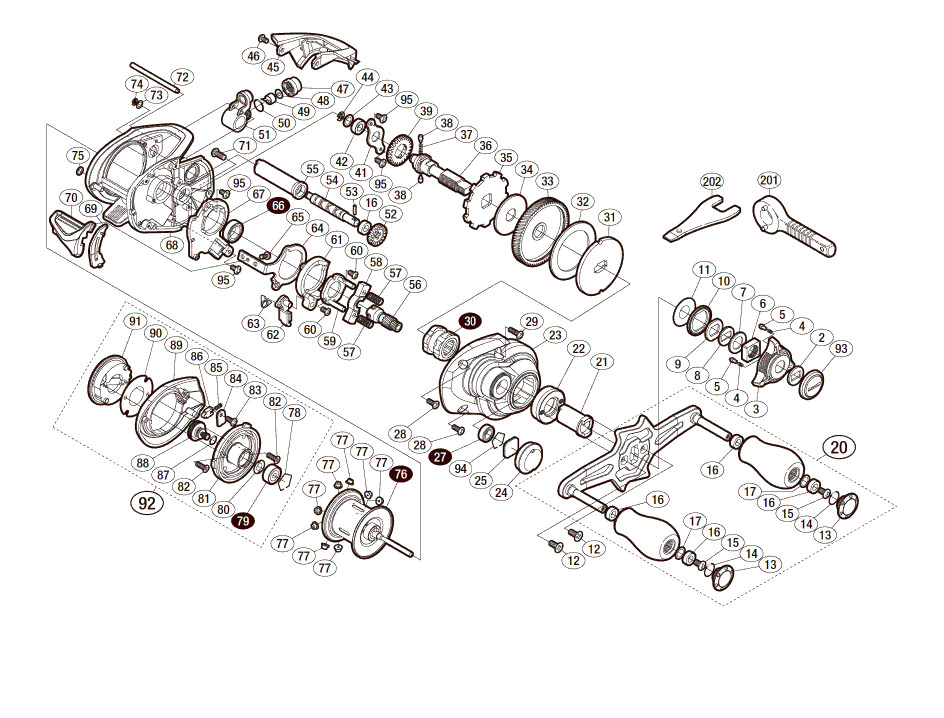

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
2	13MGL	HANDLE FIXING BOLT YURUMI STOPPER	1.65
3	13UZE	STAR DRAG	6.05
4	10BT2	CLICK SPRING	1.65
5	10BT0	CLICK PIN	1.65
6	13V9H	STAR DRAG FIXING NUT	3.85
7	10J1N	STAR DRAG SPACER	1.65
8	109F5	DRIVE GEAR WASHER	1.65
9	13UZS	HANDLE CATCH WASHER	1.10
10	10J20	STAR DRAG CLICK PLATE	1.65
11	13PFG	MECHANICAL BRAKE WASHER	1.10
12	13NWL	FIXING BOLT	1.10
13	13M8X	HANDLE CAP	4.95
14	10LAA	O-RING	1.10
15	10LFA	FIXING BOLT	1.10
16	10PXZ	HANDLE KNOB BUSH	1.65
17	104FH	WASHER	2.20
20	13JBX	HANDLE ASSEMBLY	78.65
21	13UD8	ROLLER CLUTCH INNER TUBE	9.35
22	13VFN	RETAINER HANDLE	6.05
23	13HMH	BODY A	22.55
24	13UD7	LUBRICATION HOLE CAP	6.05
25	1085F	MECHANICAL BRAKE WASHER	1.10
27	105BP	BALL BEARING (5 X 9 X 3)	13.75
28	10LCY	FIXING BOLT	1.10
29	10LCW	THUMB REST FIXING BOLT	1.10
30	10F5D	ROLLER CLUTCH BEARING A-RB	17.05
31	10D3N	STAR DRAG PLATE	2.75
32	106XT	STAR DRAG WASHER	6.05
33	13URZ	DRIVE GEAR	22.55
34	10CHF	STAR DRAG WASHER	6.05
35	10R6Z	STOPPER GEAR	6.05
36	13UKY	DRIVE GEAR SHAFT	11.55
37	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
38	10HJG	WORM SHAFT GEAR PINS	1.65
39	10J47	WORM SHAFT GEAR	2.75
41	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
42	10DQF	DRIVE GEAR SHAFT BUSHING	1.65
43	10C47	MAIN GEAR SHAFT WASHER	1.10
44	105NK	E TYPE STOP RING 2.5	1.10
45	13SBY	LEVEL WINDING GUARD	6.05
46	10MPD	FIXING BOLT	1.10
47	10FJB	LEVEL WINDING RECEIVER	1.65
48	104TX	WORMSHAFT WASHER	1.10
49	10TPT	WORM SHAFT PIN	2.75
50	108WQ	O-RING	1.65
51	10NVR	LEVEL WINDING ASSEMBLY	9.35
52	10FNV	WORM SHAFT GEAR	2.75
53	10AEZ	WORM SHAFT PIN	1.10
54	10TPP	WORM SHAFT	6.05
55	10R10	LEVEL WINDING PIPE	1.65
56	13SMT	PINION GEAR	11.55
57	10487	CLUTCH YOKE SPRING	1.10
58	1046V	CLUTCH YOKE	1.65
59	10F3X	CLUTCH CAM PUSH PLATE	3.85
60	10LVE	FIXING BOLT	1.10
61	10K0N	CLUTCH CAM	2.75
62	10MME	CLUTCH CLAW	3.85
63	10R1H	CLUTCH CLAW SPRING	1.65
64	10QZV	CLUTCH PLATE	4.95
65	10LF4	FIXING BOLT	1.10
66	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
67	10R09	BODY A SEAT	3.85
68	13G9C	FRAME	50.60
69	10QZW	CLUTCH LEVER RECEIVER (B)	1.65
70	10R1J	CLUTCH LEVER	6.05
71	10LFL	FIXING BOLT	1.65
72	10QSH	LEVEL-WIND GUIDE	1.65
73	10FJZ	WASHER	1.10
74	105NC	E TYPE RETAINING RING 2	1.10
75	108PY	FRAME CONTACT WASHER	1.65
76	13AVC	SPOOL ASSEMBLY (WITH BEARING)	56.10
77	13SFV	BRAKE COLLAR (M) RED	1.10
78	1054D	BEARING PULL-OUT STOPPER	1.10
79	105C2	BALL BEARING (3 X 10 X 4)	13.75
80	13UCZ	MECHANICAL BRAKE WASHER	1.10
81	13FY9	FRAME B BEARING ASSEMBLY	17.05
82	13NWK	FIXING BOLT	1.10
83	1055J	FIXING BOLT	1.65
84	10KVL	CLICK PIN FIXING PLATE	1.10
85	10K07	CLICK SPRING	1.65
86	13RJG	CLICK PIN	1.65
87	108WS	O-RING 4X6	1.10
88	13U16	MECHANICAL BRAKE KNOB	9.35
89	13RFK	BODY B	11.55
90	13GFP	WASHER	2.75
91	13FYP	BRAKE KNOB ASSEMBLY	17.05
92	13FS6	BODY B ASSEMBLY	56.10
93	13MB3	HANDLE FIXING BOLT	9.35
94	1057X	STOPPER	1.65
95	10LCT	FIXING BOLT	1.65
201	10NC0	REEL WRENCH (ACCESSORY)	1.65
202	10A61	REEL WRENCH (ACCESSORY)	3.85
PUNT	13JQC	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	2.75
