[SHIMANO] Genuine Spare Parts for 13 Metanium HG RIGHT Product code: 030467 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Not available

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

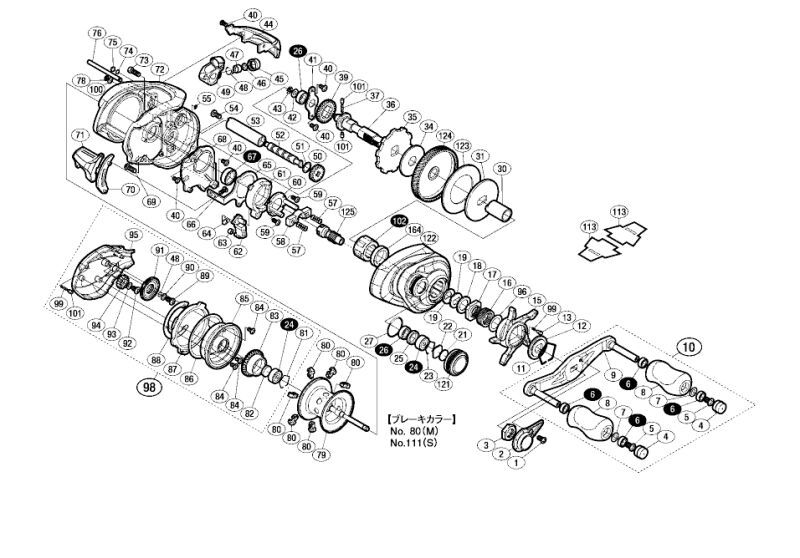

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103EE	FIXING BOLT	2.75
2	10Q5N	RETAINER	6.05
3	10FSM	HANDLE FIXING NUT	2.75
4	106JX	HANDLE CAP	1.65
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	1064U	HANDLE KNOB	11.55
9	10A64	HANDLE KNOB	28.05
10	10CEP	HANDLE ASSEMBLY	90.20
11	10KXV	STAR DRAG CLICK PLATE	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10BT0	CLICK PIN	1.65
15	10D6B	STAR DRAG	17.05
16	10A71	STAR DRAG SPRING	2.75
17	10A0B	STAR DRAG FIXING NUT	2.75
18	10J1N	STAR DRAG SPACER	1.65
19	10D60	MAIN GEAR WASHER (C)	1.65
21	10896	MECHANICAL BRAKE WASHER	1.10
22	1085F	MECHANICAL BRAKE WASHER	1.10
23	10GEX	BEARING PULL-OUT STOPPER	1.65
24	105C0	BALL BEARING (3 X 10 X 4)	13.75
25	10EYU	BEARING SPACER	2.75
26	105BP	BALL BEARING (5X9X3)	13.75
27	108WK	O-RING SM14	1.65
30	10CCL	INNER TUBE	6.05
31	10D3N	STAR DRAG PLATE	2.75
34	10CJ1	STAR DRAG WASHER	3.85
35	10D6X	STOPPER GEAR	3.85
36	1058G	DRIVE GEAR SHAFT	28.05
37	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
39	10JAG	WORM SHAFT GEAR	2.75
40	10MT2	FIXING BOLT	1.10
41	109T2	DRIVE GEAR SHAFT FIXING PLATE	2.75
42	10C47	MAIN GEAR SHAFT WASHER	1.10
43	105NK	E TYPE STOP RING 2.5	1.10
44	10FTQ	LEVEL WINDING GUARD	9.35
45	10FJD	LEVEL WINDING RECEIVER	3.85
46	10CFW	ADJUSTMENT WASHER SET	1.10
47	10FFW	WORM SHAFT PIN	2.75
48	108WQ	O-RING	1.65
49	10NVM	LEVEL WINDING ASSEMBLY	22.55
50	10FNZ	WORM SHAFT GEAR	2.75
51	10G84	WASHER	1.10
52	104T7	WORM SHAFT	9.35
53	10NJD	LEVEL WINDING PIPE	1.65
54	10LZD	FIXING BOLT	1.65
55	105NB	E TYPE STOP RING 1.5	1.10
57	104BU	CLUTCH YOKE SPRING	1.10
58	1046S	CLUTCH YOKE	1.65
59	10LVH	CLUTCH CAM FIXING BOLT	1.10
60	10F42	CLUTCH CAM PUSH PLATE	3.85
61	10KSB	CLUTCH CAM	2.75
62	105ZU	CLUTCH CLAW	3.85
63	1048C	CLUTCH CLAW BUSHING	1.65
64	104CN	CLUTCH CLAW SPRING	1.65
65	10QGF	CLUTCH PLATE	4.95
66	103C0	FIXING BOLT	1.10
67	10EX8	BALL BEARING (8X12X3.5)	13.75
68	10BVJ	BODY A SEAT	3.85
69	103CG	FIXING BOLT	1.10
70	1096Y	CLUTCH LEVER RECEIVER (B)	1.65
71	10MWD	CLUTCH LEVER	9.35
72	10EV7	FRAME	123.75
73	10M2E	FIXING BOLT	1.65
74	108SK	WASHER	1.10
75	108Q2	BODY FRAME TATARI WASHER	1.10
76	10GUE	LEVEL WINDING GUIDE	3.85
78	105NC	E TYPE RETAINING RING 2	1.10
79	10L10	SPOOL ASSEMBLY	101.20
80	105M4	BRAKE SHOE (M) RED	1.10
81	10GEW	BEARING RETAINING CLAMP	1.10
82	1057S	SPOOL SHAFT CONTACT (B)	1.10
83	10EXP	BRAKE PIPE GEAR	13.75
84	103N4	FIXING BOLT	1.10
85	10F0J	FRAME B RECEIVER ASSEMBLY	22.55
86	104N1	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
87	10BAF	BODY B CAM LEVER	2.75
88	108AX	BODY B RECEIVER ADJUSTMENT WASHER	1.65
89	103LE	FIXING BOLT	1.10
90	10GFB	CAM LEVER ADJUSTMENT WASHER	1.10
91	10AZ7	BR KNOB	2.75
92	103L7	FIXING BOLT	1.10
93	10G6W	BWASHER	1.10
94	10CLF	INTERMEDIATE GEAR	1.65
95	10A9J	BODY B	39.60
96	10HHM	SLIDER WASHER (9X13X0.2)	1.10
98	10HSX	BODY B SET	84.15
99	10988	CLICK SPRING	1.65
100	105EK	CLICK BUTTON WASHER	1.10
101	10HJG	WORM SHAFT GEAR PIN	1.65
102	10TM8	ROLLER CLUTCH	17.05
111	105M5	BRAKE SHOE (S) (ACCESSORY) WHITE	1.10
113	10PBQ	LEG PROTECTION SHEET	1.65
121	10KDG	MECHANICAL BRAKE KNOB	9.35
122	10HXX	MAIN UNIT A SET	73.15
123	106XS	STAR DRAG WASHER	4.95
124	10CM2	DRIVE GEAR	39.60
125	10CPN	PINION GEAR	17.05
164	10L0D	DRIVE GEAR BEARING KEBUSH	2.75
BNKI	13WK7	EXPLODED VIEW (ACCESSORIES)	1.65
HONT	10HSX	BODY B ASSEMBLY	84.15
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VHN	INSTRUCTION MANUAL (ACCESSORY)	1.65
