[SHIMANO] Genuine Spare Parts for 13 STELLA SW 30000 Product Code: 030740 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

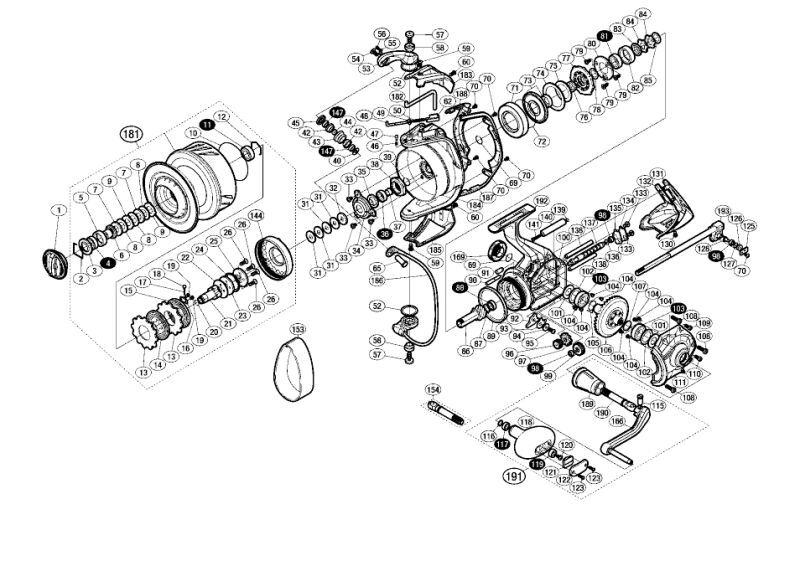

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QPR	REEL BAG (ACCESSORY)	34.10
1	102E6	DRAG KNOB SET	45.10
2	10B6K	STOPPER SPRING	1.10
3	10LQZ	WATERPROOF SEAL	6.05
4	10KX7	BALL BEARINGS (10 X 15 X 4)	13.75
5	10LWS	SPOOL BEARING SPACER	6.05
6	10LWL	SPOOL BEARING RECEIVER	9.35
7	10BA1	OVAL WASHER	2.75
8	10344	DRAG WASHERS	11.55
9	10BEB	EAR WASHERS	2.75
10	108WD	O-RING AS568-31	1.10
11	10BGD	BALL BEARING (9 X 17 X 5)	13.75
12	10LWM	BEARING STOP	1.10
13	10C18	DRAG WASHER	34.10
14	10BS6	DRAG PLATE	6.05
15	10BY2	DRAG PLATE	6.05
16	109ZN	DRAG CLICK SPRING GUIDE	1.65
17	10JMG	DRAG CLICK SPRING	1.65
18	10382	SPOOL PIN	2.75
19	10LV7	FIXING BOLT	1.10
20	108WQ	O-RING	1.65
21	10LTZ	MAIN SHAFT BEARING GUIDE	22.55
22	10P3G	SPOOL BEARING (C)	1.65
23	103P2	SPOOL BEARING SEAL (A)	3.85
24	10JPG	SPOOL SHAFT BEARING SEAL	2.75
25	10HZZ	SPOOL BEARING GUIDE (B)	2.75
26	10MLB	FIXING BOLT	1.10
31	10BXM	SPOOL WASHER SET	1.65
32	10J3W	SPOOL BEARING SEAL (D)	1.65
33	10LZ2	FIXING BOLT	2.75
34	10K31	RETAINER	2.75
35	107F5	ROTATING FRAME BEARING SEAL	2.75
36	104JC	BALL BEARING (7 X 13 X 4)	13.75
37	1072T	ROTOR BEARING COLLAR	6.05
38	10810	ROTOR NUT	11.55
39	10CG0	O-RING 19.5	1.65
40	107F1	ARM FIXED SHAFT COLLAR	3.85
42	107RM	LINE ROLLER BUSH	2.75
43	10KUU	LINE ROLLER	17.05
44	10GAG	ROLLER BEARING COLLAR	3.85
45	1079Z	LINE ROLLER BEARING COLLAR	6.05
46	1077Q	BAIL TRIP LEVER CLICK SPRING	1.65
47	10CH8	BAIL TRIP LEVER CLICK PIN	1.65
48	105YX	ARM SPRING GUIDE (A)	1.65
49	10HD9	SPRING GUIDE (A) COLLAR	1.65
50	105FZ	ARM CAM SPRING	1.65
52	10J7H	WAGON	1.10
53	10KHB	ARM CAM	45.10
54	10K46	FIXING BOLT	6.05
55	107LE	FIXING BOLT RETAINER	2.75
56	107LF	FIXING BOLT RETAINING CLIP	3.85
57	10Q86	FIXING BOLT	6.05
58	10K7M	FIXING BOLT COLLAR	3.85
59	10CYT	GUARD FIXING BOLT (A)	2.75
60	10CYU	FIXING BOLT	2.75
62	1077E	ARM CAM SPRING SEAT	2.75
65	10Q3F	ARM FIXING SHAFT	9.35
69	108WP	O-RING	1.65
70	10MT4	FIXING BOLT	1.10
71	10HFY	ROLLER CLUTCH COVER	22.55
72	10MLQ	O-RING	3.85
73	10QRN	ROLLER CLUTCH SEAL ASSEMBLY	11.55
74	10HG0	ROLLER CLUTCH FELT	1.65
75	10L5Y	ROLLER CLUTCH COVER PLATE	1.65
76	105B6	STOPPER	2.75
77	10QRF	ROLLER CLUTCH ASSEMBLY	22.55
78	10HHM	SLIDER WASHER (9 X 13 X 0.2)	1.10
79	10ML2	FIXING BOLT	2.75
80	1054W	BEARING PUSH PLATE	3.85
81	10BGC	BALL BEARING (9 X 17 X 5)	13.75
82	10JA9	BEARING COLLAR	9.35
83	10BAE	PINION GEAR COLLAR	6.05
84	107VM	TOOTHED STOPPER	2.75
85	10HHP	SLIDER WASHER (9 X 13 X 0.5)	1.10
86	10BYT	PINION GEAR	56.10
87	10GFD	WASHER	1.10
88	104PN	BALL BEARING (7 X 11 X 3)	13.75
89	104AZ	FRICTION RING	3.85
90	10CL8	INTERMEDIATE GEAR SHAFT	6.05
91	10AYR	BODY FLANGE SEAL	2.75
92	10J3S	ASSIST STOPPER	1.65
93	102VH	ASSIST STOPPER COVER	1.65
94	10J3U	ASSIST STOPPER COLLAR	3.85
95	103HM	FIXING BOLT	1.10
96	106RG	INTERMEDIATE GEAR (S)	9.35
97	10CNQ	INTERMEDIATE GEAR (L)	9.35
98	10PDA	BALL BEARING (3 X 6 X 2.5)	13.75
99	10HBM	WORM SHAFT GEAR	9.35
100	10CD9	BODY SEAL	7.15
101	10CD2	BEARING SEAL	1.65
102	10BGG	WASHER	1.65
103	104PV	BALL BEARING (10 X 19 X 5)	13.75
104	10MGG	FIXING BOLT	1.10
105	10805	STOPPER SPRING	1.65
106	10AAR	DRIVE GEAR SET	67.65
107	105U4	ADJUSTMENT WASHER SET	1.10
108	10PVN	FIXING BOLT	2.75
109	10A6N	FIXING BOLT	1.65
110	10A6P	FIXING BOLT	1.65
111	1049H	COVER	56.10
115	10A9U	HANDLE SHAFT BOLT	3.85
116	10HV3	WASHER	1.10
117	105BN	BALL BEARING (5 X 9 X 3)	13.75
118	102KE	HANDLE KNOB	22.55
119	10KX1	BALL BEARING (4 X 9 X 4)	13.75
120	103E9	FIXING BOLT	1.10
121	10B97	HANDLE CAP	2.75
122	108T1	HANDLE KNOB NAMEPLATE	3.85
123	103NM	FIXING BOLT	2.75
125	10H7S	CROSS GEAR PIN PUSH PLATE	1.65
126	10JV4	CROSS GEAR PIN COLLAR	2.75
127	1059T	WASHER	1.10
128	106V5	CROSS GEAR PIN	6.05
130	10MHG	GUARD FIXING BOLT (B)	2.75
131	10NKQ	BODY GUARD	11.55
132	107HG	BODY COVER	2.75
133	103H7	FIXING BOLT	1.65
134	10AT8	WORM SHAFT COVER	1.65
135	10H47	WORM SHAFT COVER SEAT	1.65
136	10HWN	ADJUSTMENT WASHER	1.10
137	10821	WORM SHAFT	11.55
138	1035E	SLIDER GUIDE	2.75
139	108W9	O-RING (3 X 5)	1.65
140	10AYM	BODY GUARD COLLAR	2.75
141	10LSC	FIXING BOLT	1.10
144	10NF8	DRAG COVER ASSEMBLY	22.55
147	104K5	BALL BEARING (5 X 8 X 2.5)	13.75
153	109UY	THREAD STOPPER BELT (LL) (ACCESSORY)	6.05
154	10FHW	HANDLE SHAFT (RIGHT H ONLY) (ACCESSORY)	11.55
166	106SJ	HANDLE	78.65
169	10N47	HANDLE SCREW CAP	17.05
181	10HQH	SPOOL ASSEMBLY	343.20
182	106KK	INTERNAL GRIPPER LEVER	3.85
183	1087X	ARM CAM SPRING COVER	11.55
184	10PY6	ROTOR	95.70
185	10MNA	BAIL MOUNTING CASE COVER	11.55
186	10733	BAIL ASSEMBLY	67.65
187	10746	ROTOR GUARD (A)	4.95
188	107AJ	ROTOR GUARD (B)	4.95
189	10NHK	HANDLE SHAFT FLANGE	73.15
190	10F8E	HANDLE SHAFT (LEFT HANDLE ONLY)	11.55
191	10HLM	HANDLE ASSEMBLY	190.30
192	1034Z	BODY	201.30
193	10NF4	MAIN SHAFT ASSEMBLY	39.60
BNKI	13QZ3	EXPLODED VIEW (ACCESSORIES)	1.65
DDJG	10A2C	DISK DRAG TOOL	34.10
ITOS	13QPZ	STOPPER SEAL	1.65
MH01	13NA1	NAMEPLATE ON THE BACK OF THE LEG	2.75
OIL2	10LQ1	SSRO-01 OIL (4.5G)	3.85
TRST	13FHM	INSTRUCTION MANUAL (ACCESSORY)	3.85
