[SHIMANO] Genuine Spare Parts for 21 Scorpion MD 300XG Product code: 043573 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 21 Scorpion MD 300XG Product code: 043573 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.96 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5067

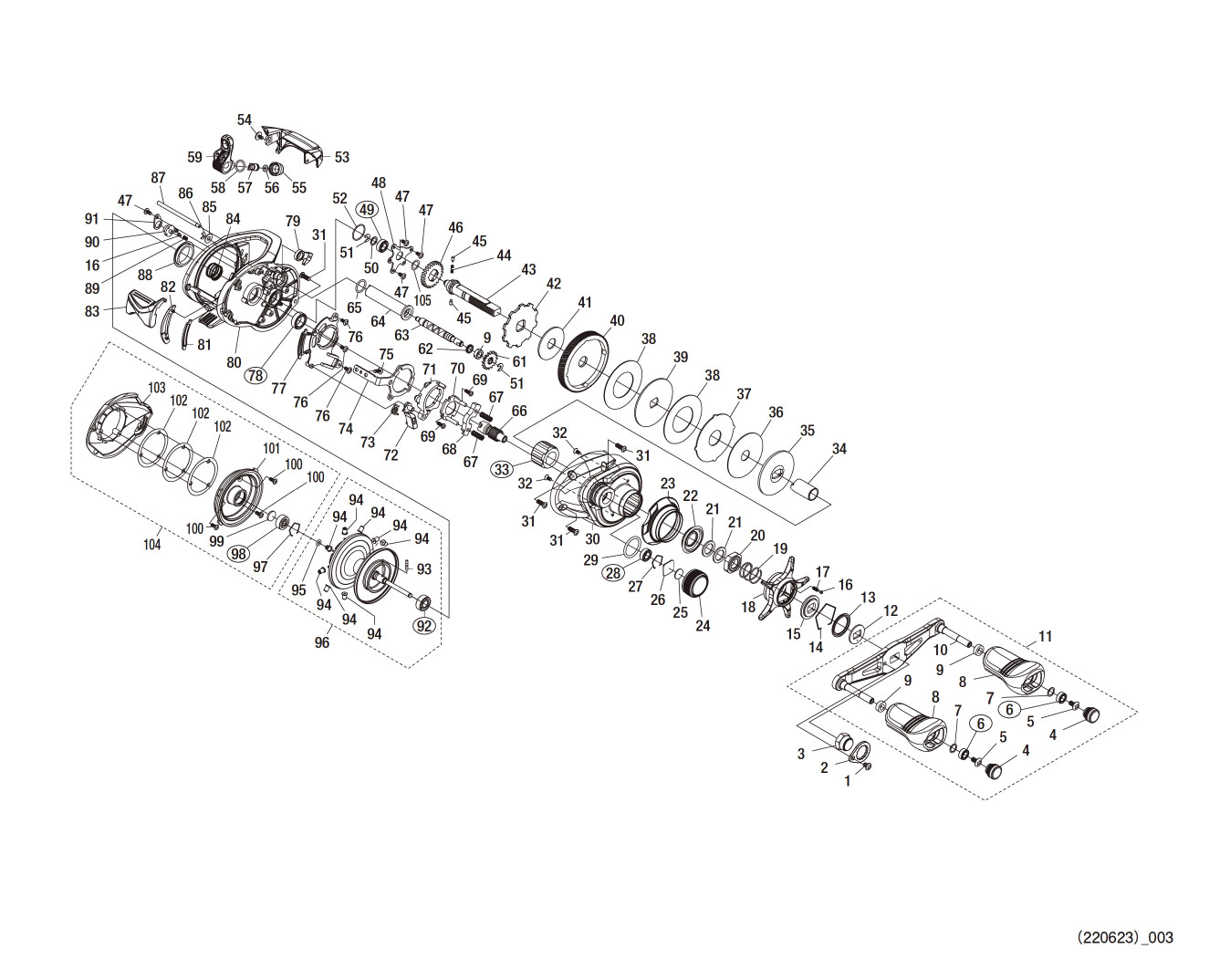

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH" , they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13NXD FIXING BOLT 1.10
2 13VAD RETAINER 2.75
3 10FT1 HANDLE FIXING NUT 2.75
4 13MBM HANDLE CAP 4.40
5 10LFA FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10326 HANDLE KNOB 11.55
9 10PXZ HANDLE KNOB BUSH 1.65
10 13J26 HANDLE SHAFT ASSEMBLY 22.55
11 13JDZ HANDLE ASSEMBLY 67.65
12 10QVN HANDLE RECEIVING WASHER 1.65
13 10QVP STAR DRAG SEAL 2.75
14 10KXW STAR DRAG CLICK PLATE 1.65
15 10J26 STAR DRAG CLICK PLATE 1.65
16 10MFC CLICK PIN 1.65
17 10BT2 CLICK SPRING 1.65
18 13V48 STAR DRAG 16.50
19 10A70 STAR DRAG SPRING 2.75
20 1024H STAR DRAG FIXING NUT 2.75
21 10J1N STAR DRAG SPACER 1.65
22 10255 ROLLER CLUTCH SEAL 9.35
23 13U73 BODY A NAMEPLATE 1.65
24 13U29 MECHANICAL BRAKE KNOB 8.80
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 1057X STOPPER FOR EXTRACTION 1.65
28 105BR BALL BEARING (5 X 9 X 3) 13.75
29 108WK O-RING SM14 1.65
30 13TX8 BODY A 33.55
31 101WJ FIXING BOLT 1.65
32 10LA3 FIXING BOLT 1.65
33 10F37 ROLLER CLUTCH BEARING *Cannot be ordered 17.05
34 10250 ROLLER CLUTCH INNER TUBE 6.05
35 1025E STAR DRAG PLATE 2.20
36 1024D STAR DRAG WASHER 8.80
37 1024F STAR DRAG WASHER 2.20
38 1025D STAR DRAG WASHERS 8.80
39 1024E STAR DRAG PLATE 2.20
40 13UXY DRIVE GEAR 22.55
41 1025A STAR DRAG WASHERS 6.05
42 10D73 STOPPER GEAR 6.05
43 10257 DRIVE GEAR SHAFT 14.85
44 10JDZ SPRING FOR WORM SHAFT GEAR 1.65
45 10HJG WORM SHAFT GEAR PINS 1.65
46 10J47 WORM SHAFT GEAR 2.75
47 10LCT FIXING BOLT 1.65
48 1024G DRIVE GEAR SHAFT FIXING PLATE 2.75
49 105BP BALL BEARING (5 X 9 X 3) 13.75
50 10G6D WASHER 1.65
51 105NK E-TYPE RETAINING RING 2.5 1.10
52 10LA8 O-RING 1.65
53 13SHS LEVEL WIND GUARD 2.20
54 10LCZ FIXING BOLT 1.65
55 10FJB LEVEL WINDING RECEIVER 1.65
56 10CFU WASHER 1.10
57 10BHQ WORM SHAFT PIN 2.75
58 108WQ O-RING 1.65
59 10R7V LEVEL WINDING ASSEMBLY 13.75
61 1024Q WORM SHAFT GEAR 2.75
62 1024R WORM SHAFT SEAL 3.85
63 13S6F WORM SHAFT 4.40
64 1024N LEVEL WINDING PIPE 1.65
65 101GT O-RING 1.65
66 13SPY PINION GEAR 11.55
67 104BC CLUTCH YOKE SPRING 1.10
68 1046X CLUTCH YOKE 1.65
69 10LVJ FIXING BOLT 1.10
70 10QVM CLUTCH CAM PUSH PLATE 3.85
71 10254 CLUTCH CAM 2.75
72 101J2 CLUTCH CLAW 9.35
73 101J3 CLUTCH CLAW SPRING 1.65
74 101J9 CLUTCH PLATE 4.95
75 10LCL FIXING BOLT 1.10
76 10SUT FIXING BOLT 1.65
77 10251 MAIN UNIT A SEAT 3.85
78 105BT BALL BEARING (8 X 12 X 3.5) 13.75
79 10MW2 STOPPER CLAW ASSEMBLY 3.85
80 13GBD FRAME ASSEMBLY 39.60
81 101J8 CLUTCH LEVER SEAL 3.85
82 101JA CLUTCH LEVER RECEIVER (B) 1.65
83 101J4 CLUTCH LEVER 6.05
84 10EZE BB PUSH SPRING 1.65
85 10FJZ WASHER 1.10
86 105NC E TYPE STOP RING 2 1.10
87 1024P LEVEL-WIND GUIDE 1.65
88 1024L FRAME CENTER SEAL 2.75
89 10GQZ CLICK SPRING 1.10
90 1019B BODY B CAM LEVER 2.75
91 101UL BODY B CAM LEVER PUSH PLATE 1.65
92 105CA BALL BEARING (5 X 11 X 4) 13.75
93 10MD1 SPOOL CLUTCH PIN 1.10
94 10ECR BRAKE COLLAR (CLEAR) (ACCESSORY) 1.65
95 10EZ7 O RING 1.10
96 13GPA SPOOL ASSEMBLY (WITH BEARING) 78.65
97 1054D BEARING PULL-OUT STOPPER 1.10
98 105C2 BALL BEARING (3 X 10 X 4) 13.75
99 10EX5 SPOOL SHAFT ATTACHMENT B 1.10
100 10LA4 FIXING BOLT 1.10
101 10SWA FRAME B BEARING ASSEMBLY 13.75
102 13GGP WASHER 2.75
103 13RGV BODY B 5.50
104 13FTQ BODY B ASSEMBLY 33.00
105 10GR7 WASHER 1.10
152 10CPE BRAKE COLLAR (GRAY) 1.65
PUNT 13JRH INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.20
