[SHIMANO] Genuine Spare Parts for 21-22 CALCUTTA CONQUEST 101 Product code: 042330 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.94 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/4945

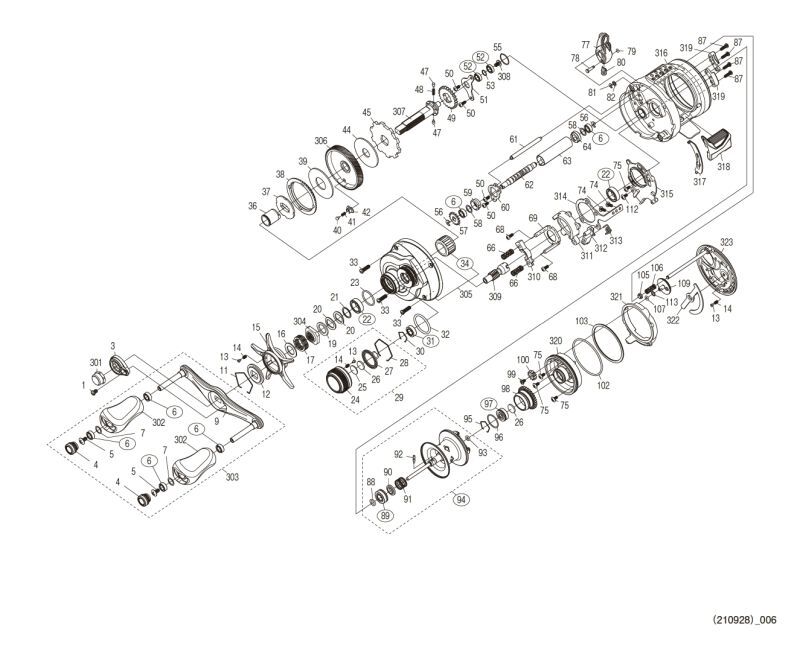

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "34 / ROLLER CLUTCH", "89 / BALL BEARING" and "92 /SPOOL CLUTCH PIN ", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13WNH | REEL BAG (ACCESSORY) | 11.00 |
1 | 10CZ5 | FIXING BOLT | 2.75 |
3 | 10T7R | RETAINER | 1.10 |
4 | 10T7N | HANDLE CAP | 8.80 |
5 | 103E9 | FIXING BOLT | 1.10 |
6 | 104VX | BALL BEARING (4X7X2.5) | 13.75 |
7 | 104FH | WASHER | 2.20 |
9 | 100TK | HANDLE SHAFT ASSEMBLY | 44.00 |
11 | 10KXV | STAR DRAG CLICK PLATE | 1.65 |
12 | 10J1Y | STAR DRAG CLICK PLATE | 1.65 |
13 | 10B27 | CLICK PIN | 1.65 |
14 | 10988 | CLICK SPRING | 1.65 |
15 | 10T7Q | STAR DRAG | 22.00 |
16 | 100CU | WASHER | 1.10 |
17 | 10A71 | STAR DRAG SPRING | 2.75 |
19 | 10J1N | STAR DRAG SPACER | 1.65 |
20 | 10D60 | MAIN GEAR WASHER (C) | 1.65 |
21 | 105PW | STAR DRAG BEARING WASHER | 1.10 |
22 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
23 | 1027V | O-RING | 1.65 |
24 | 10T7H | MECHANICAL BRAKE KNOB | 20.35 |
25 | 10896 | MECHANICAL BRAKE WASHER | 1.10 |
26 | 1057S | SPOOL SHAFT CONTACT (B) | 1.10 |
27 | 10L2F | MECHANICAL BRAKE KNOB CLICK PLATE | 2.75 |
28 | 10L6X | MECHANICAL BRAKE KNOB SOUND STOP RING | 2.75 |
29 | 10TEE | MECHANICAL BRAKE KNOB ASSEMBLY | 36.85 |
30 | 1057X | EXTRACTION STOP | 1.65 |
31 | 105BP | BALL BEARING (5X9X3) | 13.75 |
32 | 108W8 | O-RING S-16 | 1.65 |
33 | 10C3N | FIXING BOLT | 2.75 |
34 | 1005E | ROLLER CLUTCH *Cannot be ordered | 17.05 |
36 | 10BN3 | ROLLER CLUTCH INNER TUBE | 6.05 |
37 | 10D55 | STAR DRAG PLATE | 6.05 |
38 | 10JB0 | DRAG CLICK SYRATCHET | 2.75 |
39 | 10CKS | STAR DRAG WASHER | 6.05 |
40 | 10C0T | DRAG CLICK PIN | 2.75 |
41 | 10J8A | DRAG CLICK SPRING | 1.65 |
42 | 10J87 | DRAG SPRING HOLDER | 1.65 |
44 | 10CHZ | STAR DRAG WASHER | 2.75 |
45 | 10RLS | STOPPER GEAR | 3.85 |
47 | 10HJG | PIN FOR WORM SHAFT GEAR | 1.65 |
48 | 10JDX | SPRING FOR WORM SHAFT GEAR | 1.65 |
49 | 10057 | WORM SHAFT GEAR | 2.75 |
50 | 10LVF | FIXING BOLT | 1.10 |
51 | 100GK | DRIVE GEAR SHAFT FIXING PLATE | 1.10 |
52 | 10SAM | BALL BEARING (4X7X2) | 13.75 |
53 | 10THF | WASHER | 1.10 |
55 | 10SZ4 | O-RING | 1.65 |
56 | 105NC | E TYPE STOP RING 2 | 1.10 |
57 | 10FNX | WORM SHAFT GEAR | 2.75 |
58 | 10G8G | WORM SHAFT GEAR | 1.10 |
59 | 10N9Q | WORM SHAFT HOLDER (A) | 1.65 |
60 | 10T7S | WORM SHAFT EXTRACTION STOP | 1.10 |
61 | 100GG | LEVEL WINDING GUIDE | 3.85 |
62 | 100GT | WORM SHAFT | 5.50 |
63 | 10T7G | LEVEL WINDING PIPE | 7.15 |
64 | 104SP | WORM SHAFT HOLDER (B) | 1.65 |
66 | 104BU | CLUTCH YOKE SPRING | 1.10 |
68 | 101CN | FIXING BOLT | 1.65 |
69 | 10F42 | CLUTCH CAM PUSH PLATE | 3.85 |
74 | 10559 | FIXING BOLT | 1.65 |
75 | 100BD | FIXING BOLT | 1.65 |
77 | 10TED | LEVEL-WIND ASSEMBLY | 51.70 |
78 | 100GC | WORM SHAFT PIN STOPPER | 1.10 |
79 | 10908 | O-RING | 1.65 |
80 | 100GJ | WORM SHAFT PIN | 4.40 |
81 | 105NB | E TYPE RETAINING RING 1.5 | 1.10 |
82 | 10GA7 | WASHER | 1.10 |
87 | 10LVP | FIXING BOLT | 2.75 |
88 | 10TNF | O-RING | 1.65 |
89 | 1005D | BALL BEARING (5X11X4) *Cannot be ordered | 13.75 |
90 | 10SWZ | BUSH | 1.65 |
91 | 10SJF | BEARING PUSH SPRING | 1.65 |
92 | 10MD0 | SPOOL CLUTCH PIN *Cannot be ordered | 1.65 |
93 | 10EZ7 | O-RING | 1.10 |
94 | 100TJ | SPOOL ASSEMBLY (WITH BEARING) | 101.20 |
95 | 10GEW | BEARING PULL-OUT STOPPER | 1.10 |
96 | 10LA8 | O RING | 1.65 |
97 | 10S37 | BALL BEARING (3 X 10 X 4) | 13.75 |
98 | 100N4 | BRAKE PIPE GEAR ASSEMBLY | 13.75 |
99 | 10PRT | FIXING BOLT | 1.10 |
100 | 10BGM | BR KNOB GEAR | 1.65 |
102 | 1006P | O-RING | 1.65 |
103 | 10T02 | WASHER | 2.75 |
105 | 10RLZ | BODY B SHAFT GUIDE | 1.65 |
106 | 10T7F | DAMPER SPRING | 1.10 |
107 | 10FMT | O RING | 1.10 |
109 | 100TQ | BRAKE DIAL ASSEMBLY | 31.35 |
112 | 10MPS | FIXING BOLT | 1.65 |
113 | 10SEJ | WASHER | 1.10 |
301 | 10T7X | HANDLE FIXING NUT | 10.45 |
302 | 13MB9 | HANDLE KNOB | 11.55 |
303 | 13AWY | HANDLE ASSEMBLY | 101.20 |
304 | 10A0C | STAR DRAG FIXING NUT | 2.75 |
305 | 13HPM | BODY A SET | 132.00 |
306 | 13UXK | DRIVE GEAR | 28.05 |
307 | 13ULL | DRIVE GEAR SHAFT | 13.20 |
308 | 10DR5 | FIXING BOLT | 1.10 |
309 | 13SPF | PINION GEAR | 22.00 |
310 | 1046U | CLUTCH YOKE | 1.65 |
311 | 10SKS | CLUTCH CAM | 2.75 |
312 | 105ZV | CLUTCH CLAW | 3.85 |
313 | 10N1V | CLUTCH CLAW SPRING | 1.65 |
314 | 13TD2 | CLUTCH PLATE | 2.20 |
315 | 13UEF | BODY A SEAT | 1.65 |
316 | 13GAL | FRAME ASSEMBLY | 165.00 |
317 | 13TD3 | CLUTCH LEVER HOLDER | 1.10 |
318 | 10282 | CLUTCH LEVER ASSEMBLY | 7.70 |
319 | 13S0Q | FRAME B CLUTCH CAM | 1.10 |
320 | 13FZC | FRAME B CLUTCH LEVER ASSEMBLY | 33.00 |
321 | 13RNF | BODY B CAM LEVER | 1.10 |
322 | 13RGN | BODY B SEAL | 1.10 |
323 | 13FTC | BODY B SEAL | 77.00 |
BNKI | 13WUX | EXPLODED VIEW (ACCESSORIES) | 1.10 |
BSS2 | 10RC4 | BRAKE SHOE (S) | 1.10 |
BST1 | 13SFU | BRAKE SHAFT | 1.10 |
OIL1 | 10LQ0 | B-100 OIL (4.5G) | 3.85 |
TRST | 13VTY | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
