  4. > [SHIMANO] Genuine Spare Parts for 19-20 CALCUTTA CONQUEST DC 201 Product code: 039798**Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 19-20 CALCUTTA CONQUEST DC 201 Product code: 039798**Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 19-20 CALCUTTA CONQUEST DC 201 Product code: 039798**Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

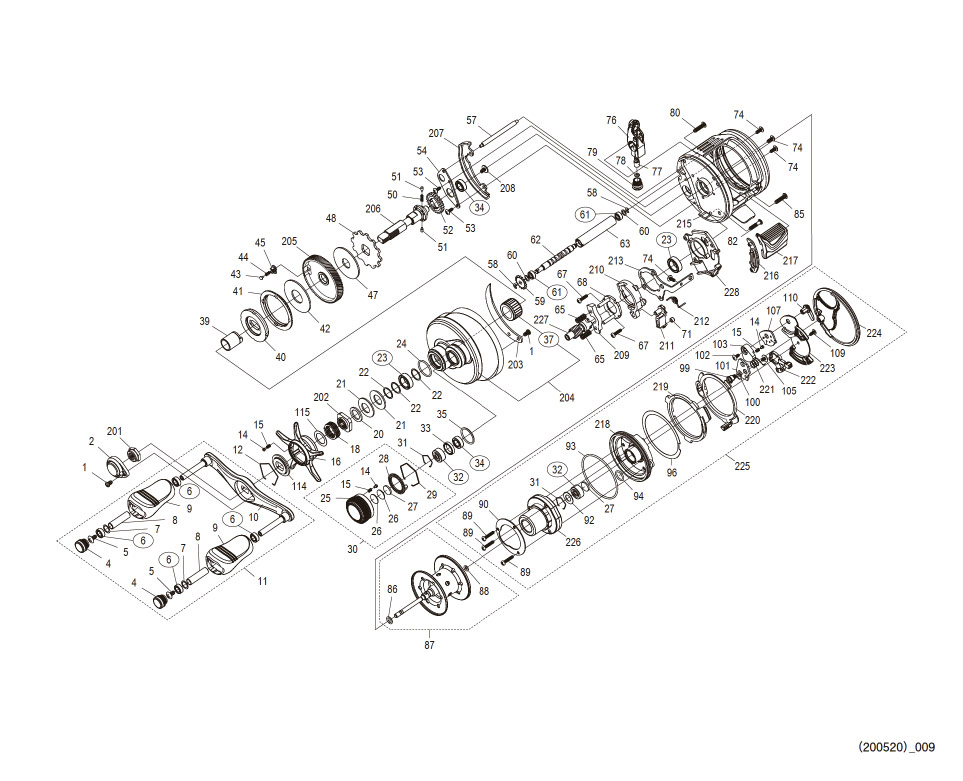

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WNF REEL BAG (ACCESSORY) 11.55
1 10CZ5 FIXING BOLT 2.75
2 100VN RETAINER 17.05
4 13MAV HANDLE CAP 7.15
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 109VL KNOB FIXING SHAFT PIPE 3.85
9 10325 HANDLE KNOB 11.55
10 13HVL HANDLE SHAFT ASSEMBLY 39.60
11 10RFV HANDLE ASSEMBLY 101.20
12 10KXV STAR DRAG CLICK PLATE STOPPER 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 100VT STAR DRAG 22.55
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 1052E SALA SPRING (DB8H) 1.65
22 13FMA WASHER 2.20
23 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
24 1027V O-RING 1.65
25 100VU MECHANICAL BRAKE KNOB 22.55
26 10896 MECHANICAL BRAKE WASHER 1.10
27 1057S SPOOL SHAFT CONTACT (B) 1.10
28 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
29 10L6X MECHANICAL BRAKE KNOB SOUND STOP RING 2.75
30 13HCM MECHANICAL BRAKE KNOB ASSEMBLY 34.10
31 10GEW BEARING EXTRACTION STOP 1.10
32 10S37 BALL BEARING (3 X 10 X 4) 13.75
33 10EYT BEARING SPACER 2.75
34 105BR BALL BEARING (5X9X3) 13.75
35 108W8 O-RING S-16 1.65
37 1005E ROLLER CLUTCH 17.05
39 10BN1 ROLLER CLUTCH INNER TUBE 6.05
40 10E9L STAR DRAG PLATE 9.35
41 10E9B DRAG CLICK SYLLATIC RATCHET 3.85
42 1027W STAR DRAG WASHER 9.35
43 10C0T DRAG CLICK PIN 2.75
44 10J8A DRAG CLICK SPRING 1.65
45 10J87 DRAG SPRING HOLDER 1.65
47 10CHZ STAR DRAG WASHER 2.75
48 13ULZ STOPPER GEAR 3.85
50 10JDZ WORM SHAFT GEAR SPRING 1.65
51 10HJG PIN FOR WORM SHAFT GEAR 1.65
52 10J6W WORM SHAFT GEAR 3.85
53 10MPP FIXING BOLT 1.10
54 109SU DRIVE GEAR SHAFT FIXING PLATE 3.85
57 100VB LEVEL WINDING GUIDE 6.05
58 105NC E TYPE STOP RING 2 1.10
59 10FNW WORM SHAFT GEAR 2.75
60 10GFJ WASHER 1.10
61 10PDA BALL BEARING (3X6X2.5) 13.75
62 104T8 WORM SHAFT 9.35
63 100VH LEVEL WINDING PIPE 11.55
65 104BB CLUTCH YOKE SPRING 1.10
67 10LUZ FIXING BOLT 1.10
68 10F3Y CLUTCH CAM PUSH PLATE 3.85
71 1048C CLUTCH CLAW BUSH 1.65
74 103C0 FIXING BOLT 1.10
76 13GGD LEVEL-WIND ASSEMBLY 39.60
77 10FFT WORM SHAFT PIN 3.85
78 10GD0 WASHER 1.10
79 100VG LEVEL WINDING RECEIVER 9.35
80 10JZ1 BODY A FIXING BOLT (A) 2.75
82 10A6J FIXING BOLT (A) 3.85
85 101XL FIXING BOLT 1.10
86 10TNF O RING 1.65
87 13GGE SPOOL ASSEMBLY 112.20
88 10EZ7 O-RING 1.10
89 10LV3 FIXING BOLT 1.10
90 101M9 SUBSTRATE MOUNTING PLATE 2.75
92 10B94 BEARING SEAL 1.65
93 10E9G O-RING 2.75
94 108WQ O-RING 1.65
96 13GGN WASHER 2.20
99 100VA BODY B SHAFT 6.05
100 13FM9 WASHER 2.20
101 100VS DAMPER BUSHING 3.85
102 10MT4 FIXING BOLT 1.10
103 13GGF MAGNET CAM ASSEMBLY 22.55
105 13JX5 FIXING BOLT 1.65
107 100VL SOUND EMISSION SHILLING 1.65
109 1055D FIXING BOLT 1.65
110 1011Q BRAKE DIAL 22.55
114 10J1Y STAR DRAG CLICK PLATE 1.65
115 10QXM WASHER 1.10
201 10FSN HANDLE FIXING NUT 2.75
202 10A0C STAR DRAG FIXING NUT 2.75
203 13T77 BODY FIXING PLATE NAMEPLATE 9.35
204 13HNH BODY A SET 112.20
205 13UWZ DRIVE GEAR 39.60
206 13ULA DRIVE GEAR SHAFT 11.55
207 13S03 WORM SHAFT GEAR COVER 11.55
208 10PVU FIXING BOLT 1.65
209 1046Y CLUTCH YOKE 1.65
210 10K0Y CLUTCH CAM 2.75
211 105ZV CLUTCH CLAW 3.85
212 10N1V CLUTCH CLAW SPRING 1.65
213 10QGL CLUTCH PLATE 4.95
215 13G9U FRAME ASSEMBLY 168.30
216 1096V CLUTCH LEVER HOLDER 1.65
217 13H6V CLUTCH LEVER ASSEMBLY 9.35
218 13RUB FRAME B RECEIVER 22.55
219 13S02 FRAME B CLUTCH CAM 1.65
220 13RMT BODY B CAM LEVER 1.65
221 13RN3 DAMPER SPRING 1.65
222 13FZ2 DC DIAL ASSEMBLY 22.55
223 13FZ3 BRAKE DIAL NAMEPLATE ASSEMBLY 9.35
224 13FM0 BODY B 45.10
225 13FSW BODY B ASSEMBLY 223.30
226 13RN9 BODY B SUBSTRATE ASSEMBLY 112.20
227 13SLT PINION GEAR 22.55
228 10RPE BODY A SHEET 3.85
BNKI 13WUC EXPLODED VIEW (ACCESSORIES) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VTH INSTRUCTION MANUAL (ACCESSORY) 1.65
