[SHIMANO] Genuine Spare Parts for 16 Metanium MGL LEFT Product code: 035318 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 Metanium MGL LEFT Product code: 035318 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.100 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3548

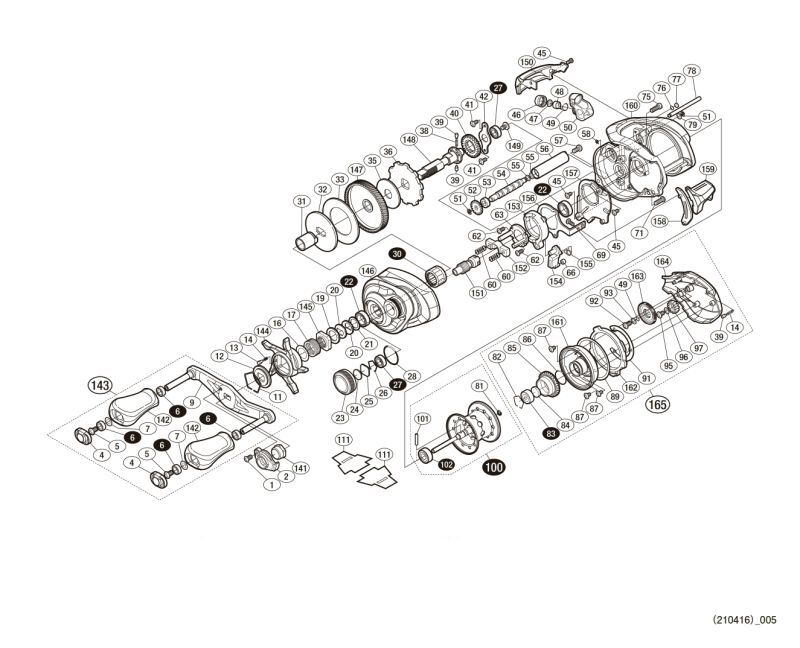

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH" and "101 / SPOOL CLUTCH PIN" and "102 / BALL BEARING" and "BSS1 / BRAKE SHOE S", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 103EE FIXING BOLT 2.75
2 10Q5S RETAINER 2.75
4 10TNK HANDLE CAP 1.65
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
9 101GH HANDLE 28.05
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Y STAR DRAG CLICK PLATE 1.65
13 10BT0 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
16 10HHM SLIDER WASHER (9 X 13 X 0.2) 1.10
17 10A71 STAR DRAG SPRING 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
23 10TMK MECHANICAL BRAKE KNOB 9.35
24 10896 MECHANICAL BRAKE WASHER 1.10
25 1085F MECHANICAL BRAKE WASHER 1.10
26 10R0Q RETAINER 1.65
27 105BP BALL BEARING (5 X 9 X 3) 13.75
28 108WK O-RING SM14 1.65
30 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
31 10TMS INNER TUBE 6.05
32 10D3N STAR DRAG PLATE 2.75
33 1071U STAR DRAG WASHER 6.05
35 10CJ1 STAR DRAG WASHER 3.85
36 10D6X STOPPER GEAR 3.85
38 10JDX SPRING FOR WORM SHAFT GEAR 1.65
39 10HJG WORM SHAFT GEAR PINS 1.65
40 10TQ5 WORM SHAFT GEAR 2.75
41 10LVD FIXING BOLT 1.10
42 109T2 DRIVE GEAR SHAFT FIXING PLATE 2.75
45 10MT2 FIXING BOLT 1.10
46 10FJD LEVEL WINDING GUIDE 3.85
47 10CFW ADJUSTMENT WASHER SET 1.10
48 10FFU WORM SHAFT PIN 1.65
49 108WQ O-RING 1.65
50 10NYJ LEVEL WINDING ASSEMBLY 34.10
51 105NC E TYPE STOPPER RING 2 1.10
52 10FNX WORM SHAFT GEAR 2.75
53 10PXY HANDLE GRIPPED BUSH (B) 1.65
54 10TPQ WORM SHAFT 9.35
55 10GFJ WORM WASHER 1.10
56 10NFW LEVEL WINDING PIPE 1.65
57 10LZD FIXING BOLT 1.65
58 105NB E TYPE STOPPER RING 1.5 1.10
60 104BU CLUTCH YOKE SPRING 1.10
62 10LVH CLUTCH CAM FIXING BOLT 1.10
63 10F42 CLUTCH CAM PUSH PLATE 3.85
66 1048C CLUTCH CLAW BUSH 1.65
69 103C0 FIXING BOLT 1.10
71 103CG CLUTCH CAM FIXING BOLT 1.10
75 10M2E FIXING BOLT 1.65
76 108Q2 BODY FRAME CONTACT WASHER 1.10
77 108Q2 BODY FRAME CONTACT WASHER 1.10
78 10GUE LEVEL WINDING GUIDE 3.85
79 10GA0 WASHER 1.10
81 10EZ7 O-RING 1.10
82 10GEW BEARING RETAINING CLIP 1.10
83 105C0 BALL BEARING (3 X 10 X 4) 13.75
84 1057S SPOOL SHAFT CONTACT (B) 1.10
85 101S2 BRAKE PIPE GEAR 17.05
86 10LA8 O-RING 1.65
87 103N7 FIXING BOLT 1.10
89 104MZ BODY B CAM LEVER ADJUSTMENT WASHER 1.65
91 108AW B GUIDE ADJUSTMENT WASHER 1.65
92 103LE FIXING BOLT 1.10
93 10GFB CAM LEVER ADJUSTMENT WASHER 1.10
95 103L7 FIXING BOLT 1.10
96 10G6W CAM LEVER ADJUSTMENT WASHER 1.10
97 10CLF INTERMEDIATE GEAR 1.65
100 13GU5 SPOOL ASSEMBLY (WITH BEARING) 112.20
101 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
102 10TMG BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
111 10PBQ LEG PROTECTION SHEET 1.65
141 10FFG HANDLE FIXING NUT 6.05
142 1032A HANDLE KNOB 11.55
143 10TR1 HANDLE ASSEMBLY 90.20
144 10TN1 STAR DRAG 17.05
145 10A0C STAR DRAG FIXING NUT 2.75
146 101GB BODY A ASSEMBLY 73.15
147 10CM4 DRIVE GEAR 39.60
148 10TMY DRIVE GEAR SHAFT 22.55
149 10PVU FIXING BOLT 1.65
150 10TPV LEVEL WINDING GUARD 11.55
151 10TQ1 PINION GEAR 17.05
152 10471 CLUTCH YOKE 1.65
153 10KSC CLUTCH CAM 2.75
154 105ZV CLUTCH CLAW 3.85
155 104CQ CLUTCH CLAW SPRING 1.65
156 10QGG CLUTCH PLATE 4.95
157 10BVK BODY A SEAT 3.85
158 1096Z CLUTCH BAR GUIDE (B) 1.65
159 10MWE CLUTCH BAR 9.35
160 101S6 FRAME B 123.75
161 101S4 FRAME B GUIDE ASSEMBLY 22.55
162 10BAG BODY B CAM LEVER 2.75
163 101UK BR KNOB 6.05
164 10195 BODY B 39.60
165 101S1 BODY B ASSEMBLY 84.15
BNKI 13BAV EXPLODED VIEW (ACCESSORIES) 1.65
BSS1 13B5A BRAKE SHOE S *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT 1.10
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13B8A INSTRUCTION MANUAL (ACCESSORY) 1.65
