  4. > [SHIMANO] Genuine Spare Parts for 16 Metanium MGL RIGHT Product code: 035301 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 Metanium MGL RIGHT Product code: 035301 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 Metanium MGL RIGHT Product code: 035301 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.100 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3548

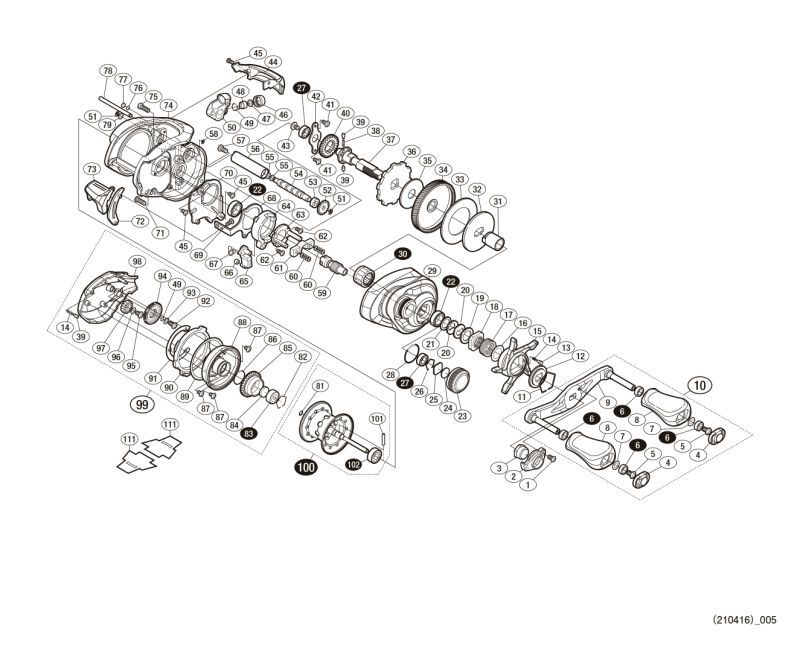

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH" and "101 / SPOOL CLUTCH PIN" and "102 / BALL BEARING" and "BSS1 / BRAKE SHOE S", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 103EE FIXING BOLT 2.75
2 10Q5S RETAINER 2.75
3 10FFF HANDLE FIXING NUT 6.05
4 10TNK HANDLE CAP 1.65
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10329 HANDLE KNOB 11.55
9 101GH HANDLE 28.05
10 10TR0 HANDLE ASSEMBLY 90.20
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Y STAR DRAG CLICK PLATE 1.65
13 10BT0 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 10TN0 STAR DRAG 17.05
16 10HHM SLIDER WASHER (9 X 13 X 0.2) 1.10
17 10A71 STAR DRAG SPRING 2.75
18 10A0B STAR DRAG FIXING NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
23 10TMK MECHANICAL BRAKE KNOB 9.35
24 10896 MECHANICAL BRAKE WASHER 1.10
25 1085F MECHANICAL BRAKE WASHER 1.10
26 10R0Q RETAINER 1.65
27 105BP BALL BEARING (5 X 9 X 3) 13.75
28 108WK O-RING SM14 1.65
29 101GE BODY A ASSEMBLY 73.15
30 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
31 10TMS INNER TUBE 6.05
32 10D3N STAR DRAG PLATE 2.75
33 1071U STAR DRAG WASHER 6.05
34 10CM1 DRIVE GEAR 39.60
35 10CJ1 STAR DRAG WASHER 3.85
36 10D6X STOPPER GEAR 3.85
37 10TMX DRIVE GEAR SHAFT 22.55
38 10JDX SPRING FOR WORM SHAFT GEAR 1.65
39 10HJG WORM SHAFT GEAR PINS 1.65
40 10TQ5 WORM SHAFT GEAR 2.75
41 10LVD FIXING BOLT 1.10
42 109T2 DRIVE GEAR SHAFT FIXING PLATE 2.75
43 10PVT FIXING BOLT 1.65
44 10TPU LEVEL WINDING GUARD 11.55
45 10MT2 FIXING BOLT 1.10
46 10FJD LEVEL WINDING GUIDE 3.85
47 10CFW ADJUSTMENT WASHER SET 1.10
48 10FFU WORM SHAFT PIN 1.65
49 108WQ O-RING 1.65
50 10NYJ LEVEL WINDING ASSEMBLY 34.10
51 105NC E TYPE STOPPER RING 2 1.10
52 10FNX WORM SHAFT GEAR 2.75
53 10PXY HANDLE GRIPPED BUSH (B) 1.65
54 10TPQ WORM SHAFT 9.35
55 10GFJ WORM WASHER 1.10
56 10NFW LEVEL WINDING PIPE 1.65
57 10LZD FIXING BOLT 1.65
58 105NB E TYPE STOPPER RING 1.5 1.10
59 10TPY PINION GEAR 17.05
60 104BU CLUTCH YOKE SPRING 1.10
61 1046S CLUTCH YOKE 1.65
62 10LVH CLUTCH CAM FIXING BOLT 1.10
63 10F42 CLUTCH CAM PUSH PLATE 3.85
64 10KSB CLUTCH CAM 2.75
65 105ZU CLUTCH CLAW 3.85
66 1048C CLUTCH CLAW BUSHING 1.65
67 104CN CLUTCH CLAW SPRING 1.65
68 10QGF CLUTCH PLATE 4.95
69 103C0 FIXING BOLT 1.10
70 10BVJ BODY A SEAT 3.85
71 103CG FIXING BOLT 1.10
72 1096Y CLUTCH BAR GUIDE (B) 1.65
73 10MWD CLUTCH BAR 9.35
74 101S5 FRAME 123.75
75 10M2E FIXING BOLT 1.65
76 108Q2 BODY FRAME CONTACT WASHER 1.10
77 108Q2 BODY FRAME CONTACT WASHER 1.10
78 10GUE LEVEL WINDING GUIDE 3.85
79 10GA0 WASHER 1.10
81 10EZ7 O-RING 1.10
82 10GEW BEARING RETAINING CLIP 1.10
83 105C0 BALL BEARING (3 X 10 X 4) 13.75
84 1057S SPOOL SHAFT CONTACT (B) 1.10
85 101S2 BRAKE PIPE GEAR 17.05
86 10LA8 O-RING 1.65
87 103N7 FIXING BOLT 1.10
88 101S3 FRAME B GUIDE ASSEMBLY 22.55
89 104MZ BODY B CAM LEVER ADJUSTMENT WASHER 1.65
90 10BAF BODY B CAM LEVER 2.75
91 108AW BODY B GUIDE ADJUSTMENT WASHER 1.65
92 103LE FIXING BOLT 1.10
93 10GFB CAM LEVER ADJUSTMENT WASHER 1.10
94 101UJ BR KNOB 6.05
95 103L7 FIXING BOLT 1.10
96 10G6W WASHER 1.10
97 10CLF INTERMEDIATE GEAR 1.65
98 10194 BODY B 39.60
99 101S0 BODY B ASSEMBLY 84.15
100 13GU5 SPOOL ASSEMBLY (WITH BEARINGS) 112.20
101 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
102 10TMG BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
111 10PBQ LEG PROTECTION SHEET 1.65
BNKI 13BAV EXPLODED VIEW (ACCESSORIES) 1.65
BSS1 13B5A BRAKE SHOE S *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT 1.10
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13B8A INSTRUCTION MANUAL (ACCESSORY) 1.65
