  4. > [SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION HG L Product code: 044808 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION HG L Product code: 044808 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION HG L Product code: 044808 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.91 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5343

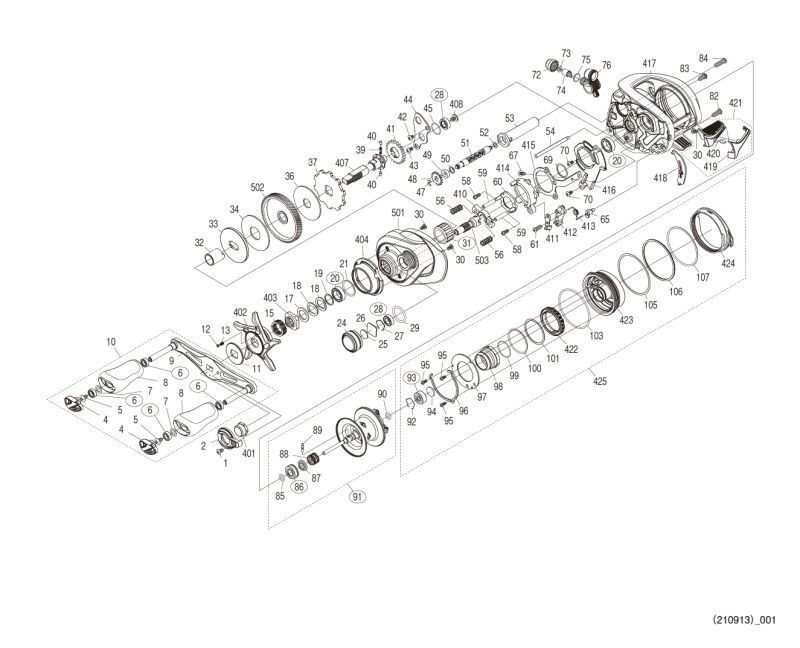

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH" and "89 / SPOOL CLUTCH PIN" and "86 / BALL BEARING" and "BSS2 / BRAKE SHOE (S)", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 103GX FIXING BOLT 1.10
2 10S80 RETAINER 3.85
4 13MBT HANDLE CAP 6.05
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10RMU HANDLE KNOB 11.55
9 13AWG HANDLE SHAFT ASSEMBLY 34.10
10 13JDQ HANDLE ASSEMBLY 90.20
11 101JC STAR DRAG CLICK PLATE 1.65
12 10B27 CLICK PIN 1.65
13 10988 CLICK SPRING 1.65
15 10A71 STAR DRAG SPRING 2.75
17 10J1N STAR DRAG SPACER 1.65
18 10D60 MAIN GEAR WASHER (C) 1.65
19 105PW STAR DRAG BEARING WASHER 1.10
20 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
21 1027V O-RING 1.65
24 10RVW MECHANICAL BRAKE KNOB 9.35
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 1057X EXTRACTION STOPPER 1.65
28 105BP BALL BEARING (5 X 9 X 3) 13.75
29 10LA9 O-RING 1.65
30 1055J FIXING BOLT 1.65
31 1005E ROLLER CLUTCH *Cannot be ordered 17.05
32 10BN3 ROLLER CLUTCH INNER TUBE 6.05
33 10RW3 STAR DRAG PLATE 6.05
34 10RWJ STAR DRAG WASHER 9.35
36 10CJ1 STAR DRAG WASHER 3.85
37 1021K STOPPER GEAR 6.05
39 10JDX SPRING FOR WORM SHAFT GEAR 1.65
40 10HJG WORM SHAFT GEAR PINS 1.65
41 10057 WORM SHAFT GEAR 2.75
42 10MPF FIXING BOLT 1.10
43 10MT2 FIXING BOLT 1.10
44 1005S DRIVE GEAR SHAFT FIXING PLATE 2.75
45 10SZ4 O-RING 1.65
47 105NC E TYPE RETAINING RING 2 1.10
48 10FNX WORM SHAFT GEAR 2.75
49 10PXY HANDLE GRIPPED BUSHING (B) 1.65
50 10GFG WASHER 1.10
51 10EET WORM SHAFT 2.75
52 100T8 WASHER 1.10
53 1005Z LEVEL WINDING PIPE 1.65
54 1006J LEVEL WINDING GUIDE 3.85
56 104BU CLUTCH YOKE SPRING 1.10
58 10LVH CLUTCH CAM FIXING BOLT 1.10
59 10RVR CLUTCH CAM PUSH COVER 1.65
60 10RWA CLUTCH CAM PUSH PLATE 8.25
61 10559 CLUTCH CAM FIXING BOLT 1.65
65 10RWD CLUTCH SPRING HOLDER 1.65
67 103C0 FIXING BOLT 1.10
69 10G8C WASHER 1.10
70 100BD FIXING BOLT 1.65
72 10FJB LEVEL WINDING GUIDE 1.65
73 13GGU CLUTCH SPRING HOLDER 2.20
74 10211 WORM SHAFT PIN 2.75
75 108WQ O-RING 1.65
76 100QL LEVEL WINDING ASSEMBLY 34.10
82 101GQ FIXING BOLT 1.65
83 10LZD FIXING BOLT 1.65
84 103LN FIXING BOLT 1.65
85 10TNF O-RING 1.65
86 1005D BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
87 10SWZ BUSH 1.65
88 10SJF BEARING PUSH SPRING 1.65
89 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
90 10EZ7 O-RING 1.10
91 13GP5 SPOOL ASSEMBLY (WITH BEARING) 121.00
92 10GEW BEARING STOPPER 1.10
93 10S37 BALL BEARING (3 X 10 X 4) 13.75
94 1057S SPOOL SHAFT CONTACT (B) 1.10
95 1026U FIXING BOLT 1.65
96 10TUC CAM LEVER RETAINING RING 1.65
97 10E6J BR DIAL FIXING PLATE 3.85
98 10T8Z BRAKE PIPE GEAR ASSEMBLY 17.05
99 10LA8 O-RING 1.65
100 10CG0 O-RING 19.5 1.65
101 10T9R WASHER 2.20
103 108WZ O-RING 3.85
105 10E72 WASHER 2.20
106 10SKT WASHER 3.85
107 1006P O-RING 1.65
401 101DW HANDLE FIXING NUT 6.05
402 10RW4 STAR DRAG 11.55
403 10A0C STAR DRAG FIXING NUT 2.75
404 13U90 BODY A NAMEPLATE 9.90
407 10RWL DRIVE GEAR SHAFT 22.55
408 10PVU FIXING BOLT 1.65
410 1046U CLUTCH YOKE 1.65
411 10RWF CLUTCH CLAW (B) 1.65
412 10RWC CLUTCH CLAW (A) 1.65
413 10N1V CLUTCH CLAW SPRING 1.65
414 10SKS CLUTCH CAM 2.75
415 10RW6 CLUTCH PLATE 4.95
416 10RVT BODY A SEAT 3.85
417 13GB4 FRAME ASSEMBLY 123.75
418 1007C CLUTCH BAR GUIDE (B) 1.65
419 13T7V CLUTCH BAR NAMEPLATE 6.05
420 10RW1 CLUTCH BAR 4.95
421 13H6P CLUTCH BAR ASSEMBLY 11.55
422 10055 BR KNOB 6.05
423 13FZM FRAME B GUIDE ASSEMBLY 45.10
424 13RNV BODY B CAM LEVER 9.35
425 13FTL BODY B ASSEMBLY 84.15
501 13U33 BODY A 90.20
502 13UYH DRIVE GEAR 24.75
503 1005X PINION GEAR 17.05
BNKI 13WV9 EXPLODED VIEW (ACCESSORIES) 1.65
BSS2 10RC4 BRAKE SHOES (S) *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT 1.10
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13PLC INSTRUCTION MANUAL (ACCESSORY) 1.65
