  4. > [SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION R Product code: 044778 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION R Product code: 044778 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION R Product code: 044778 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.91 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5343

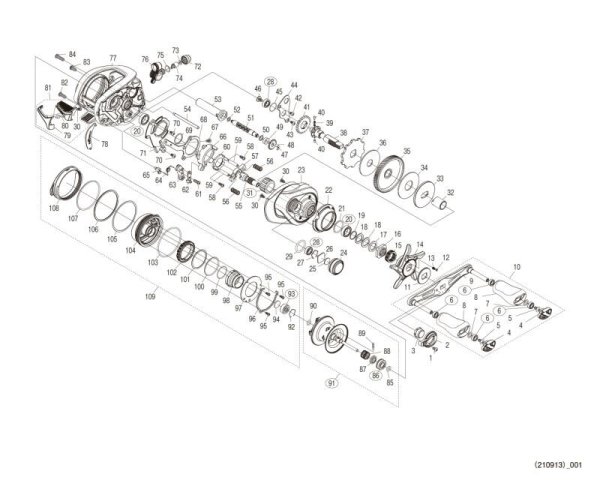

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH" and "89 / SPOOL CLUTCH PIN" and "86 / BALL BEARING" and "BSS2 / BRAKE SHOE (S)", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 103GX FIXING BOLT 1.10
2 10S80 RETAINER 3.85
3 10SSU HANDLE FIXING NUT 6.05
4 13MBT HANDLE CAP 6.05
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10RMU HANDLE KNOB 11.55
9 13AWG HANDLE SHAFT ASSEMBLY 34.10
10 13JDQ HANDLE ASSEMBLY 90.20
11 101JC STAR DRAG CLICK PLATE 1.65
12 10B27 CLICK PIN 1.65
13 10988 CLICK SPRING 1.65
14 10RP1 STAR DRAG 11.55
15 10A71 STAR DRAG SPRING 2.75
16 10A0B STAR DRAG FIXING NUT 2.75
17 10J1N STAR DRAG SPACER 1.65
18 10D60 MAIN GEAR WASHER (C) 1.65
19 105PW STAR DRAG BEARING WASHER 1.10
20 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
21 1027V O-RING 1.65
22 13U8Z BODY A NAMEPLATE 9.90
23 13U2Z MAIN UNIT A 90.20
24 10RVW MECHANICAL BRAKE KNOB 9.35
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 1057X STOPPER 1.65
28 105BP BALL BEARING (5 X 9 X 3) 13.75
29 10LA9 O-RING 1.65
30 1055J FIXING BOLT 1.65
31 1005E ROLLER CLUTCH *Cannot be ordered 17.05
32 10BN3 ROLLER CLUTCH INNER TUBE 6.05
33 10RW3 STAR DRAG PLATE 6.05
34 10RWJ STAR DRAG WASHER 9.35
35 13UYD DRIVE GEAR 24.75
36 10CJ1 STAR DRAG WASHER 3.85
37 1021K STOPPER GEAR 6.05
38 10RW0 DRIVE GEAR SHAFT 22.55
39 10JDX SPRING FOR WORM SHAFT GEAR 1.65
40 10HJG WORM SHAFT GEAR PINS 1.65
41 10057 WORM SHAFT GEAR 2.75
42 10MPF FIXING BOLT 1.10
43 10MT2 FIXING BOLT 1.10
44 1005S DRIVE GEAR SHAFT FIXING PLATE 2.75
45 10SZ4 O-RING 1.65
46 10PVT FIXING BOLT 1.65
47 105NC E TYPE RETAINING RING 2 1.10
48 10FNX WORM SHAFT GEAR 2.75
49 10PXY HANDLE GRIPPED BUSHING (B) 1.65
50 10GFG WASHER 1.10
51 10EET WORM SHAFT 2.75
52 100T8 WASHER 1.10
53 1005Z LEVEL WINDING PIPE 1.65
54 1006J LEVEL WINDING GUIDE 3.85
55 10068 PINION GEAR 17.05
56 104BU CLUTCH YOKE SPRING 1.10
57 1046T CLUTCH YOKE 1.65
58 10LVH CLUTCH CAM FIXING BOLT 1.10
59 10RVR CLUTCH CAM PUSH COVER 1.65
60 10RWA CLUTCH CAM PUSH PLATE 8.25
61 10559 CLUTCH CAM FIXING BOLT 1.65
62 10RWM CLUTCH CLAW (B) 1.65
63 10RVS CLUTCH CLAW (A) 1.65
64 10N1Z CLUTCH CLAW SPRING 1.10
65 10RWD CLUTCH SPRING HOLDER 1.65
66 10SX6 CLUTCH CAM 2.75
67 103C0 FIXING BOLT 1.10
68 10RW8 CLUTCH PLATE 4.95
69 10G8C CLUTCH WASHER 1.10
70 100BD FIXING BOLT 1.65
71 10RW7 BODY A SEAT 3.85
72 10FJB LEVEL WINDING GUIDE 1.65
73 13GGU CLUTCH PLATE WASHER 2.20
74 10211 WORM SHAFT PIN 2.75
75 108WQ O-RING 1.65
76 100QL LEVEL WINDING ASSEMBLY 34.10
77 13GB3 FRAME ASSEMBLY 123.75
78 1000Z CLUTCH BAR GUIDE (B) 1.65
79 13T7U CLUTCH BAR NAMEPLATE 6.05
80 10RLD CLUTCH BAR 4.95
81 13H6N CLUTCH BAR ASSEMBLY 11.55
82 101GQ FIXING BOLT 1.65
83 10LZD FIXING BOLT 1.65
84 103LN FIXING BOLT 1.65
85 10TNF O-RING 1.65
86 1005D BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
87 10SWZ BUSH 1.65
88 10SJF BEARING PUSH SPRING 1.65
89 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
90 10EZ7 O-RING 1.10
91 13GP5 SPOOL ASSEMBLY (WITH BEARING) 121.00
92 10GEW BEARING STOPPER 1.10
93 10S37 BALL BEARING (3 X 10 X 4) 13.75
94 1057S SPOOL SHAFT CONTACT (B) 1.10
95 1026U FIXING BOLT 1.65
96 10TUC CAM LEVER RETAINING RING 1.65
97 10E6J BR DIAL FIXING PLATE 3.85
98 10T8Z BRAKE PIPE GEAR ASSEMBLY 17.05
99 10LA8 O-RING 1.65
100 10CG0 O-RING 19.5 1.65
101 10T9R WASHER 2.20
102 1000Y BR KNOB 6.05
103 108WZ O-RING 3.85
104 13FZL FRAME B GUIDE ASSEMBLY 45.10
105 10E72 WASHER 2.20
106 10SKT O-RING 3.85
107 1006P O-RING 1.65
108 13RNU BODY B CAM LEVER 9.35
109 13FTK BODY B ASSEMBLY 84.15
BNKI 13WV9 EXPLODED VIEW (ACCESSORIES) 1.65
BSS2 10RC4 BRAKE SHOE (S) *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT 1.10
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13PLC INSTRUCTION MANUAL (ACCESSORY) 1.65
