[SHIMANO] Genuine Spare Parts for 18 ALDEBARAN MGL 30 HG Product code: 038791 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18 ALDEBARAN MGL 30 HG Product code: 038791 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.90 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4723

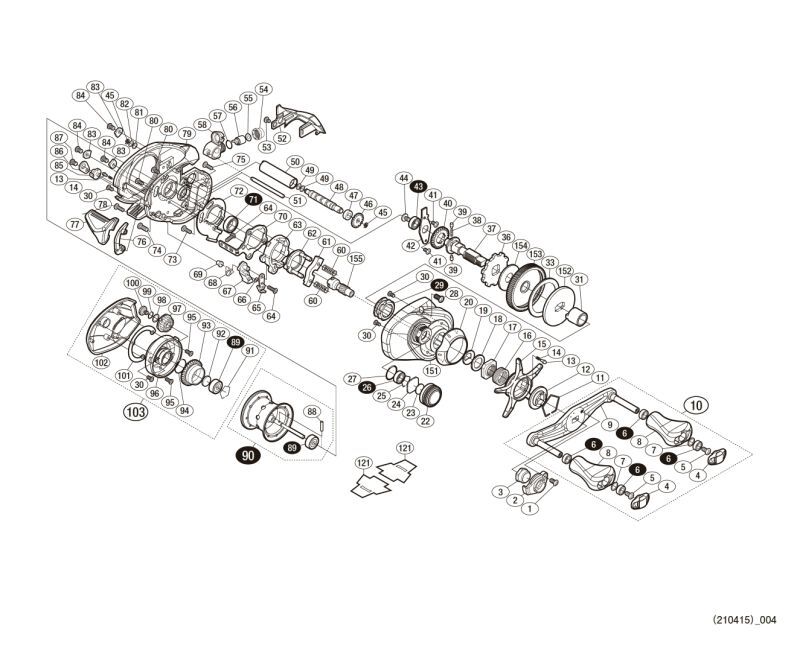

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "29 / ROLLER CLUTCH BEARING" and "88 / SPOOL CLUTCH PIN" and "89 / BALL BEARING" and "BSS1 / BRAKE SHOE S", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10R1Q FIXING BOLT 1.65
2 10Q5S RETAINER 2.75
3 10S35 HANDLE FIXING NUT 6.05
4 10TNJ HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10327 HANDLE KNOB 11.55
9 100Q7 HANDLE SHAFT ASSEMBLY 34.10
10 10036 HANDLE ASSEMBLY 112.20
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Z STAR DRAG CLICK PLATE 1.65
13 10B27 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 10S3C STAR DRAG 20.35
16 10A78 STAR DRAG SPRING 2.75
17 10A0B STAR DRAG FIXING NUT 2.75
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 10TMN BODY A NAMEPLATE 3.85
22 10S3A MECHANICAL BRAKE KNOB 11.55
23 10896 MECHANICAL BRAKE WASHER 1.10
24 1085F MECHANICAL BRAKE WASHER 1.10
25 1057X EXTRACTION STOPPER 1.65
26 105BP BALL BEARING (5 X 9 X 3) 13.75
27 10LA9 O-RING 1.65
28 10LZD FIXING BOLT 1.65
29 10F35 ROLLER CLUTCH BEARING *Cannot be ordered 17.05
30 1055J FIXING BOLT 1.65
31 10BN7 INNER TUBE A-RB 6.05
33 1071R STAR DRAG WASHER 9.35
36 10D72 STOPPER GEAR 3.85
37 105CE DRIVE GEAR SHAFT 22.55
38 10JDX SPRING FOR WORM SHAFT GEAR 1.65
39 10HJG PIN FOR WORM SHAFT GEAR 1.65
40 10J6W WORM SHAFT GEAR 3.85
41 10MT2 FIXING BOLT 1.10
42 109SZ DRIVE GEAR SHAFT FIXING PLATE 2.75
43 105BV BALL BEARING (5 X 9 X 3) 13.75
44 10PVT FIXING BOLT 1.65
45 105NC E TYPE RETAINING RING 2 1.10
46 10FNX WORM SHAFT GEAR 2.75
47 10PXY HANDLE GRIPPED BUSH (B) 1.65
48 10048 WORM SHAFT 9.35
49 10GFJ WASHER 1.10
50 10NFW LEVEL WINDING PIPE 1.65
51 10QSG LEVEL WINDING GUIDE 3.85
52 10S3D LEVEL WINDING GUARD 9.35
53 10MPF FIXING BOLT 1.10
54 10FJB LEVEL WINDING GUIDE 1.65
55 10CFW ADJUSTMENT WASHER SET 1.10
56 10FFU WORM SHAFT PIN 1.65
57 108WQ O-RING 1.65
58 100Q4 LEVEL WINDING ASSEMBLY 22.55
60 104BJ CLUTCH YOKE SPRING 1.10
61 1046Z CLUTCH YOKE 1.65
62 10F3Z CLUTCH CAM PUSH PLATE 8.25
63 10K0X CLUTCH CAM 2.75
64 10PVS FIXING BOLT 1.65
65 10458 CLUTCH CLAW 1.65
66 1059U CLUTCH WASHER 1.10
67 105ZP CLUTCH CLAW 2.75
68 104CL CLUTCH CLAW SPRING 1.65
69 10C44 CLUTCH SPRING HOLDER 1.65
70 10QLF CLUTCH PLATE 4.95
71 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
72 10BVU BODY A SEAT 3.85
73 1055A FIXING BOLT 1.65
74 103DF FIXING BOLT 1.10
75 10LPJ FIXING BOLT 1.65
76 10973 CLUTCH BAR GUIDE 1.65
77 10TQT CLUTCH BAR 9.35
78 1055C FIXING BOLT 1.65
79 100Q6 FRAME ASSEMBLY 123.75
80 10LVH CLUTCH CAM FIXING BOLT 1.10
81 10GN1 WASHER 1.10
82 10GA0 CLUTCH CAM FIXING BOLT 1.10
83 108AT MAIN FRAME B FIXING PLATE 9.35
84 103H0 FIXING BOLT 1.65
85 10BAU BODY B CAM LEVER 2.75
86 10BGQ BODY B CAM LEVER PUSH PLATE 1.65
87 10DN7 FIXING BOLT 1.65
88 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
89 10S37 BALL BEARING (3 X 10 X 4) *Cannot be ordered 13.75
90 13GFT SPOOL ASSEMBLY (WITH BEARING) 112.20
91 10GEW BEARING STOPPER 1.10
92 1057S SPOOL SHAFT CONTACT (B) 1.10
93 101S2 BRAKE PIPE GEAR 17.05
94 10LA8 O-RING 1.65
95 10559 FIXING BOLT 1.65
96 100QE FRAME B RECEIVING ASSEMBLY 22.55
97 10B20 BR KNOB 2.75
98 10191 WASHER 1.10
99 108WS O-RING 4 X 6 1.10
100 10A6K FIXING BOLT 6.05
101 108AZ ADJUSTMENT WASHER FOR FRAME B 1.65
102 10S3B BODY B 39.60
103 10TB3 BODY B ASSEMBLY 89.10
121 10PBQ LEG PROTECTION SHEET 1.65
151 13TRJ BODY A 45.10
152 10D3R STAR DRAG PLATE 6.05
153 10CNU DRIVE GEAR 22.55
154 10CJ4 STAR DRAG WASHER (A) 3.85
155 10CS7 PINION GEAR 17.05
BNKI 13WU3 EXPLODED VIEW (ACCESSORIES) 1.65
BSS1 13B5A BRAKE SHOE S *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT 1.10
OIL1 10LQ0 B-100 OIL (4.5 G) 3.85
TRST 13VT9 INSTRUCTION MANUAL (ACCESSORY) 1.65
