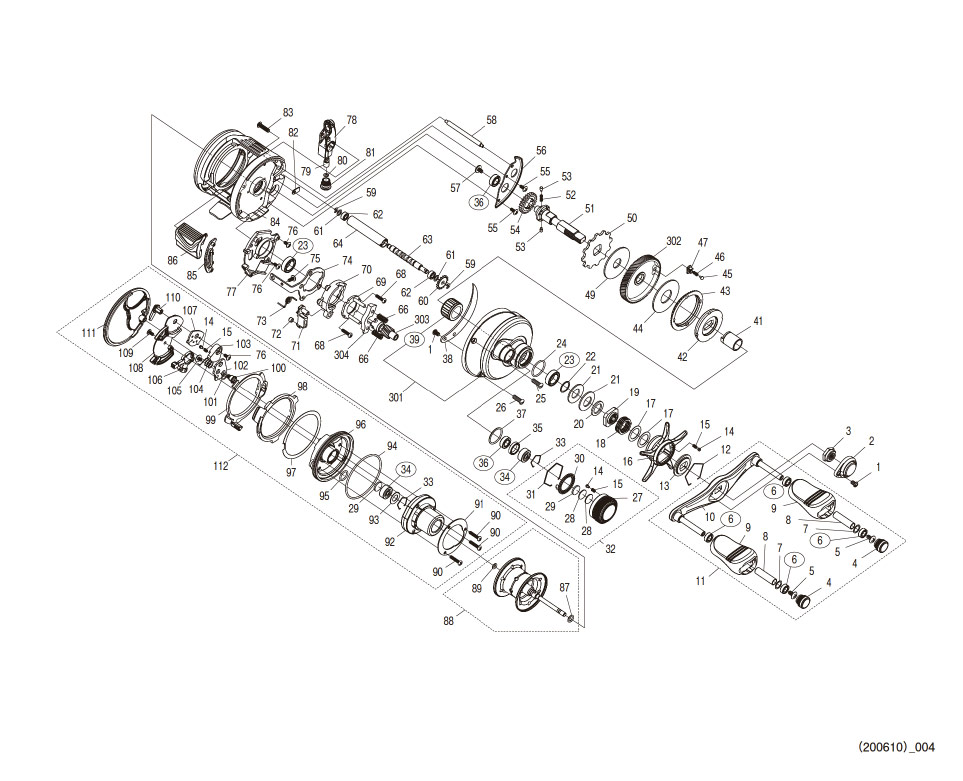

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WNF REEL BAG (ACCESSORY) 11.55
1 10CZ5 FIXING BOLT 2.75
2 100VN RETAINER 17.05
3 10FSM HANDLE FIXING NUT 2.75
4 13MAV HANDLE CAP 7.15
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 13FMF WASHER 2.20
8 109VL KNOB FIXING SHAFT PIPE 3.85
9 10325 HANDLE KNOB 11.55
10 13HVL HANDLE SHAFT ASSEMBLY 39.60
11 10RFV HANDLE ASSEMBLY 101.20
12 10KXV STAR DRAG CLICK PLATE 1.65
13 10J1Y STAR DRAG CLICK PLATE 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 100VT STAR DRAG 22.55
17 10QXM WASHER 1.10
18 10A71 STAR DRAG SPRING 2.75
19 10A0B STAR DRAG FIXING NUT 2.75
20 10J1N STAR DRAG SPACER 1.65
21 10D60 MAIN GEAR WASHER (C) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
24 1027V O-RING 1.65
25 10C3M MAIN UNIT A FIXING BOLT (C) 2.75
26 10C3N FIXING BOLT 2.75
27 100VU MECHANICAL BRAKE KNOB 22.55
28 10896 MECHANICAL BRAKE WASHER 1.10
29 1057S SPOOL SHAFT CONTACT (B) 1.10
30 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
31 10L6X MECHANICAL BRAKE KNOB SOUND STOP RING 2.75
32 13HCM MECHANICAL BRAKE KNOB ASSEMBLY 34.10
33 10GEW BEARING EXTRACTION STOP 1.10
34 10S37 BALL BEARING (3 X 10 X 4) 13.75
35 10EYR BEARING SPACER 2.75
36 105BR BALL BEARING (5X9X3) 13.75
37 108W8 O-RING S-16 1.65
38 13T7L BODY FIXING PLATE NAMEPLATE 9.35
39 1005E ROLLER CLUTCH 17.05
41 10TMS INNER TUBE 6.05
42 10D55 STAR DRAG PLATE 6.05
43 10JB0 DRAG CLICK SILRATCHET 2.75
44 10CKS STAR DRAG WASHER 6.05
45 10C0T DRAG CLICK PIN 2.75
46 10J8A DRAG CLICK SPRING 1.65
47 10J87 DRAG SPRING HOLDER 1.65
49 10CJ4 STAR DRAG WASHER (A) 3.85
50 10D70 STOPPER GEAR 3.85
51 1058Q DRIVE GEAR SHAFT 22.55
52 10JDX WORM SHAFT GEAR SPRING 1.65
53 10HJG PIN FOR WORM SHAFT GEAR 1.65
54 10J6W WORM SHAFT GEAR 3.85
55 10LVG FIXING BOLT 1.10
56 13VA2 DRIVE GEAR SHAFT FIXING PLATE 9.35
57 10PVT FIXING BOLT 1.65
58 13SHB LEVEL WINDING GUIDE 3.85
59 105NC E TYPE STOP RING 2 1.10
60 10FNW WORM SHAFT GEAR 2.75
61 13FMY WASHER 2.20
62 10PDA BALL BEARING (3X6X2.5) 13.75
63 104T9 WORM SHAFT 9.35
64 13B5M LEVEL WINDING PIPE 11.55
66 104BJ CLUTCH YOKE SPRING 1.10
68 10LUZ FIXING BOLT 1.10
69 10F3Y CLUTCH CAM PUSH PLATE 3.85
70 10K0X CLUTCH CAM 2.75
71 105ZU CLUTCH CLAW 3.85
72 1048C CLUTCH CLAW BUSHING 1.65
73 10N1Z CLUTCH CLAW SPRING 1.10
74 10QGM CLUTCH PLATE 4.95
75 103C0 FIXING BOLT 1.10
76 10MT4 FIXING BOLT 1.10
77 13B70 BODY A SEAT 3.85
78 13GGD LEVEL-WIND ASSEMBLY 39.60
79 10FFT WORM SHAFT PIN 3.85
80 13GGU SEAT WASHER 2.20
81 100VG LEVEL WINDING RECEPTACLE 9.35
82 10FTB WORM SHAFT EXTRACTION STOPPER 2.75
83 10A6J FIXING BOLT 3.85
84 13GAE FRAME ASSEMBLY 168.30
85 1096W CLUTCH LEVER HOLDER 1.65
86 10E9U CLUTCH LEVER ASSEMBLY 9.35
87 10TNF O-RING 1.65
88 13GGR SPOOL ASSEMBLY 112.20
89 10EZ7 O-RING 1.10
90 10LV3 FIXING BOLT 1.10
91 101M9 SUBSTRATE MOUNTING PLATE 2.75
92 100HK BODY B SUBSTRATE ASSEMBLY 112.20
93 10B94 BEARING SEAL 1.65
94 108WZ O-RING 3.85
95 108WQ O-RING 1.65
96 13RUF FRAME B RECEIVER 22.55
97 13GGT WASHER 2.20
98 13S0D FRAME B CAM 1.65
99 100VJ BODY B CAM LEVER 1.65
100 100VA BODY B SHAFT 6.05
101 13FM9 WASHER 2.20
102 100VS DAMPER BUSHING 3.85
103 13GGF MAGNET CAM ASSEMBLY 22.55
104 13RG5 DAMPER SPRING 1.65
105 13JX5 FIXING BOLT 1.65
106 13FZ0 DC DIAL ASSEMBLY 22.55
107 100VL CLICK SHILLING 1.65
108 13FZ1 BRAKE DIAL NAMEPLATE ASSEMBLY 9.35
109 1055D FIXING BOLT 1.65
110 1011Q BRAKE DIAL 22.55
111 13FLZ BODY B 45.10
112 13FT8 BODY B ASSEMBLY 223.30
301 13HPB BODY A SET 112.20
302 13B7C DRIVE GEAR 28.05
303 13SP8 PINION GEAR 22.55
304 1046Z CLUTCH YOKE 1.65
BNKI 13WUL EXPLODED VIEW (ACCESSORIES) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VTH INSTRUCTION MANUAL (ACCESSORY) 1.65
