  4. > [SHIMANO] Genuine Spare Parts for 19-20 CALCUTTA CONQUEST DC 101 Product code: 040848**Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 19-20 CALCUTTA CONQUEST DC 101 Product code: 040848**Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 19-20 CALCUTTA CONQUEST DC 101 Product code: 040848**Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.88 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4869

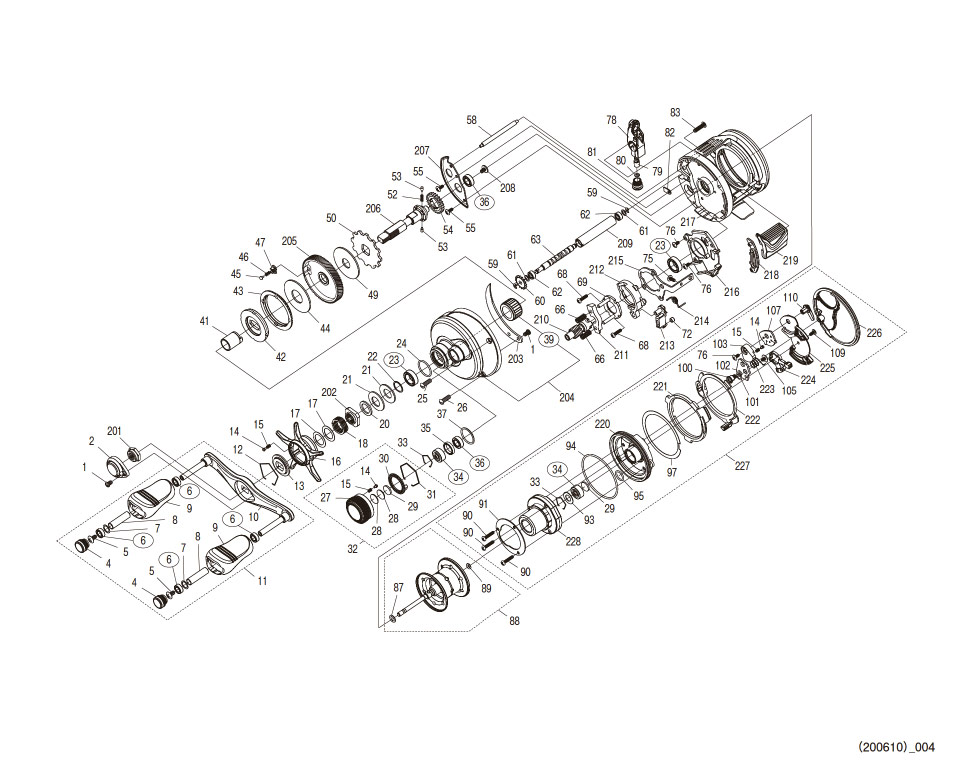

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WNF REEL BAG (ACCESSORY) 11.55
1 10CZ5 FIXING BOLT 2.75
2 100VN RETAINER 17.05
4 13MAV HANDLE CAP 7.15
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 13FMF WASHER 2.20
8 109VL KNOB FIXING SHAFT PIPE 3.85
9 10325 HANDLE KNOB 11.55
10 13HVL HANDLE SHAFT ASSEMBLY 39.60
11 10RFV HANDLE ASSEMBLY 101.20
12 10KXV STAR DRAG CLICK PLATE 1.65
13 10J1Y STAR DRAG CLICK PLATE 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 100VT STAR DRAG 22.55
17 10QXM WASHER 1.10
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 10D60 MAIN GEAR WASHER (C) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
24 1027V O-RING 1.65
25 10C3M MAIN UNIT A FIXING BOLT (C) 2.75
26 10C3N FIXING BOLT 2.75
27 100VU MECHANICAL BRAKE KNOB 22.55
28 10896 MECHANICAL BRAKE WASHER 1.10
29 1057S SPOOL SHAFT CONTACT (B) 1.10
30 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
31 10L6X MECHANICAL BRAKE KNOB SOUND STOP RING 2.75
32 13HCM MECHANICAL BRAKE KNOB ASSEMBLY 34.10
33 10GEW BEARING EXTRACTION STOP 1.10
34 10S37 BALL BEARING (3 X 10 X 4) 13.75
35 10EYR BEARING SPACER 2.75
36 105BR BALL BEARING (5X9X3) 13.75
37 108W8 O-RING S-16 1.65
39 1005E ROLLER CLUTCH 17.05
41 10TMS INNER TUBE 6.05
42 10D55 STAR DRAG PLATE 6.05
43 10JB0 DRAG CLICK SILRATCHET 2.75
44 10CKS STAR DRAG WASHER 6.05
45 10C0T DRAG CLICK PIN 2.75
46 10J8A DRAG CLICK SPRING 1.65
47 10J87 DRAG SPRING HOLDER 1.65
49 10CJ4 STAR DRAG WASHER (A) 3.85
50 10D70 STOPPER GEAR 3.85
52 10JDX WORM SHAFT GEAR SPRING 1.65
53 10HJG WORM SHAFT GEAR PIN 1.65
54 10J6W WORM SHAFT GEAR 3.85
55 10LVG FIXING BOLT 1.10
58 13SHB LEVEL WINDING GUIDE 3.85
59 105NC E TYPE RETAINING RING 2 1.10
60 10FNW WORM SHAFT GEAR 2.75
61 13FMY WASHER 2.20
62 10PDA BALL BEARING (3X6X2.5) 13.75
63 104T9 WORM SHAFT 9.35
66 104BJ CLUTCH YOKE SPRING 1.10
68 10LUZ FIXING BOLT 1.10
69 10F3Y CLUTCH CAM PUSH PLATE 3.85
72 1048C CLUTCH CLAW BUSHING 1.65
75 103C0 FIXING BOLT 1.10
76 10MT4 FIXING BOLT 1.10
78 13GGD LEVEL WINDING ASSEMBLY 39.60
79 10FFT WORM SHAFT PIN 3.85
80 13GGU WASHER 2.20
81 100VG LEVEL WINDING RECEPTACLE 9.35
82 10FTB WORM SHAFT EXTRACTION STOPPER 2.75
83 10A6J FIXING BOLT 3.85
87 10TNF O-RING 1.65
88 13GGR SPOOL ASSEMBLY 112.20
89 10EZ7 O-RING 1.10
90 10LV3 FIXING BOLT 1.10
91 101M9 SUBSTRATE MOUNTING PLATE 2.75
93 10B94 BEARING SEAL 1.65
94 108WZ O-RING 3.85
95 108WQ O-RING 1.65
97 13GGT WASHER 2.20
100 100VA BODY B SHAFT 6.05
101 13FM9 WASHER 2.20
102 100VS DAMPER BUSHING 3.85
103 13GGF MAGNET CAM ASSEMBLY 22.55
105 13JX5 FIXING BOLT 1.65
107 100VL CLICK SHILLING 1.65
109 1055D FIXING BOLT 1.65
110 1011Q BRAKE DIAL 22.55
201 10FSN HANDLE FIXING NUT 2.75
202 10A0C STAR DRAG FIXING NUT 2.75
203 13T7M MAIN UNIT FIXING PLATE NAMEPLATE 9.35
204 13HPA BODY A SET 112.20
205 13UX3 DRIVE GEAR 39.60
206 105CB DRIVE GEAR SHAFT 22.55
207 13VA5 DRIVE GEAR SHAFT FIXING PLATE 9.35
208 10PVU FIXING BOLT 1.65
209 13B5N LEVEL-WIND PIPE 11.55
210 13SP7 PINION GEAR 22.55
211 1046Y CLUTCH YOKE 1.65
212 10K0Y CLUTCH CAM 2.75
213 105ZV CLUTCH CLAW 3.85
214 10N1V CLUTCH CLAW SPRING 1.65
215 10QGN CLUTCH PLATE 4.95
216 13B71 BODY A SEAT 3.85
217 13GAF FRAME ASSEMBLY 168.30
218 10971 CLUTCH LEVER HOLDER 1.65
219 13H6V CLUTCH LEVER ASSEMBLY 9.35
220 13RUG FRAME B RECEIVER 22.55
221 13S0E FRAME B CLUTCH CAM 1.65
222 13RMT BODY B CAM LEVER 1.65
223 13RN3 DAMPER SPRING 1.65
224 13FZ2 DC DIAL ASSEMBLY 22.55
225 13FZ3 BRAKE DIAL NAMEPLATE ASSEMBLY 9.35
226 13FM0 BODY B 45.10
227 13FT9 BODY B ASSEMBLY 223.30
228 100HJ MAIN UNIT B CIRCUIT BOARD ASSEMBLY 112.20
BNKI 13WUL EXPLODED VIEW (ACCESSORIES) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VTH INSTRUCTION MANUAL (ACCESSORY) 1.65
