  3. > [SHIMANO] 23 CALCUTTA CONQUEST MD Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 23 CALCUTTA CONQUEST MD 300XG RIGHT Product code: 045928 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 23 CALCUTTA CONQUEST MD 300XG RIGHT Product code: 045928 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 23 CALCUTTA CONQUEST MD 300XG RIGHT Product code: 045928 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.107 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5942

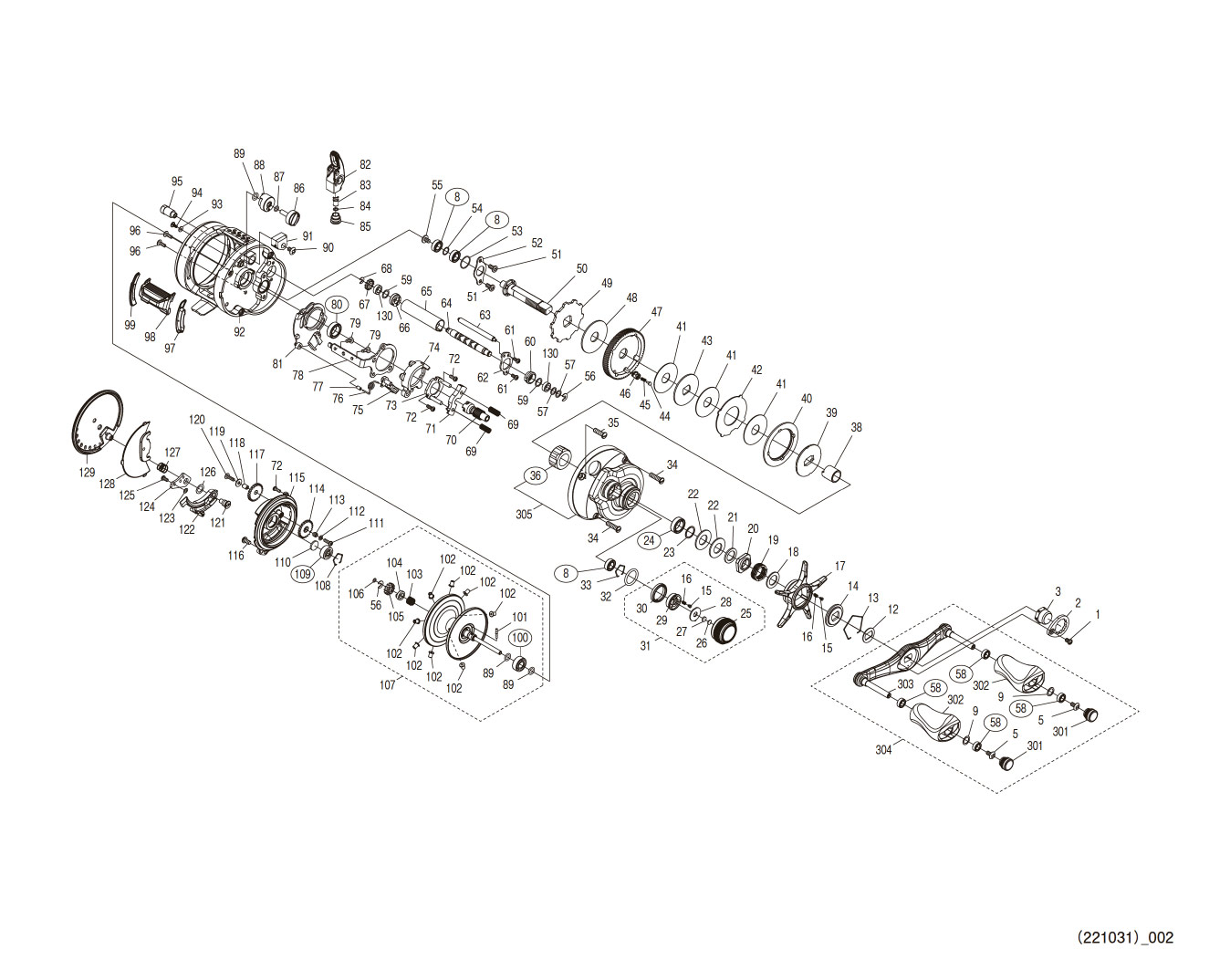

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "36 / ROLLER CLUTCH", "100 / BALL BEARING"and "101 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10CZ5 FIXING BOLT 2.75
2 10Q66 RETAINER 3.85
3 101AS HANDLE FIXING NUT 6.05
5 103E9 FIXING BOLT 1.10
8 105BP BALL BEARING (5 X 9 X 3) 13.75
9 104FH WASHER 2.20
12 107QQ HANDLE HOLDER WASHER 1.65
13 10KXV STAR DRAG CLICK PLATE EXTRACTION STOP 1.65
14 10J1Y STAR DRAG CLICK PLATE 1.65
15 10B27 CLICK PIN 1.65
16 10988 CLICK SPRING 1.65
17 13V35 STAR DRAG 28.05
18 10QXM WASHER 1.10
19 10A71 STAR DRAG SPRING 2.75
20 10A3V STAR DRAG FIXING NUT 3.85
21 10J1N STAR DRAG SPACER 1.65
22 1052E SALA SPRING (DB8H) 1.65
23 10J4J WASHER 1.10
24 105BS BALL BEARING (8X12X3.5) 13.75
25 13YKC MECHANICAL BRAKE KNOB 22.00
26 10897 SPOOL DRAG WASHER (B) 1.10
27 1085G SPOOL DRAG WASHER 1.10
28 10L2E MECHANICAL BRAKE KNOB CLICK PLATE 2.75
29 10BSX M BRAKE KNOB CLICK PIN HOLDER 2.75
30 10L70 SPOOL DRAG KNOB CLICK STOPPER WHEEL 2.75
31 13YK4 MECHANICAL BRAKE KNOB ASSEMBLY 38.50
32 109EB O-RING S11.2 1.65
33 1057X EXTRACTION STOPPER 1.65
34 13MBW FIXING BOLT 3.85
35 10A6X FIXING BOLT 3.85
36 10F33 ROLLER CLUTCH *Cannot be ordered 22.55
38 10BN7 INNER TUBE A-RB 6.05
39 10D54 STAR DRAG PLATE 3.85
40 10JAZ DRAG CLICK SILRATCHET 1.65
41 10CHW STAR DRAG WASHER 6.05
42 10KQL STAR DRAG WASHER 1.65
43 10LB6 STAR DRAG WASHER 1.65
44 10C0S DRAG CLICK PIN 2.75
45 10J89 DRAG CLICK SPRING 1.65
46 13VG9 DRAG SPRING HOLDER 1.65
47 13UY9 DRIVE GEAR 28.05
48 10CHZ STAR DRAG WASHER 2.75
49 10D6Y STOPPER GEAR 6.05
50 13YKD DRIVE GEAR SHAFT 16.50
51 1055F FIXING BOLT 1.65
52 13VAE DRIVE GEAR SHAFT FIXING PLATE 1.65
53 10SZ4 O-RING 1.65
54 13Y0Z WASHER 1.10
55 10PVT FIXING BOLT 1.65
56 105NK E TYPE RETAINING RING 2.5 1.10
57 10J16 WASHER 1.10
58 104VX BALL BEARING (4 X 7 X 2.5) 13.75
59 10G8F WASHER 1.10
60 10N9Q WORM SHAFT BEARING (A) 1.65
61 10LVF FIXING BOLT 1.10
62 13SCJ WORM SHAFT STOPPER 1.65
63 10GUG LEVEL WINDING GUIDE 3.85
64 10T05 WORM SHAFT 9.35
65 10NFU LEVEL WINDING PIPE 11.55
66 104SP WORM SHAFT RECEIVING BRACKET (B) 1.65
67 13S6P WORM SHAFT GEAR (C) 2.75
68 105NC E TYPE STOP RING 2 1.10
69 13T1T CLUTCH YOKE SPRING 1.10
70 13SQ6 PINION GEAR 22.55
71 13T1S CLUTCH YOKE 1.65
72 101CN FIXING BOLT 1.65
73 13UEP CLUTCH CAM PUSH PLATE 3.85
74 10SX6 CLUTCH CAM 2.75
75 105ZU CLUTCH CLAW 3.85
76 13YKE CLUTCH CLAW SPRING 1.65
77 108S5 CLUTCH SPRING SEAT 1.65
78 13TDK CLUTCH PLATE 4.95
79 103C0 FIXING BOLT 1.10
80 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
81 13UEN BODY A SEAT 1.10
82 13GH8 LEVEL-WIND ASSEMBLY 44.00
83 10FFT WORM SHAFT PIN 3.85
84 13GGU WASHER 2.20
85 10FJC LEVEL-WIND RECEIVER 6.05
86 13YKF BRAKE DIAL 19.80
87 10CFZ O-RING 1.65
88 13YKG BRAKE CAM 1.10
89 10TNF O-RING 1.65
90 103L4 FIXING BOLT 1.10
91 13YKH BRAKE MOUNTING BASE 1.10
92 13YK6 FRAME ASSEMBLY 181.50
93 13Y8G WASHER 1.10
94 13JWQ FIXING BOLT 1.65
95 13YK7 MAGNET HOLDER ASSEMBLY 22.00
96 10MPW FIXING BOLT 1.10
97 13TDM CLUTCH LEVER HOLDER (B) 1.65
98 13H6M CLUTCH LEVER ASSEMBLY 8.80
99 13TDL CLUTCH LEVER HOLDER (A) 1.65
100 105CA BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
101 10MD1 SPOOL CLUTCH PIN *Cannot be ordered 1.10
102 10CPE BRAKE COLLAR (GRAY) 1.65
103 10E20 SPOOL SHAFT SPRING 1.65
104 10MCY SPOOL SHAFT CAM 1.65
105 13SW5 WORM SHAFT GEAR (A) 2.75
106 10E7H O-RING 1.10
107 13YK8 SPOOL ASSEMBLY 90.20
108 10GEW BEARING STOPPER 1.10
109 105C1 BALL BEARING (3 X 10 X 4) 13.75
110 1057S SPOOL SHAFT CONTACT (B) 1.10
111 10LVM FIXING BOLT 1.10
112 10HVD WASHER 1.10
113 10ECQ WORM SHAFT GEAR (B) HOLDER 2.75
114 13RUX WORM SHAFT GEAR (B) 2.75
115 13YK9 FRAME B BEARING ASSEMBLY 38.50
116 10LSL FIXING BOLT 1.10
117 13S6N WORM SHAFT GEAR (D) 2.75
118 10TUH WORM SHAFT GEAR (D) FIXING BRACKET 2.75
119 13PKE WORM GEAR ADJUSTMENT WASHER 1.10
120 10TTU FIXING BOLT 1.10
121 10GM6 BODY B SHAFT 6.05
122 13RNS BODY B CAM LEVER 2.75
123 10280 WASHER 1.10
124 10AYX DAMPER BUSHING 2.75
125 10U0S FIXING BOLT 1.10
126 13YKJ DAMPER WASHER 1.10
127 10KNA DAMPER SPRING 1.65
128 13YKK BODY B SEAL 1.65
129 13YKL BODY B 55.00
130 10PXY HANDLE GRIP BUSH (B) 1.65
301 10FMG HANDLE CAP 3.85
302 10SCX HANDLE KNOB 11.00
303 13YKV HANDLE SHAFT ASSEMBLY 66.00
304 13YKW HANDLE ASSEMBLY 110.00
305 13YKX MAIN BODY A SET 143.00
*F01 140Z7 REEL BAG (ACCESSORY) 11.00
BNKI 140Z8 EXPLODED VIEW (ACCESSORY) 1.10
TRST 140Z6 INSTRUCTION MANUAL (ACCESSORY) 1.10
