[SHIMANO] Genuine Spare Parts for 15 TWIN POWER SW 4000XG Product Code: 033154 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

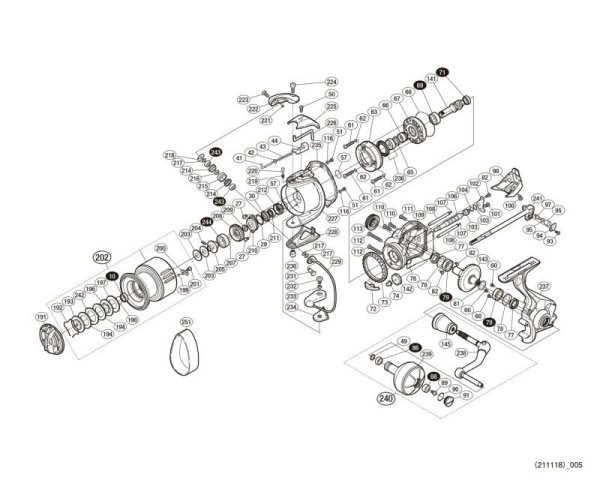

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WJC	REEL BAG	11.55
10	104JT	BALL BEARING (6 X 10 X 3)	13.75
27	10LZ1	FIXING BOLT	1.10
29	10G8C	WASHER	1.10
30	107F2	ROTATING FRAME BEARING SEAL	2.75
41	105LU	ARM SPRING GUIDE (A)	1.65
42	1064R	ARM SPRING GUIDE (A) COLLAR	1.65
43	105FX	ARM CAM SPRING	1.65
44	1077C	ARM CAM SPRING SEAT	2.75
49	10HV3	WASHER	1.10
50	10PS0	FIXING BOLT	1.65
51	10PRY	FIXING BOLT	1.10
57	108WA	O-RING	1.65
60	10MT4	FIXING BOLT	1.10
61	103LY	ROLLER CLUTCH FIXING BOLT	1.10
62	10LAD	O-RING	1.10
63	10MHC	ROLLER CLUTCH SEAL COVER	2.75
65	10J2G	ROTOR WASHER	1.65
66	10667	ROLLER CLUTCH INNER	3.85
67	10QPK	ROLLER CLUTCH ASSEMBLY	11.55
68	108WZ	O-RING	3.85
69	104Q4	BALL BEARING (7 X 14 X 5)	13.75
71	104JS	BALL BEARING (6 X 10 X 3)	13.75
72	107DX	BAIL TRIP STRIKE	1.65
73	104FW	FRICTION RING	3.85
74	106E8	CROSS GEAR BUSH (FRONT)	1.65
76	10CDD	BODY SEAL	7.15
77	10CD4	BEARING SEAL	3.85
78	10BGE	WASHER	1.65
79	104PT	BALL BEARING (8 X 14 X 4)	13.75
81	10DKJ	WASHER	2.20
82	103C0	FIXING BOLT	1.10
86	105BP	BALL BEARING (5 X 9 X 3)	13.75
88	10KX2	BALL BEARING (4 X 9 X 4)	13.75
89	103E9	FIXING BOLT	1.10
90	10LAB	O-RING	1.10
91	10B2B	HANDLE CAP	6.05
93	10MGG	FIXING BOLT	1.10
94	10H7Q	CROSS GEAR PIN PUSH PLATE	3.85
95	10JVB	CROSS GEAR PIN COLLAR	2.75
96	1059T	WASHER	1.10
97	106V4	CROSS GEAR PIN	3.85
99	10NL6	BODY GUARD	11.55
100	10A6R	FIXING BOLT	1.65
101	103KY	FIXING BOLT	1.10
102	10ATF	WORM SHAFT COVER	1.65
103	10GFF	WASHER	1.10
104	1090B	O-RING	1.10
105	106M5	WORM SHAFT BUSH (REAR)	2.75
106	1068A	WORM SHAFT	11.55
107	10908	O-RING	1.65
108	1035N	SLIDER GUIDE	2.75
109	10BA4	BODY	22.55
110	10PSB	FIXING BOLT	1.65
111	10PSC	FIXING BOLT	1.65
112	10M6H	FIXING BOLT	1.65
113	10N4J	HANDLE SCREW CAP	11.55
116	10HVD	WASHER	1.10
141	10C28	PINION GEAR	17.05
142	10H6M	GEAR FOR CROSS GEAR	6.05
143	10ELN	DRIVE GEAR ASSEMBLY	39.60
145	10NHL	HANDLE SHAFT FLANGE	22.55
191	10H00	DRAG KNOB ASSEMBLY	17.05
192	10B8J	STOPPER SPRING	1.65
193	10QBY	OVAL WASHER	9.35
194	102ZP	DRAG WASHER (A)	1.65
196	10BBQ	OVAL WASHER	2.75
197	10C1D	DRAG WASHER	1.65
198	10GEW	BEARING PULL-OUT STOPPER	1.10
199	10BQE	SPOOL PIN SPRING	1.65
200	10388	SPOOL PIN	1.65
201	10A6F	FIXING BOLT	1.65
202	1085Y	SPOOL ASSEMBLY	92.40
203	10BSJ	SPOOL WASHER SET	1.10
204	10PN2	SET SCREW	1.65
205	10LTS	SPOOL SHAFT BEARING GUIDE	6.05
207	107V2	RATCHET SPRING	1.65
208	107PS	DRAG CLICK RATCHET	2.75
209	103NX	SPOOL GUIDE	1.65
210	1076P	RETAINER	2.75
211	103SB	ROTOR BEARING COLLAR ASSEMBLY	17.05
212	1080X	ROTOR NUT	9.35
213	104VZ	BALL BEARING (4 X 7 X 2.5)	13.75
214	107RJ	ARM ROLLER BUSHING	1.10
215	10KM6	ARM ROLLER	6.05
216	10GAH	ROLLER BEARING COLLAR	2.75
217	10G9X	WASHER	1.10
218	1079U	ARM ROLLER GUIDE	1.65
219	10CH0	BAIL TRIP LEVER CLICK SPRING	1.65
220	10CHA	BAIL TRIP LEVER CLICK PIN	1.65
221	107X8	ARM ROLLER LUBRICATION HOLE CAP	1.65
222	1075L	ARM CAM	22.55
223	10PS3	FIXING BOLT	1.10
224	109GS	FIXING BOLT	2.75
225	108R2	ARM CAM SPRING COVER	11.55
226	108GJ	BAIL TRIP LEVER	2.75
227	10FCZ	ROTOR	67.65
228	10M9R	BAIL MOUNTING BRACKET COVER	17.05
229	10PP4	BAIL ASSEMBLY	39.60
230	10K4Q	FIXING SHAFT FOR MOUNTING CAM	3.85
231	10L01	ARM FIXING SHAFT	2.75
232	109GT	FIXING BOLT	3.85
233	107LA	FIXING BOLT COLLAR	2.75
234	10D0V	BAIL MOUNTING CAM SHEET	2.75
235	106ZU	ROTATING FRAME GUARD	11.55
236	10QRP	ROLLER CLUTCH SEAL ASSEMBLY	11.55
237	104HB	LID WITH LEGS	78.65
238	103DT	HANDLE	34.10
239	10424	HANDLE KNOB	56.10
240	10NB7	HANDLE ASSEMBLY	112.20
241	102J2	MAIN SHAFT ASSEMBLY	22.55
242	10BE6	EAR WASHER	6.05
243	104VZ	BALL BEARING (4 X 7 X 2.5)	13.75
244	10KXC	BALL BEARING (8 X 16 X 5)	9.35
251	109UR	THREAD STOPPER BELT (ACCESSORY)	6.05
BNKI	13R0B	EXPLODED VIEW (ACCESSORY)	1.65
ITOS	13QPZ	STOPPER SEAL	1.65
MH01	13NE5	NAMEPLATE ON THE BACK OF THE FOOT	2.75
TRST	13PMG	INSTRUCTION MANUAL (ACCESSORY)	1.65
