[SHIMANO] Genuine Spare Parts for 21 TWIN POWER XD C3000XG Product Code: 042910 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No111 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/4998

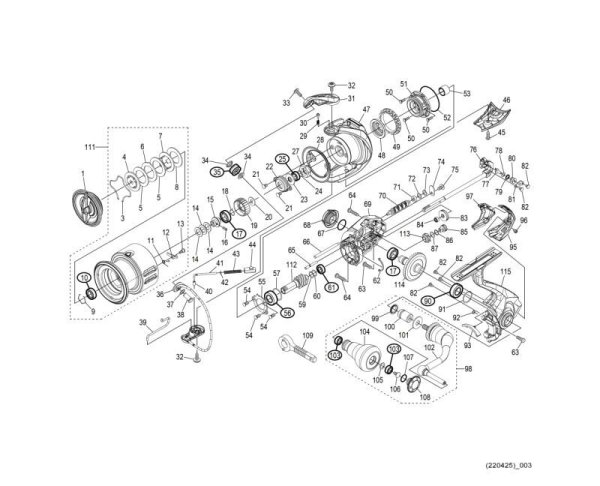

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13B3S | REEL BAG (ACCESSORY) | 13.75 |
1 | 10E8C | DRAG KNOB SET | 28.05 |
3 | 10T58 | STOPPER SPRING | 1.10 |
4 | 10TJV | OVAL WASHER | 9.35 |
5 | 10E66 | DRAG WASHER (A) | 6.05 |
6 | 102XW | EAR WASHERS | 1.65 |
7 | 10BBQ | OVAL WASHER | 2.75 |
8 | 10E6E | DRAG WASHER (B) | 6.05 |
9 | 10GEW | BEARING PULL-OUT STOPPER | 1.10 |
10 | 104JT | BALL BEARING (6×10×3) | 13.75 |
11 | 10BQE | SPOOL PIN SPRING | 1.65 |
12 | 10TJX | SPOOL PIN | 1.65 |
13 | 10A6F | FIXING BOLT | 1.65 |
14 | 10DHG | SPOOL WASHER | 2.20 |
15 | 10DKF | MAIN SHAFT BEARING GUIDE | 6.05 |
16 | 10PN2 | SET SCREW | 1.65 |
17 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
18 | 107V2 | RATCHET SPRING | 1.65 |
19 | 10SYS | DRAG SOUNDING RATCHET | 2.75 |
20 | 103PE | SPOOL RETAINER | 1.65 |
21 | 10T1G | RETAINER FIXING BOLT | 1.10 |
22 | 1076N | RETAINER | 2.75 |
23 | 107L2 | ROTOR BEARING SEAL | 3.85 |
24 | 1026J | WASHER | 1.10 |
25 | 10TD2 | ROTOR RETAINER COLLAR ASSEMBLY (WITH BEARING) | 17.05 |
27 | 101CY | ROTOR NUT | 9.35 |
28 | 100Z5 | ROTOR FLANGE | 6.05 |
29 | 10CGZ | CLICK SPRING | 1.65 |
30 | 106UX | CLICK PIN | 1.65 |
31 | 10E8H | ARM CAM | 6.05 |
32 | 10SN9 | FIXING BOLT | 1.65 |
33 | 10TLJ | FIXING BOLT | 2.75 |
34 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
35 | 101KE | LINE ROLLER (WITH BEARING) ASSEMBLY | 34.10 |
36 | 10T11 | BAIL ASSEMBLY | 45.10 |
37 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
38 | 10TPC | ARM FIXING SHAFT | 6.05 |
39 | 101VW | INNER GERI LEVER | 2.75 |
40 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
41 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
42 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
43 | 10R2P | ARM CAM SPRING | 1.65 |
44 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
45 | 10DT7 | FIXING BOLT | 1.65 |
46 | 100Z7 | BAIL MOUNTING COVER | 9.35 |
47 | 10T0W | ROTOR ASSEMBLY | 45.10 |
48 | 101D5 | ROTOR COLLAR | 9.35 |
49 | 10DK7 | FRICTION RING | 3.85 |
50 | 101LH | FIXING BOLT | 1.10 |
51 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
52 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
53 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
54 | 10TGX | FIXING BOLT | 1.10 |
55 | 10DJZ | BEARING PUSH PLATE | 2.75 |
56 | 10R77 | BALL BEARING (7×13×4) | 7.15 |
57 | 10RYR | WASHER | 1.10 |
59 | 10DJ1 | WASHER | 1.65 |
60 | 10HV4 | ADJUSTMENT WASHER | 1.10 |
61 | 10RKR | BALL BEARING (5×8×2.5) | 7.15 |
62 | 10DKA | LID FLANGE SEAL | 2.75 |
63 | 10M2A | FIXING BOLT | 1.10 |
64 | 100YN | FIXING BOLT | 1.65 |
65 | 10CLA | INTERMEDIATE GEAR SHAFT | 3.85 |
66 | 10DVX | SLIDER GUIDE (A) | 1.65 |
67 | 108WH | O-RING | 1.65 |
68 | 10RSK | HANDLE SCREW CAP | 3.85 |
69 | 10RDF | BODY | 22.55 |
70 | 101CR | WORM SHAFT | 11.55 |
71 | 1009C | WORM SHAFT BUSHING | 1.65 |
72 | 100XZ | WASHER | 2.20 |
73 | 10TK0 | WASHER | 1.65 |
74 | 10ATC | WORM SHAFT COVER | 1.65 |
75 | 10QG5 | FIXING BOLT | 1.10 |
76 | 10RAM | MAIN SHAFT ASSEMBLY | 30.80 |
77 | 106VL | WORM SHAFT PIN | 4.95 |
78 | 100CW | WASHER | 2.20 |
79 | 108W9 | O-RING (3X5) | 1.65 |
80 | 101BY | WORM SHAFT PIN COLLAR | 2.75 |
81 | 10HAG | WORM SHAFT PIN PUSH PLATE | 1.65 |
82 | 1055G | FIXING BOLT | 1.65 |
83 | 10DK0 | WORM SHAFT GEAR | 9.35 |
84 | 106M8 | WORM SHAFT BUSH (FRONT) | 2.75 |
85 | 10DK2 | INTERMEDIATE GEAR (S) | 8.25 |
86 | 10TJT | WASHER | 1.65 |
87 | 10G6C | WASHER | 1.10 |
90 | 104JD | BALL BEARING (7×13×4) | 13.75 |
91 | 101AY | WASHER | 2.20 |
92 | 10GA7 | BALL BEARING (S) | 1.10 |
93 | 10DJK | INNER GERI HITARI | 1.65 |
95 | 100ZB | BODY GUARD | 11.55 |
96 | 10EF0 | FIXING BOLT | 1.65 |
97 | 10RDB | BODY COVER | 6.05 |
98 | 10EDJ | HANDLE ASSEMBLY | 78.65 |
99 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
100 | 10070 | HANDLE SHAFT FLANGE (B) | 9.35 |
101 | 10FJ6 | HANDLE WASHER | 1.65 |
102 | 10T0Y | HANDLE SHANK ASSEMBLY | 45.10 |
103 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
104 | 101AR | HANDLE KNOB | 22.55 |
105 | 104FH | HANDLE WASHER | 2.20 |
106 | 103E9 | FIXING BOLT | 1.10 |
107 | 10LAA | O-RING | 1.10 |
108 | 10BFJ | HANDLE CAP | 6.05 |
109 | 10NC0 | REEL WRENCH (ACCESSORY) | 1.65 |
111 | 10SM8 | SPOOL ASSEMBLY | 112.20 |
112 | 10TBQ | PINION GEAR | 20.35 |
113 | 10DKY | INTERMEDIATE GEAR (L) | 9.35 |
114 | 100KN | DRIVE GEAR | 28.05 |
115 | 10294 | COVER ASSEMBLY | 67.65 |
BNKI | 13QZ8 | EXPLODED VIEW (ACCESSORIES) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
MH01 | 13N6Z | NAMEPLATE ON THE BACK OF THE FOOT | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
