[SHIMANO] Genuine Spare Parts for 16 ALDEBARAN BFS L Product code: 037886 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 ALDEBARAN BFS L Product code: 037886 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.91 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/2920

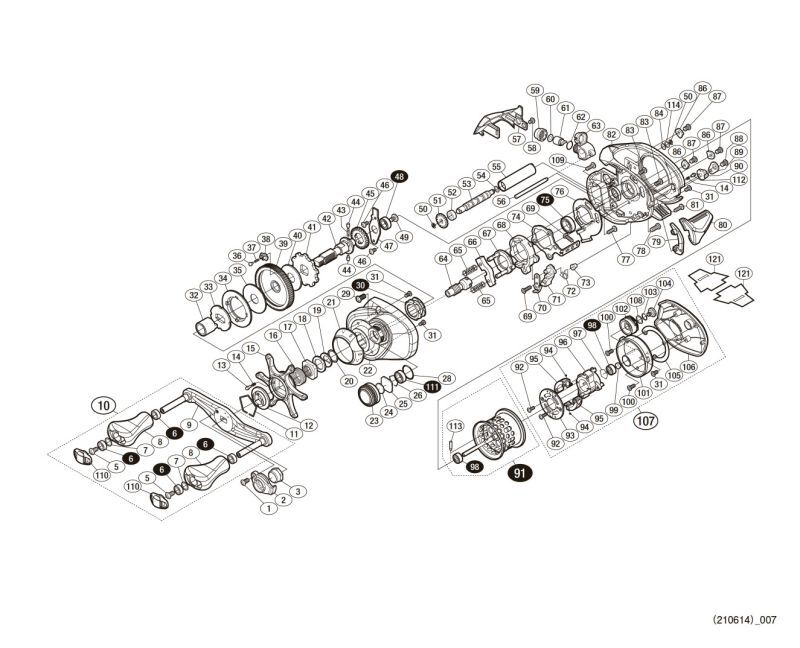

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH BEARING" and "113 / SPOOL CLUTCH PIN" and "98 / BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10R1Q FIXING BOLT 1.65
2 10Q5S RETAINER 2.75
3 10TPG HANDLE FIXING NUT 6.05
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10327 HANDLE KNOB 11.55
9 13HUT HANDLE 34.10
10 13AWH HANDLE ASSEMBLY 112.20
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Z STAR DRAG CLICK PLATE 1.65
13 10BT0 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 13B7H STAR DRAG 20.35
16 10A78 STAR DRAG SPRING 2.75
17 10A0C STAR DRAG FIXING NUT 2.75
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 10GHN MAIN GEAR WASHER (C) 1.65
21 10TMM BODY A NAMEPLATE 3.85
22 13TRD MAIN BODY A 45.10
23 13B6M MECHANICAL BRAKE KNOB 11.55
24 10896 MECHANICAL BRAKE WASHER 1.10
25 1085F MECHANICAL BRAKE WASHER 1.10
26 1057X STOPPER 1.65
28 10LA9 O-RING 1.65
29 10LZD FIXING BOLT 1.65
30 10F35 ROLLER CLUTCH BEARING *Cannot be ordered 17.05
31 1055J FIXING BOLT 1.65
32 10BN7 INNER TUBE A-RB 6.05
33 10D55 STAR DRAG PLATE 6.05
34 10JB0 DRAG CLICK RATCHET 2.75
35 10CKS STAR DRAG WASHER 6.05
36 10C0T DRAG CLICK PIN 2.75
37 10J8A DRAG SPRING HOLDER 1.65
38 10J87 DRAG SPRING HOLDER 1.65
39 13URQ DRIVE GEAR 22.55
40 10CJC STAR DRAG WASHER (A) 2.75
41 10D72 STOPPER GEAR 3.85
42 105CF DRIVE GEAR SHAFT 22.55
43 10JDX SPRING FOR WORM SHAFT GEAR 1.65
44 10HJG PIN FOR WORM SHAFT GEAR 1.65
45 10J6W WORM SHAFT GEAR 3.85
46 10MT2 FIXING BOLT 1.10
47 109SZ DRIVE GEAR SHAFT FIXING PLATE 2.75
48 105BV BALL BEARING (5 X 9 X 3) 13.75
49 10PVU FIXING BOLT 1.65
50 105NC E TYPE RETAINING RING 2 1.10
51 10FNX WORM SHAFT GEAR 2.75
52 10PXY HANDLE GRIPPED BUSH (B) 1.65
53 104ZG WORM SHAFT 9.35
54 10GHF WASHER 1.10
55 10NFW LEVEL WINDING PIPE 1.65
56 10QSG LEVEL WINDING GUIDE 3.85
57 13B5R LEVEL WINDING GUARD 9.35
58 10DND FIXING BOLT 1.65
59 10FJB LEVEL WINDING GUIDE 1.65
60 10CFW ADJUSTMENT WASHER SET 1.10
61 10FFU WORM SHAFT PIN 1.65
62 108WQ O-RING 1.65
63 10NYH LEVEL WINDING ASSEMBLY 22.55
64 13SN5 PINION GEAR 17.05
65 104BJ CLUTCH YOKE SPRING 1.10
66 10470 CLUTCH YOKE 1.65
67 10F40 CLUTCH CAM PUSH PLATE 8.25
68 10K0Y CLUTCH CAM 2.75
69 10PVS FIXING BOLT 1.65
70 10459 CLUTCH CLAW 1.65
71 105ZQ CLUTCH CLAW 2.75
72 104CM CLUTCH CLAW SPRING 1.65
73 10C44 CLUTCH SPRING HOLDER 1.65
74 10QLG CLUTCH PLATE 4.95
75 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
76 10BVV BODY A SEAT 3.85
77 1055A FIXING BOLT 1.65
78 103DF FIXING BOLT 1.10
79 10974 CLUTCH BAR GUIDE 1.65
80 10TQU CLUTCH BAR 9.35
81 1055C FIXING BOLT 1.65
82 13FXQ FRAME 123.75
83 10LVH CLUTCH CAM FIXING BOLT 1.10
84 10GN1 CLUTCH CAM FIXING BOLT 1.10
86 108AT MAIN FRAME B FIXING PLATE 9.35
87 103H0 FIXING BOLT 1.65
88 10DN7 FIXING BOLT 1.65
89 10BGQ BODY B CAM LEVER PUSH PLATE 1.65
90 10BAV BODY B CAM LEVER 2.75
91 13GNL SPOOL ASSEMBLY (WITH BEARINGS) 134.75
92 10TNZ FIXING BOLT 1.65
93 13B5H BRAKE FIXING PLATE 3.85
94 10TM9 BRAKE COIL SPRING 1.65
95 10DPG MAGNET HOLDER ASSEMBLY 11.55
96 13B69 BRAKE MOUNTING STAND 2.75
97 10GEV BEARING RETAINING CLAMP 1.10
98 10KDE BALL BEARING (3 X 7 X 3) *Cannot be ordered 13.75
99 1085H MECHANICAL BRAKE WASHER 1.10
100 10559 FIXING BOLT 1.65
101 13B54 FRAME B GUIDE 17.05
102 1019A BR KNOB 2.75
103 108WS O-RING 4 X 6 1.10
104 10A6K FIXING BOLT 6.05
105 108AZ ADJUSTMENT WASHER FOR FRAME B 1.65
106 13B4A BODY B 39.60
107 13FLD BODY B ASSEMBLY 89.10
108 13B0V WASHER 1.10
109 10LPJ FIXING BOLT 1.65
110 10TNJ HANDLE CAP 3.85
111 105BP BALL BEARING (5 X 9 X 3) 13.75
112 10B27 CLICK PIN 1.65
113 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
114 10GA0 WASHER 1.10
121 10PBQ LEG PROTECTION SHEET 1.65
BNKI 13WTY EXPLODED VIEW (ACCESSORIES) 1.65
MGNT 13B5D MAGNET 2.75
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
OIL3 10TR6 BFS OIL 3.85
TRST 13B7X INSTRUCTION MANUAL (ACCESSORY) 1.65
