  4. > [SHIMANO] Genuine Spare Parts for 17 CHRONARCH MGL 151 Product code: 037244 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 CHRONARCH MGL 151 Product code: 037244 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 CHRONARCH MGL 151 Product code: 037244 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.80 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3806

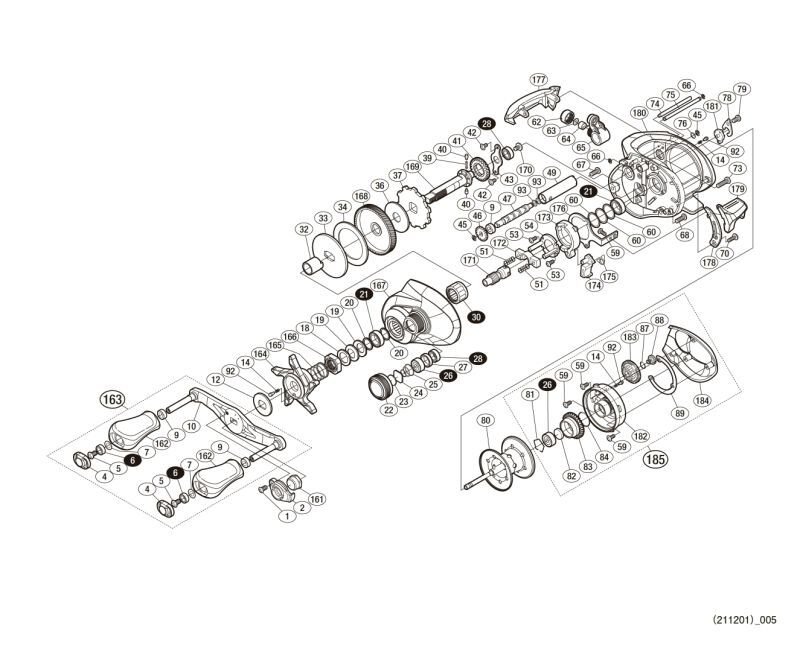

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "BSM1 / BRAKE SHOES", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10R1Q FIXING BOLT 1.65
2 10Q5S RETAINER 2.75
4 10FMM HANDLE CAP 1.65
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
9 10PXY HANDLE GRIPPED BUSHING (B) 1.65
10 10QW3 HANDLE 28.05
12 10J22 STAR DRAG CLICK PLATE 1.65
14 10988 CLICK SPRING 1.65
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 105PW STAR DRAG BEARING WASHER 1.10
21 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
22 10223 MECHANICAL BRAKE KNOB 9.35
23 10896 MECHANICAL BRAKE WASHER 1.10
24 1085F MECHANICAL BRAKE WASHER 1.10
25 10BR8 MECHANICAL BRAKE LOOSENING STOP SPRING 1.65
26 105C0 BALL BEARING (3 X 10 X 4) 13.75
27 10EYR BEARING SPACER 2.75
28 105BP BALL BEARING (5 X 9 X 3) 13.75
30 10TM8 ROLLER CLUTCH 17.05
32 10226 ROLLER CLUTCH INNER TUBE 6.05
33 10D3N STAR DRAG PLATE 2.75
34 106XT STAR DRAG WASHER 6.05
36 10CHE STAR DRAG WASHER 6.05
37 1021K STOPPER GEAR 6.05
39 10JDX SPRING FOR WORM SHAFT GEAR 1.65
40 10HJG WORM SHAFT GEAR PINS 1.65
41 10TQ5 WORM SHAFT GEAR 2.75
42 103N4 FIXING BOLT 1.10
43 109T0 MAIN GEAR SHAFT FIXING PLATE 2.75
45 105NC E TYPE RETAINING RING 2 1.10
46 10FNX WORM SHAFT GEAR 2.75
47 10TPQ WORM SHAFT 9.35
49 10NFW LEVEL-WIND PIPE 1.65
51 104BU CLUTCH YOKE SPRING 1.10
53 103NH FIXING BOLT 1.10
54 10F42 CLUTCH CAM PUSH PLATE 3.85
59 103C0 FIXING BOLT 1.10
60 10G8C WASHER 1.10
62 10FJW LEVEL WINDING RECEIVER 1.65
63 10CFW ADJUSTMENT WASHER SET 1.10
64 10FFU WORM SHAFT PIN 1.65
65 101ZT LEVEL WINDING ASSEMBLY 11.55
66 105NB E TYPE STOP RING 1.5 1.10
67 103DE FIXING BOLT 1.10
68 103KP FIXING BOLT 1.10
70 10PVS FIXING BOLT 1.65
73 1023R FIXING BOLT 1.10
74 10QSD LEVEL WINDING ROD 1.65
75 101WH LINE GUARD 2.75
76 10GA0 WASHER 1.10
78 10BGP CAM LEVER PUSH PLATE 1.65
79 103KS FIXING BOLT 1.10
80 10QW0 SPOOL ASSEMBLY 101.20
81 10GEW BEARING STOPPER 1.10
82 1057S SPOOL SHAFT CONTACT (B) 1.10
83 101S2 BRAKE PIPE GEAR 17.05
84 10LA8 O-RING 1.65
87 108WS O-RING 4 X 6 1.10
88 1028Y FIXING BOLT 6.05
89 108AY B RECEIVING KE ADJUSTING WASHER 1.65
92 10B27 CLICK PIN 1.65
93 10QW8 CLICK PIN 1.10
161 10TPG HANDLE FIXING NUT 6.05
162 1032A HANDLE KNOB 11.55
163 101Y0 HANDLE ASSEMBLY 67.65
164 1021P STAR DRAG 11.55
165 10A76 STAR DRAG SPRING 2.75
166 10A3E STAR DRAG FIXING NUT 2.75
167 10QWD BODY A SET 50.60
168 1021Q DRIVE GEAR 24.75
169 1021J DRIVE GEAR SHAFT 22.55
170 10PVU FIXING BOLT 1.65
171 1021A PINION GEAR 15.95
172 1046U CLUTCH YOKE 1.65
173 10KSC CLUTCH CAM 2.75
174 105ZV CLUTCH CLAW 3.85
175 10N1V CLUTCH CLAW SPRING 1.65
176 10QGG CLUTCH PLATE 4.95
177 10213 LEVEL WIND GUARD 9.35
178 1096R CLUTCH BAR GUIDE (B) 3.85
179 10MWE CLUTCH LEVER 9.35
180 10QWA FRAME 73.15
181 10BAJ BODY B CAM LEVER 2.75
182 10QW9 FRAME B RECEIVER ASSEMBLY 20.35
183 10AZA BR KNOB GEAR 4.95
184 1020U BODY B 39.60
185 10QWE BODY B ASSEMBLY 84.15
BNKI 13WTT EXPLODED VIEW (ACCESSORIES) 1.65
BSM1 1019F BRAKE SHOES *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT *Cannot be ordered 1.10
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VT2 INSTRUCTION MANUAL (ACCESSORY) 1.65
