[SHIMANO] Genuine Spare Parts for 19 SLX MGL 70 XG Product code: 040503 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.79 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3891

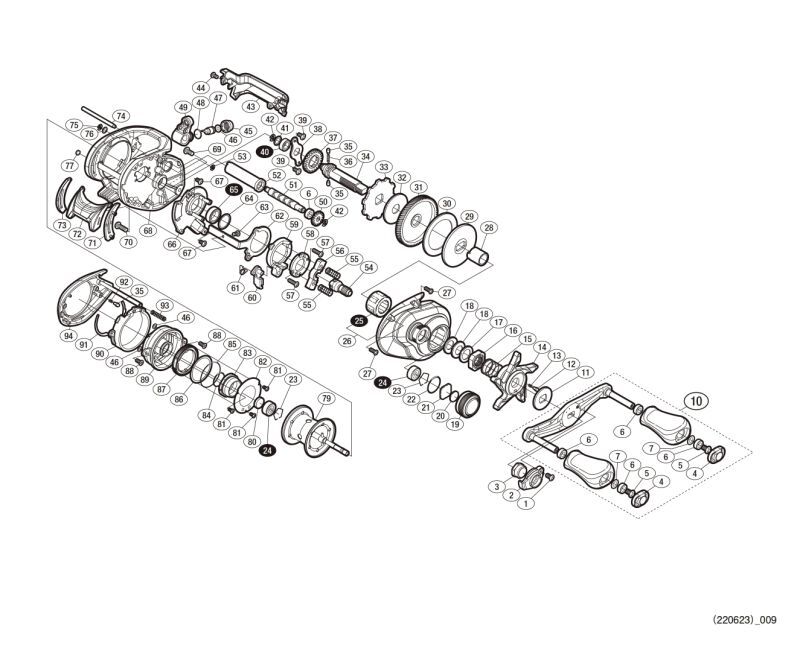

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "25 / ROLLER CLUTCH" and "BSS1 / BRAKE SHOE S", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	101VV	FIXING BOLT	1.10
2	10Q5T	RETAINER	3.85
3	10E67	HANDLE FIXING NUT	6.05
4	10FMM	HANDLE CAP	1.65
5	103E9	FIXING BOLT	1.10
6	10PXZ	HANDLE KNOB BUSH	1.65
7	1003Z	WASHER	2.75
10	13JDV	HANDLE ASSEMBLY	50.60
11	10J22	STAR DRAG CLICK PLATE	1.65
12	10MFC	CLICK PIN	1.65
13	10BT2	CLICK SPRING	1.65
14	100HF	STAR DRAG	11.55
15	10A70	STAR DRAG SPRING	2.75
16	10A3T	STAR DRAG FIXING NUT	3.85
17	10J1N	STAR DRAG SPACER	1.65
18	109F5	DRIVE GEAR WASHER	1.65
19	10050	MECHANICAL BRAKE KNOB	9.35
20	10896	MECHANICAL BRAKE WASHER	1.10
21	1085F	MECHANICAL BRAKE WASHER	1.10
22	10R22	O-RING	1.65
23	1054D	BEARING RETAINING CLIP	1.10
24	105C0	BALL BEARING (3 X 10 X 4)	13.75
25	10F5C	ROLLER CLUTCH BEARING *Cannot be ordered	17.05
26	13HN8	BODY A ASSEMBLY	22.55
27	10LCY	FIXING BOLT	1.10
28	100UC	ROLLER CLUTCH INNER TUBE	6.05
29	10D3H	STAR DRAG PLATE	2.75
30	106XT	STAR DRAG WASHER	6.05
31	10R0D	DRIVE GEAR	22.55
32	10CHF	STAR DRAG WASHER	6.05
33	10D73	STOPPER GEAR	6.05
34	100UP	DRIVE GEAR SHAFT	11.55
35	10HJG	PIN FOR WORM SHAFT GEAR	1.65
36	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
37	101K8	WORM SHAFT GEAR	3.85
38	109T1	FIXING PLATE FOR DRIVE GEAR SHAFT	2.75
39	10E23	FIXING BOLT	1.10
40	105BL	BALL BEARING (5 X 9 X 3)	7.15
41	1003V	WASHER	2.75
42	105NK	E TYPE STOP RING 2.5	1.10
43	13GG8	LEVEL WINDING GUARD	6.05
44	100U4	FIXING BOLT	1.10
45	10FJB	LEVEL WINDING RECEIVER	1.65
46	1003S	WASHER	2.75
47	10BHQ	WORM SHAFT PIN	2.75
48	108WQ	O-RING	1.65
49	10DUG	LEVEL WINDING ASSEMBLY	11.55
50	10SRL	WORM SHAFT GEAR	3.85
51	100U6	WORM SHAFT	6.05
52	100UF	LEVEL WINDING PIPE	1.65
53	105NB	E TYPE STOP RING 1.5	1.10
54	100U7	PINION GEAR	11.55
55	100U9	CLUTCH YOKE SPRING	1.10
56	100UH	CLUTCH YOKE	1.65
57	10LV0	FIXING BOLT	1.10
58	100US	CLUTCH CAM PUSH PLATE	3.85
59	100UK	CLUTCH CAM	2.75
60	10MME	CLUTCH CLAW	3.85
61	10R1H	CLUTCH CLAW SPRING	1.65
62	100UG	CLUTCH PLATE	4.95
63	10LF4	FIXING BOLT	1.10
64	10190	WASHER	1.65
65	10EX6	BALL BEARING (8 X 12 X 3.5)	7.15
66	10DUK	BODY A SEAT	3.85
67	10LCT	FIXING BOLT	1.65
68	100N9	FRAME	34.10
69	100UU	FIXING BOLT	1.10
70	100UV	FIXING BOLT	1.10
71	100MH	CLUTCH BAR GUIDE (B)	1.65
72	100ML	CLUTCH LEVER	1.65
73	100MW	CLUTCH BAR GUIDE (A)	1.65
74	100UT	LEVEL WINDING GUIDE	1.65
75	105NC	E TYPE RETAINING RING 2	1.10
76	10S42	WASHER	2.75
77	10DTF	CLUTCH WASHER	2.75
79	10SY0	SPOOL ASSEMBLY	67.65
80	10EX5	SPOOL SHAFT CONTACT B	1.10
81	10E7R	FIXING BOLT	1.10
82	100HC	BRAKE DIAL FIXING PLATE	3.85
83	10E6U	BRAKE PIPE GEAR	9.35
84	10LA8	O-RING	1.65
85	10CG1	O-RING	1.65
86	10E9M	WASHER	3.85
87	1000Y	BR KNOB	6.05
88	100UL	FIXING BOLT	1.65
89	13FYX	FRAME B RECEIVER ASSEMBLY	17.05
90	100NE	BODY B CAM LEVER	1.65
91	10E6X	CAM LEVER WASHER	3.85
92	10GQZ	CLICK SPRING	1.10
93	10KNH	DAMPER SPRING	1.65
94	10E6T	BODY B ASSEMBLY	11.55
BSS1	13B5A	BRAKE SHOE S *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	1.10
PUNT	13JR3	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	3.85
