  2. > SHIMANO Genuine Parts List: Baitcasting Reels
  3. > 22 SLX DC XT
  4. > [SHIMANO] Genuine Spare Parts for 22 SLX DC XT 71 Product code: 044693 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 SLX DC XT 71 Product code: 044693 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 SLX DC XT 71 Product code: 044693 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.80 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5612

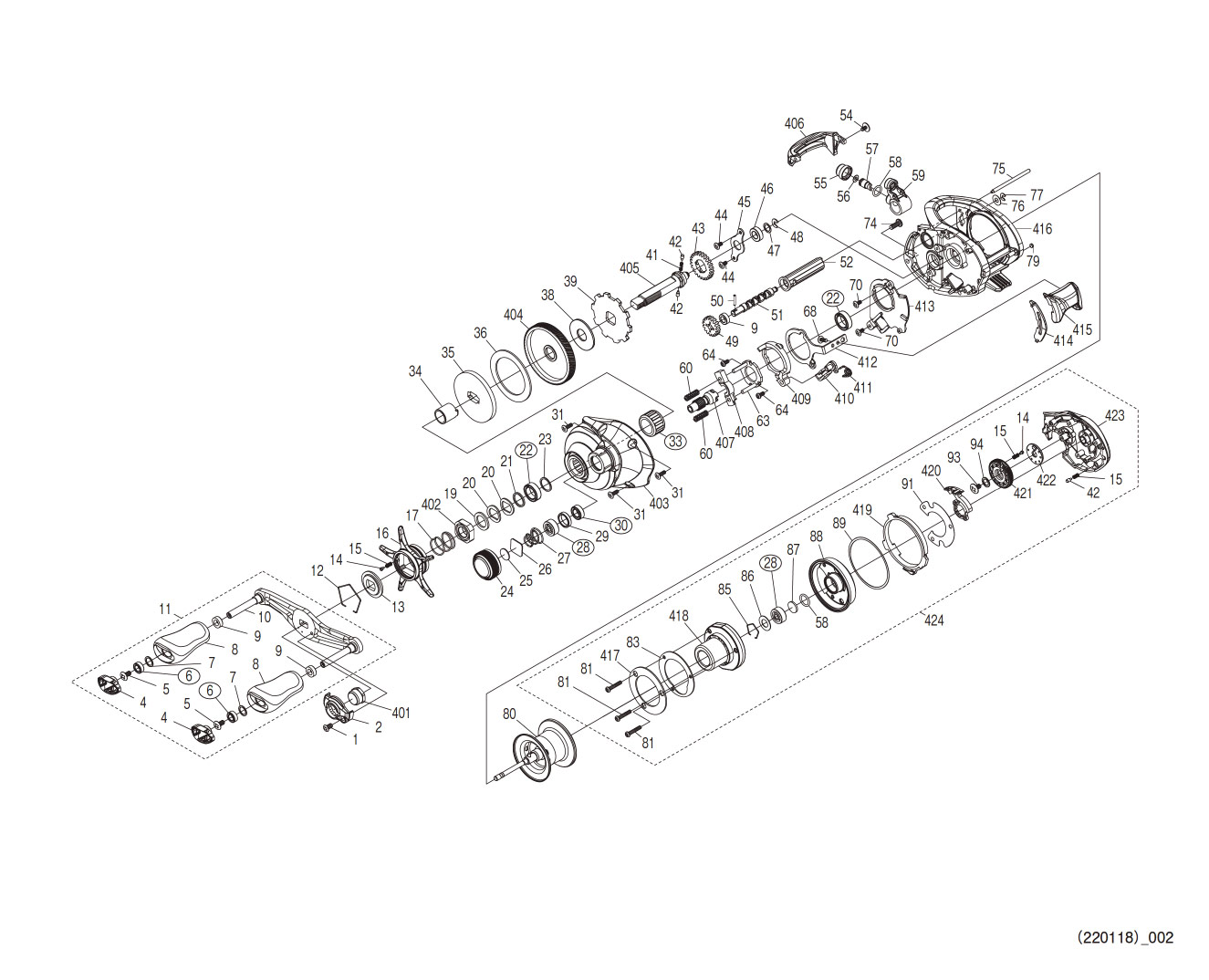

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101VV FIXING BOLT 1.10
2 10SRE RETAINER 3.85
4 1027R HANDLE CAP 2.75
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10DW6 HANDLE KNOB 11.55
9 10PXZ HANDLE KNOB BUSH 1.65
10 101VF HANDLE 22.55
11 10R4N HANDLE ASSEMBLY 67.65
12 10KXW STAR DRAG CLICK PLATE RETAINER 1.65
13 10J26 STAR DRAG CLICK PLATE 1.65
14 10MFC CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 10R4H STAR DRAG 16.50
17 10A70 STAR DRAG SPRING 2.75
19 10J1N STAR DRAG SPACER 1.65
20 109F5 DRIVE GEAR WASHER 1.65
21 100SE WASHER 1.10
22 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
23 10J4K WASHER 1.10
24 10050 MECHANICAL BRAKE KNOB 9.35
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 10TMT MECHANICAL BRAKE LOOSENING STOP SPRING 1.65
28 105C0 BALL BEARING (3 X 10 X 4) 13.75
29 10EYS BEARING SPACER 2.75
30 105BP BALL BEARING (5 X 9 X 3) 13.75
31 10LCY FIXING BOLT 1.10
33 1005E ROLLER CLUTCH *Cannot be ordered 17.05
34 10TFV ROLLER CLUTCH INNER TUBE 11.55
35 100BK STAR DRAG PLATE 2.75
36 106XT STAR DRAG WASHER 6.05
38 1023U STAR DRAG WASHER 6.05
39 10R6Z STOPPER GEAR 6.05
41 10JDY SPRING FOR WORM SHAFT GEAR 1.65
42 10HJG WORM SHAFT GEAR PINS 1.65
43 10J47 WORM SHAFT GEAR 2.75
44 10E8N FIXING BOLT 1.10
45 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
46 10DQF DRIVE GEAR SHAFT BUSHING 1.65
47 10G6D WASHER 1.65
48 105NK E TYPE STOP RING 2.5 1.10
49 10FNV WORM SHAFT GEAR 2.75
50 10AEZ WORM SHAFT PIN 1.10
51 10THG WORM SHAFT 1.10
52 10DGT LEVEL WINDING PIPE 1.10
54 1022E FIXING BOLT 1.65
55 10FJB LEVEL WINDING RECEIVER 1.65
56 10CFU WORM WASHER 1.10
57 10BHQ WORM SHAFT PIN 2.75
58 108WQ O-RING 1.65
59 10NVR LEVEL-WIND ASSEMBLY 9.35
60 10487 CLUTCH YOKE SPRING 1.10
64 10LVE FIXING BOLT 1.10
65 10F3X CLUTCH CAM PUSH PLATE 3.85
68 103C0 FIXING BOLT 1.10
70 10S57 FIXING BOLT 1.65
74 10LFL FIXING BOLT 1.65
75 10QSH LEVEL WINDING GUIDE 1.65
76 10FJZ WASHER 1.10
77 105NC E TYPE RETAINING RING 2 1.10
79 108PY FRAME TALLY WASHER 1.65
80 10DVE SPOOL ASSEMBLY 99.00
81 10E8P FIXING BOLT 1.65
83 101M9 BOARD MOUNTING PLATE 2.75
85 1054D BEARING PULL-OUT STOP 1.10
86 10B94 BEARING SEAL 1.65
87 10EX5 SPOOL SHAFT CONTACT B 1.10
88 101M4 FRAME B RECEIVER 9.35
89 104N5 BODY B CAM LEVER ADJUSTMENT WASHER 1.65
91 108EZ B BEARING ADJUSTMENT WASHER 1.10
93 103LE FIXING BOLT 1.10
94 10GAA CAM LEVER ADJUSTMENT WASHER 1.10
401 10049 HANDLE FIXING NUT 6.05
402 10A3U STAR DRAG FIXING NUT 3.85
403 10SKA BODY A 22.55
404 10DRA DRIVE GEAR 22.55
405 10SYR DRIVE GEAR SHAFT 11.55
406 10SX4 LEVEL WINDING GUARD 2.75
407 10SB0 PINION GEAR 11.55
408 1046W CLUTCH YOKE 1.65
409 10K0P CLUTCH CAM 2.75
410 10MQM CLUTCH CLAW 3.85
411 104CQ CLUTCH CLAW SPRING 1.65
412 10QGJ CLUTCH PLATE 4.95
413 10BVM BODY A SEAT 3.85
414 1096T CLUTCH BAR GUIDE (B) 1.65
415 10SX7 CLUTCH LEVER 3.30
416 1017G FRAME ASSEMBLY 44.00
417 10ST5 BODY B SUBSTRATE SEAL 1.65
418 100HJ BODY B SUBSTRATE ASSEMBLY 112.20
419 10SYQ BODY B CAM LEVER 2.75
420 10QUT MAGNET CAM ASSEMBLY 9.35
421 1017H BRAKE DIAL 6.60
422 10ST4 CLICK SHILLING 1.65
423 10SX5 MAIN UNIT B 11.55
424 10DGE MAIN UNIT B ASSEMBLY 181.50
PUNT 13JRN INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.20
