  4. > [SHIMANO] Genuine Spare Parts for 18 Bantam MGL XG R Product code: 038593 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18 Bantam MGL XG R Product code: 038593 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18 Bantam MGL XG R Product code: 038593 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.83 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3887

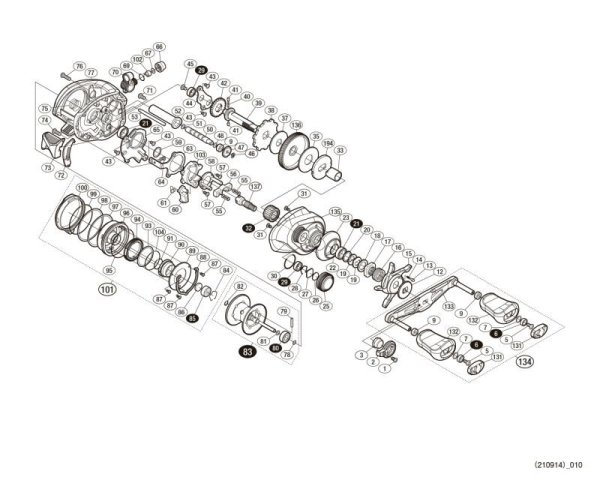

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH" and "79 / SPOOL CLUTCH PIN" and "80 / BALL BEARING" and "BSM1 / BRAKE SHOES", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10R1Q FIXING BOLT 1.65
2 10SSK RETAINER 3.85
3 1007H HANDLE FIXING NUT 6.05
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
9 10PXY HANDLE GRIPPED BUSH (B) 1.65
12 1007F STAR DRAG CLICK PLATE 1.65
13 10B27 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 1006Y STAR DRAG 11.55
16 10A71 STAR DRAG SPRING 2.75
17 10A0B STAR DRAG FIXING NUT 2.75
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 105PW STAR DRAG BEARING WASHER 1.10
21 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
22 1027V O-RING 1.65
23 1001K BODY A NAMEPLATE 13.75
25 10060 MECHANICAL BRAKE KNOB 9.35
26 10896 MECHANICAL BRAKE WASHER 1.10
27 1085F MECHANICAL BRAKE WASHER 1.10
28 1057X STOPPER 1.65
29 105BP BALL BEARING (5 X 9 X 3) 13.75
30 108WK O-RING SM14 1.65
31 1055D FIXING BOLT 1.65
32 1005E ROLLER CLUTCH *Cannot be ordered 17.05
33 10BN3 ROLLER CLUTCH INNER TUBE 6.05
35 1027W STAR DRAG WASHER 9.35
37 10CJ1 STAR DRAG WASHER 3.85
38 10D6Y STOPPER GEAR 6.05
39 10059 DRIVE GEAR SHAFT 22.55
40 10JDX SPRING FOR WORM SHAFT GEAR 1.65
41 10HJG WORM SHAFT GEAR PINS 1.65
42 10057 WORM SHAFT GEAR 2.75
43 10MT4 FIXING BOLT 1.10
44 1005S DRIVE GEAR SHAFT FIXING PLATE 2.75
45 10PVT FIXING BOLT 1.65
46 105NC E TYPE RETAINING RING 2 1.10
47 10FNX WORM SHAFT GEAR 2.75
48 10R3Z WASHER 1.10
50 1006R WORM SHAFT 9.35
51 10GFJ WORM SHAFT GEAR 1.10
52 1005Z LEVEL WINDING PIPE 1.65
53 1006J LEVEL-WIND GUIDE 3.85
55 104BU CLUTCH YOKE SPRING 1.10
56 1046T CLUTCH YOKE 1.65
57 10LVJ FIXING BOLT 1.10
58 10F42 CLUTCH CAM PUSH PLATE 3.85
59 10G8C CLUTCH WASHER 1.10
60 105ZU CLUTCH CLAW 3.85
61 10N1Z CLUTCH CLAW SPRING 1.10
63 10067 CLUTCH PLATE 4.95
64 103C0 FIXING BOLT 1.10
65 1001J BODY A SEAT 3.85
66 10FJB LEVEL WINDING RECEIVER 1.65
67 10CFW ADJUSTMENT WASHER SET 1.10
69 108WQ O-RING 1.65
70 100QL LEVEL WINDING ASSEMBLY 34.10
71 10LZD FIXING BOLT 1.65
72 1000Z CLUTCH BAR GUIDE (B) 1.65
73 10TT2 CLUTCH BAR ASSEMBLY 9.35
74 101GQ FIXING BOLT 1.65
75 10EZE BB PUSH SPRING 1.65
76 103LN FIXING BOLT 1.65
77 100Q8 FRAME ASSEMBLY 123.75
78 10TNF O-RING 1.65
79 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
80 1005D BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
81 10GN1 WASHER 1.10
82 10EZ7 O-RING 1.10
83 10TB0 SPOOL ASSEMBLY (WITH BEARING) 112.20
84 10GEW BEARING PULL-OUT STOPPER 1.10
85 10S37 BALL BEARING (3 X 10 X 4) 13.75
86 1057S SPOOL SHAFT CONTACT (B) 1.10
87 1026U FIXING BOLT 1.65
88 10TUC CAM LEVER RETAINING RING 1.65
89 10TUB BR DIAL FIXING PLATE 3.85
90 10TB6 BRAKE PIPE GEAR ASSEMBLY 17.05
91 10LA8 O-RING 1.65
93 1006Q WASHER 1.65
94 1000Y BR KNOB 6.05
95 108WZ O-RING 3.85
96 10TB8 FRAME B RECEIVER ASSEMBLY 34.10
97 10073 WASHER 1.65
98 10078 O-RING 1.65
99 1006P O-RING 1.65
100 10013 BODY B CAM LEVER 6.05
101 100KB BODY B ASSEMBLY 78.65
102 10211 WORM SHAFT PIN 2.75
103 10SX6 CLUTCH CAM 2.75
104 10CG0 O-RING 19.5 1.65
131 1005A HANDLE CAP 1.65
132 10SSM HANDLE KNOB 11.55
133 100KD HANDLE SHAFT ASSEMBLY 28.05
134 10TTQ HANDLE ASSEMBLY 84.15
135 1005K BODY A 73.15
136 1021M DRIVE GEAR 24.75
137 1006S PINION GEAR 17.05
194 10D3J STAR DRAG PLATE 2.75
BNKI 13WUA EXPLODED VIEW (ACCESSORIES) 1.65
BSM1 1019F BRAKE SHOES *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT *Cannot be ordered 1.10
OIL1 10LQ0 B-100 OIL (4.5 G) 3.85
TRST 13VTF INSTRUCTION MANUAL (ACCESSORY) 1.65
