[SHIMANO] Genuine Spare Parts for 19 VANQUISH 4000XG Product Code: 039637 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.2/ Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/4523

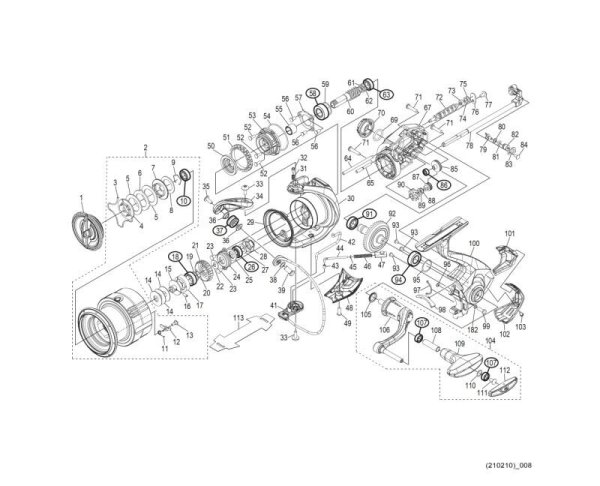

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "53 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13B3S | REEL BAG (ACCESSORY) | 13.75 |
1 | 10EDP | DRAG KNOB ASSEMBLY | 28.05 |
2 | 10T1H | SPOOL ASSEMBLY | 134.75 |
3 | 1006X | STOPPER SPRING | 1.65 |
4 | 10QBY | OVAL WASHER | 9.35 |
5 | 102ZP | DRAG WASHER (A) | 1.65 |
6 | 10BCP | DRAG EAR WASHERS | 6.05 |
7 | 10B9D | DRAG WASHER (A) | 2.75 |
8 | 10C1D | DRAG WASHER | 1.65 |
9 | 10GEW | BEARING PULL-OUT STOPPER | 1.10 |
10 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
11 | 10BQE | SPOOL PIN SPRING | 1.65 |
12 | 10TJX | SPOOL PIN | 1.65 |
13 | 10A6F | FIXING BOLT | 1.65 |
14 | 101AV | SPOOL WASHER (A) | 2.20 |
15 | 10LTS | SPOOL SHAFT BEARING GUIDE | 6.05 |
16 | 10PN2 | SET SCREW | 1.65 |
17 | 10TQH | BEARING COLLAR | 2.75 |
18 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
19 | 10GHN | WASHER | 1.65 |
20 | 107V2 | RATCHET SPRING | 1.65 |
21 | 107PS | DRAG SOUNDING RATCHET | 2.75 |
22 | 103NX | SPOOL RETAINER | 1.65 |
23 | 10T1G | RETAINER FIXING BOLT | 1.10 |
24 | 1076P | RETAINER | 2.75 |
25 | 107F3 | ROTATING FRAME BEARING SEAL | 2.75 |
26 | 103B2 | ROTATING FRAME BEARING COLLAR ASSEMBLY | 17.05 |
27 | 101M1 | RETAINER WASHER | 1.10 |
28 | 1080X | ROTOR NUT | 9.35 |
29 | 10DTJ | ROTOR FLANGE | 6.05 |
30 | 10RJG | ROTOR ASSEMBLY | 56.10 |
31 | 10CGZ | CLICK SPRING | 1.65 |
32 | 106UX | CLICK PIN | 1.65 |
33 | 10SN9 | FIXING BOLT | 1.65 |
34 | 10DTG | ARM CAM | 7.15 |
35 | 10TLJ | FIXING BOLT | 2.75 |
36 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
37 | 101KE | LINE ROLLER (WITH BEARING) ASSEMBLY | 34.10 |
38 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
39 | 10EAP | ARM FIXING SHAFT | 2.75 |
41 | 10RJL | BAIL ASSEMBLY | 45.10 |
42 | 10E0C | BAIL TRIP LEVER | 2.75 |
43 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
44 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
45 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
46 | 10R2P | ARM CAM SPRING | 1.65 |
47 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
48 | 10DTR | BAIL MOUNTING COVER | 9.35 |
49 | 10DT7 | FIXING BOLT | 1.65 |
50 | 101D5 | ROTOR COLLAR | 9.35 |
51 | 10DK7 | FRICTION RING | 3.85 |
52 | 101LH | FIXING BOLT | 1.10 |
53 | 10S2L | ROLLER CLUTCH ASSEMBLY *Cannot be ordered | 12.65 |
54 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
55 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
56 | 10TGX | FIXING BOLT | 1.10 |
57 | 10DJZ | BEARING PUSH PLATE | 2.75 |
58 | 104VF | BALL BEARING (7 X 14 X 5) | 13.75 |
59 | 107JT | FRONT FLANGE BEARING ADJUSTMENT WASHER | 1.10 |
60 | 10E01 | PINION GEAR | 20.35 |
61 | 10053 | BEARING WASHER | 1.65 |
62 | 10GD8 | WASHER | 1.10 |
63 | 104JQ | BALL BEARING (6 X 10 X 3) | 7.15 |
64 | 1006F | SLIDER GUIDE (A) | 3.85 |
65 | 10TC8 | INTERMEDIATE GEAR SHAFT | 3.85 |
67 | 10DTS | BODY | 34.10 |
69 | 108WH | O-RING | 1.65 |
70 | 10E9C | HANDLE SCREW CAP ASSEMBLY | 11.55 |
71 | 100YN | FIXING BOLT | 1.65 |
72 | 1006E | WORM SHAFT | 11.55 |
73 | 10TH6 | BUSH | 3.85 |
74 | 100XZ | WASHER | 2.20 |
75 | 10TK0 | WASHER | 1.65 |
76 | 10ATC | WORM SHAFT COVER | 1.65 |
77 | 10QG5 | FIXING BOLT | 1.10 |
78 | 10RJK | MAIN SHAFT ASSEMBLY | 30.80 |
79 | 106VM | WORM SHAFT PIN | 4.95 |
80 | 100CW | WASHER | 2.20 |
81 | 108W9 | O-RING (3 X 5) | 1.65 |
82 | 1005H | WORM SHAFT PIN COLLAR | 2.75 |
83 | 10HAH | WORM SHAFT PIN PUSH PLATE | 1.65 |
84 | 10MT4 | FIXING BOLT | 1.10 |
85 | 10074 | WORM SHAFT GEAR | 9.35 |
86 | 10PC0 | BALL BEARING (2 X 5 X 2.5) | 13.75 |
87 | 10SM7 | INTERMEDIATE GEAR (S) | 8.25 |
88 | 10TJT | WASHER | 1.65 |
89 | 10G6C | WASHER | 1.10 |
90 | 1006V | INTERMEDIATE GEAR (L) | 9.35 |
91 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
92 | 10E0L | DRIVE GEAR | 28.05 |
93 | 1055G | FIXING BOLT | 1.65 |
94 | 104JD | BALL BEARING(7 X 13 X 4) | 13.75 |
95 | 101AY | WASHER | 2.20 |
96 | 10GA7 | WASHER | 1.10 |
97 | 10DKA | COVER FLANGE SEAL | 2.75 |
98 | 10DJK | BAIL TRIP STRIKE | 1.65 |
99 | 10M2C | FIXING BOLT | 1.10 |
100 | 10RJM | COVER ASSEMBLY | 78.65 |
101 | 10130 | BODY COVER | 9.35 |
102 | 10132 | BODY GUARD | 11.55 |
103 | 10EF0 | FIXING BOLT | 1.65 |
104 | 10QW6 | HANDLE ASSEMBLY | 106.70 |
105 | 10PV4 | HANDLE SHAFT SEAL | 2.75 |
106 | 10RJJ | HANDLE SHANK ASSEMBLY | 78.65 |
107 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
108 | 1022F | KNOB FIXED SHAFT PIPE | 3.85 |
109 | 10R38 | HANDLE KNOB | 17.05 |
110 | 104FH | WASHER | 2.20 |
111 | 103E9 | FIXING BOLT | 1.10 |
112 | 10R3A | HANDLE CAP | 3.85 |
113 | 10PBS | LEG PROTECTION SHEET (ACCESSORY) | 2.75 |
182 | 10J48 | WASHER | 1.10 |
BNKI | 10T5W | EXPLODED VIEW (ACCESSORY) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER STICKER | 1.65 |
MH01 | 10E03 | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
